    The legendary Bell 206B JetRanger III is simply the most successful commercial helicopter ever built. Flying in every type of climate from the artic to the jungles, to the hottest deserts of the worlds. The 206 has accepted, accomplished more missions, has flown more hours and has set (and broken) more industry records than any other aircraft in the world.

    As of 2012, Bell has delivered more than 6,300 Bell 206s, including all its variants, since it began the production in 1967.

    The Bell 206 JetRanger was also built by Agusta in Italy as the AB206 .

    The Bell Model 206 was originally designed to meet the needs of the US Army LOH (Light Observation Helicopter) 1962 competition as the YOH-4

    The 206 was defeated by the Hughes OH-6 but a much-modified derivative, the Bell 206A was found to be a commercial success. The military version was first adopted by the US Navy as the TH-57 Sea Ranger for training purposes. Nevertheless, in 1968 the 206A was selected as the "LOH 2nd Edition" winner and entered into US Army inventory as the OH-58A Kiowa.

    Militarized Bell 206 were adopted by numerous countries, including Australia, Canada ( as CH-136 / CH-139 ) and Mexico.

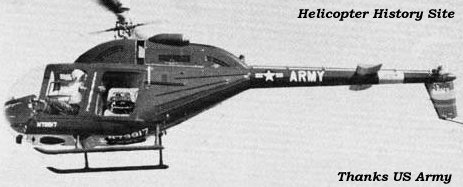

    Bell YOH-4 Bell YOH-4

    The civilian market saw the introduction of upgraded models such as the Bell 206B five-seat version and the Bell 206L LongRanger, a stretched seven-seat variant which added two rear-facing seats in between the front and rear seats.

    The two-engine Bell 206LT Twin Ranger performed first flight in 1990.

    After these success models, Bell introduced in 1994 the Bell 407 a new light four-bladed single engine helicopter and the Bell 427, the twin engine variant, in 1995. With a lengthened fuselage and improved avionics became the Bell 429 in 2004.

    The US Army improved the large Kiowa fleet through the OH-58C to the Bell 406 AHIP (Advanced Helicopter Improvement Program). Named OH-58D Kiowa Warrior, was capable of firing fire-and-forget type missiles such as the Hellfire and introduced the characteristic ball-shaped structure mounted at the top of the rotor.

    In 1993, the US Army awarded Bell the NTH (New Training Helicopter program), a $85 million contract to build 102 new 206B3 as the TH-67 Creek training helicopter to replace the TH-1 Huey at the Fort Rucker aviation school.

    On July 22, 1994 a Speed flight record around the world was set when American Ron Bower on a Bell 206B JetRanger III flew the course taking 24 days with an average speed of 65.97 km/h.

    After the RAH-66 Comanche cancellation, on July 29 2005 Bell was awarded with an US Army contract to build 368 ARH based on the Bell 407/427 and to be known as the ARH-70 Arapaho but excessive delays and growth in program costs forced its cancellation on October 16 2008 when the US Department of Defense failed to certify the program to Congress.

    Functions: Utilily / Observation / Trainer / VIP

    First Flights :

    Bell 206 LOH YOH-4 : 1963
    Bell 206A JetRanger : Jan 10, 1966
    TH-57 / OH-58A: 1968
    OH-58C : 1975
    Bell 406 AHIP OH-58D Kiowa Warrior : 1981
    Bell 406CS Combat Scout : 1988
    TH-67A Creek : 1992
    Bell 407 : 1994
    Bell 427 : 1995
    Bell ARH-70 Arapaho ARH : 2005
    Bell 429 : 2007


    OH-58C Specifications :

    Crew / Load: 2 / 4
    Engines: 1 * 420 hp Allison T-63-A-720
    Top Speed: 220 km/h
    Range: Max.: 490 km
    Ceiling: 5.760 m
    Weight: Empty: 719 kg -- Max: 1451
    Rotor Span: 10.77 m
    Length: 12.49 m
    Height: 2.91 m
    Disc Area: 91.09 m2


    Variants


    OH-58A Kiowa US Army OH-58A Kiowa

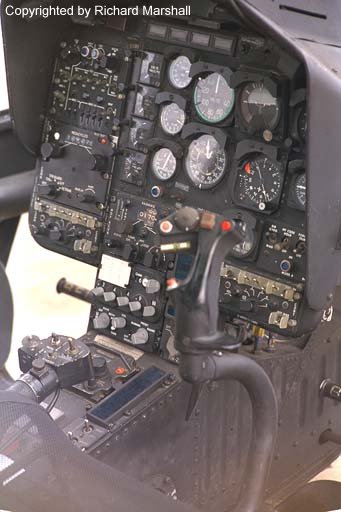

    OH-58A Kiowa Cockpit OH-58A Cockpit

    Helicopter Kiowa C-5 Galaxy

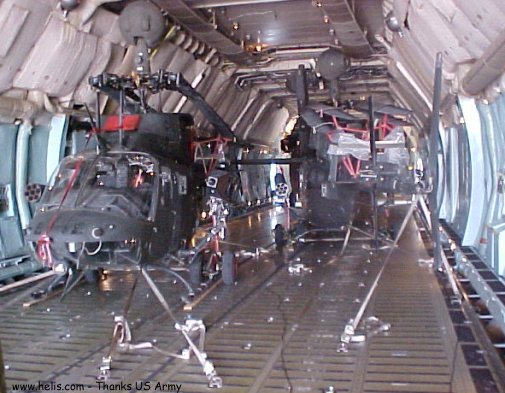

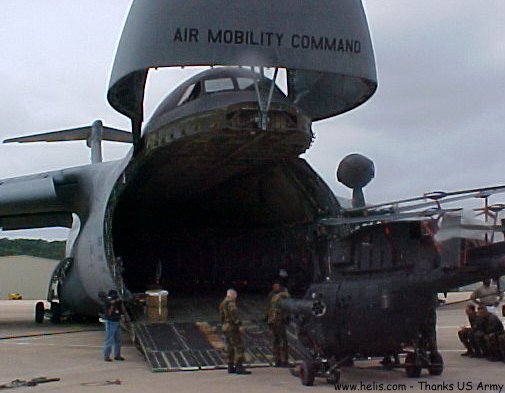

    Helicopter Kiowa C-5 Galaxy OH-58D loading on USAF C-5 Galaxy

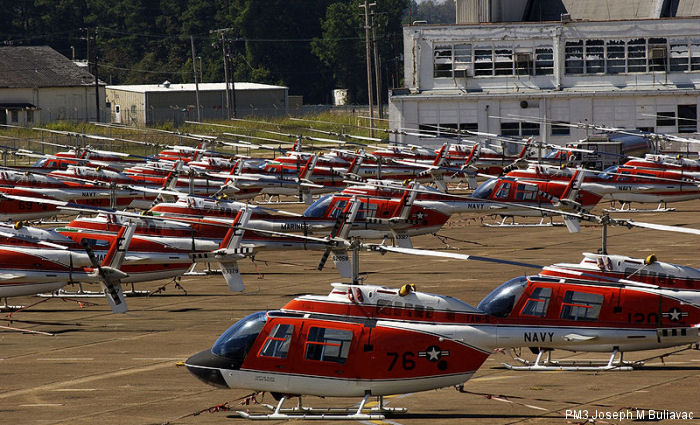

    TH-57 Sea Ranger US Navy TH-57 Sea Ranger


    Bell 206 Bell 206L4


    OH-58D

    Kiowa Warrior
    US Army OH-58D Kiowa Warrior (Bell 406 AHIP)

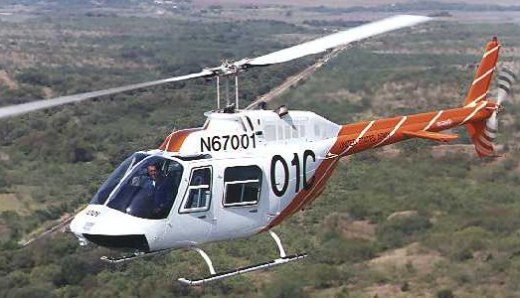

    TH-67 Creek US Army Bell TH-67 Creek

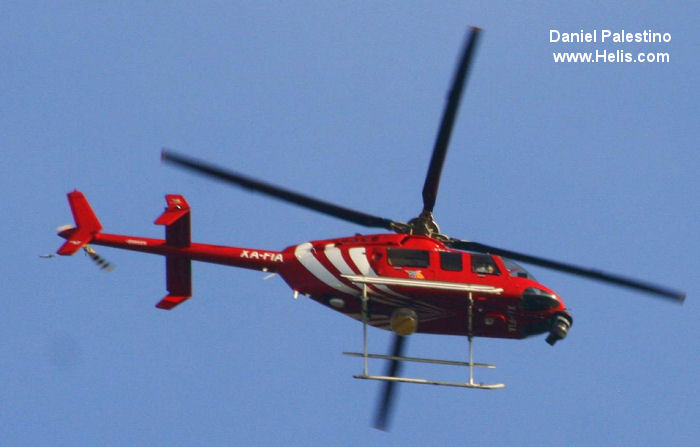

    Bell 407 Bell 407

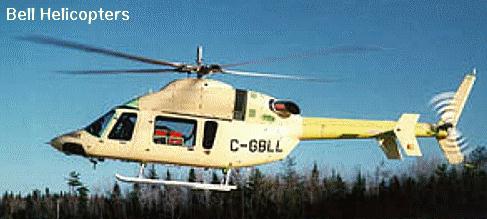

    Bell 427 Bell 427

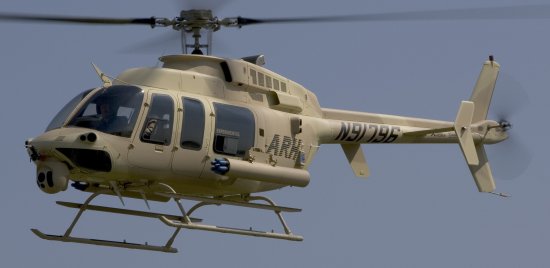

    ARH-70 Arapaho Bell ARH-70 Arapaho (US Army ARH)
