  • AgustaWestland AW159

    The AW159 is a twin engined, naval and utility, multi role helicopter, initially developed as a candidate for the UK Future Lynx competition.

    It has a more stealthy, angular profile and lacks the starboard side, horizontal stabilizer of the Lynx - replacing it by a horizontal stablising tailplane with small vertical fins mounted beneath the rear fuselage unit. The AW159 retains the tricycle landing gear arrangement with steerable nosewheel and long-stroke main undercarriage.

    The AW159 weighs in around 6 tonnes and is powered by two LHTEC CTS800 engines which should deliver a superior hot and high performance over existing Lynx models.

    It was selected in April 2005 as the British Armys Battlefield Reconnaissance Helicopter (BRH) and the Royal Navys replacement Surface Combatant Maritime Rotorcraft (SCMR). Following a June 2006 award of contract by the UK MoD, manufacturing began in autumn 2007.

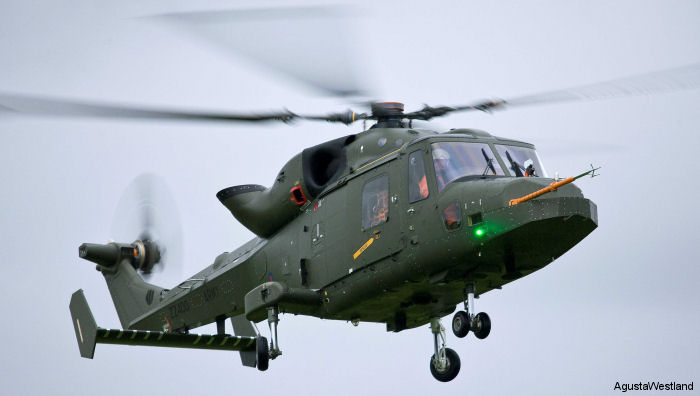

    The new Lynx first flew on November 12, 2009 and is known in British military service as the Lynx Wildcat.
    62nd and final Wildcat for UK MoD delivered on December 2016.

    For AW159 variants see:

    Army Air Corps: Wildcat AH.1
    Fleet Air Arm: Wildcat HMA.2
    South Korea
    Philippines
    Bangladesh

    As of 2019, over 70 have been delivered and logged more than 50,000 flight hours





    Specifications


    Engine: 2 x RR CTS800-4N 1362 shp
    Capacity: 2 + 7
    Length: (m) 15.22
    Height: (m) 3.73
    Blades: 4
    Rotor diam.: (m) 12.8
    Disc area: (m2) 128.71
    Weight: (kgs) Empty: 5790     Max: 6250
    Speed: (km/h)     Max: 291
    Range: (km) 777
    Ceiling: (m)
    Rate/Climb: (m/min)
    blueprints


    List of Operators of AgustaWestland AW159


    From Organisation with model AW159
    2001
    united kingdom AgustaWestland UK
        Lynx 2001/
    2019
    bangladesh Bangladesh Nou Bahini
        2019/

    Construction Numbers on database of AW159

    5aw159




    Construction Numbers

    Help Us

    C/NYearHistory
    462 2009 UK ZZ400
    463 2010 UK ZZ401
    464 2010 UK ZZ402
    469 2011 UK Static
    470 2011 UK Static
    5 C/N.
