Eurocopter AS350 Ecureuil

EC130B4

1999










  • Eurocopter EC130B4
  • Eurocopter EC130B4

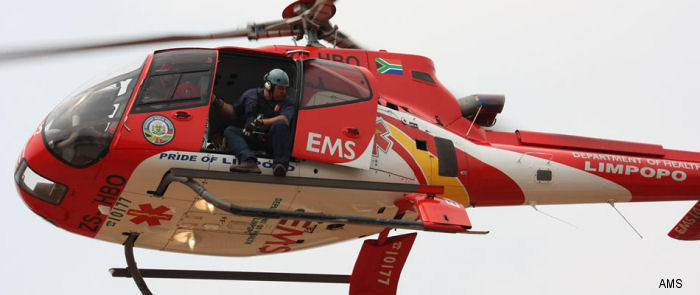

The Eurocopter EC130 B4 ( type certification AS350B4 ) is a wide body variant of the AS350 B3 Ecureuil. Is a hybrid aircraft incorporating components of the EC120 and a Fenestron tailrotor identical to that of the EC135 featuring a larger cabin than previous Ecureuils. Succeeded by EC130 T2




Model News

AirLife Georgia 2 New Base in Habersham, 02-Aug-19 : #ambulance AirLife Georgia 2, part of Air Methods and flying an EC130, announced new base location at Habersham County Airport moving from Northeast Georgia Medical Center (NGMC). Brings critical care in the air services to residents and provides lifesaving care in emergency situations

Single Pole Mount for H130 / EC130, 03-May-19 : Meeker Aviation and Airfilm Camera Systems received Federal Aviation Administration (FAA) supplemental type certificate (STC) for their H130/EC130T2 and the EC130B4 single pole mount to use with any camera or sensor

H130 Flotation System Approved by FAA and EASA, 15-Apr-19 : #flotation DART’ Emergency Float System (EFS) for the EC130B4 and EC130T2/H130 received STC approvals from both Federal Aviation Administration (FAA) and European Aviation Safety Agency (EASA). Canadian certification was granted last year

DART H130 Landing Gear, 07-Mar-19 : Heli-Expo 2019 DART launches its new EC130/H130 landing gear as a direct replacement to OEM parts. Designed to be a plug-and-play option and with an improved alloy offers superior corrosion and cracking resistance

Airbus Crash-Resistant Tank for Legacy AS350/EC130, 06-Mar-19 : Heli-Expo 2019 Airbus developing the crash resistant fuel system (CRFS) for the AS350B3 and EC130B4 complementing existing AS350B3e retrofit. Certification expected for this year

    More News ...


Specifications

Engine: 1 x Safran (Turbomeca) Arriel 2B1 847 shp
Capacity: 1 + 6
Length: (m) 10.68
Height: (m) 3.34
Blades: 3
Rotor diam.: (m) 10.69
Disc area: (m2)
Weight: (kgs) Empty: 1370     Max: 2400
Speed: (km/h) Cruise: 240     Max: 285
Range: (km) 600
Ceiling: (m) 4770
Rate/Climb: (m/min) 540
blueprints
