    MRH90 Taipan

    2007

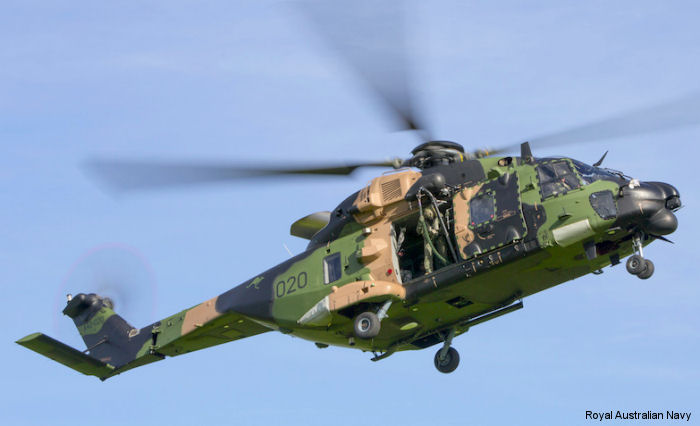

    NH Industries MRH90 Taipan

    The NH90 was selected by the Australian armed forces in 2005 as the MRH90 (Multi Role Helicopter). Initial orders covered 42 aircraft which reached 47 in 2013 to be divided between the Army and Navy. Locally assembled by Australian Aerospace ( then an Eurocopter subsidiary, now part of Airbus ) in Brisbane.

    Like with the other users, the Australian NH90 suffered a delayed active deployment but the combine fleet achieved 30,000 flight hours by April 2018.







    Specifications


    Engine: 2 x RR RTM322 2200 shp
    Capacity: 2 + 20
    Length: (m) 16.13
    Height: (m) 5.23
    Blades: 4
    Rotor diam.: (m) 16.3
    Disc area: (m2) 208
    Weight: (kgs) Empty: 6400     Max: 10600
    Speed: (km/h)     Max: 300
    Range: (km) 800
    Ceiling: (m) 6000
    Rate/Climb: (m/min) 480
    blueprints


    List of Operators of NH Industries MRH90 Taipan


    From Organisation with model MRH90 Taipan
    1995
    france Eurocopter France
        NH90 1995/13
    2005
    australia Australia Pacific
        2005/13
    2009
    australia Fleet Air Arm (RAN)
        2009/
    australia Australian Army Aviation
        2009/
    Construction Numbers on database of MRH90 Taipan

    45mrh90
