  • Mil Mi-2 Hoplite

    Derived from Mi-1 Hare
    1961










    • Mil Mi-2 Hoplite
    • Mil Mi-2 Hoplite

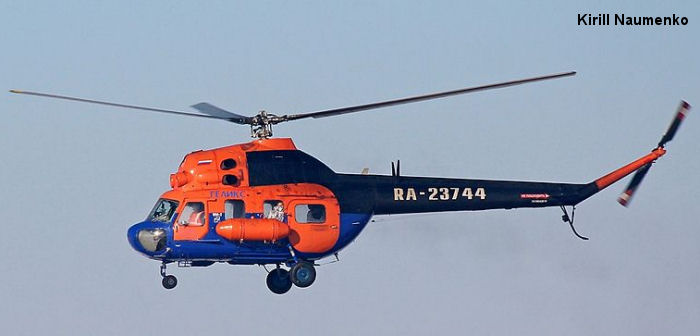

    The Mi-2, although designed by the Soviet Mil Bureau and based on the previous Mil Mi-1 but powered by turbine engines, was produced exclusively in Poland by PZL-Swidnik. More than 7,000 were built between 1965 and 1985.




    Specifications


    Engine: 2 x Isotov GTD-350 400 shp
    Capacity: 1 + 8
    Length: (m) 11.4
    Height: (m) 3.75
    Blades: 3
    Rotor diam.: (m) 14.5
    Disc area: (m2) 166.4
    Weight: (kgs) Empty: 2370     Max: 3700
    Speed: (km/h)     Max: 200
    Range: (km) 450
    Ceiling: (m) 4000
    Rate/Climb: (m/min) 270

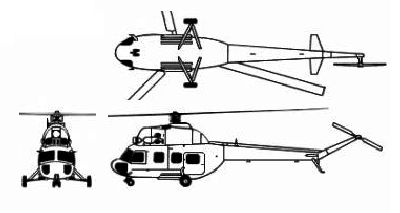

    blueprints


    Derivatives & Versions


    ModelYearHistory
    mi-2d
    mi-2r
    mi-2tsz
    mi-2urp
    mi-2ch 1977
    PZL Kania 1979
