Schweizer 269C / 300

Derived from Hughes 269
1983









269C / 300
Schweizer built license Hughes 269/300 from 1983 until 1986 when they became a pure Schweizer product

In 2004 Schweizer was bought by Sikorsky


Model News


Schweizer 269C Refurbishment In Pakistan, 14-Sep-17 : Oceania Aviation complete training of the Pakistan Army Aviation school for refurbishing the Schweizer 269C/S300 helicopters

R44/S300 Simulators for China Flying Dragon Aviation, 08-Apr-16 : China Flying Dragon General Aviation Co ordered two Frasca Flight Training Devices (FTDs) simulators convertible between the Schweizer S300 and the Robinson R44 helicopters

Oceania Aviation to Train Pakistan on the S300C, 17-Mar-16 : New Zealand Oceania Aviation sign agreement for training and development of Pakistani engineers in overhaul and servicing of parts for the Sikorsky (Schweizer) S300C helicopter


Specifications


Engine: 1 x Lycoming HIO-360-D1A 190shp
Capacity: 1 + 2
Length: (m) 9.4
Height: (m) 2.7
Blades: 3
Rotor diam.: (m) 8.2
Disc area: (m2) 52.8
Weight: (kgs) Empty: 500     Max: 930
Speed: (km/h) Cruise: 159     Max: 176
Range: (km) 360
Ceiling: (m)
Rate/Climb: (m/min) 229

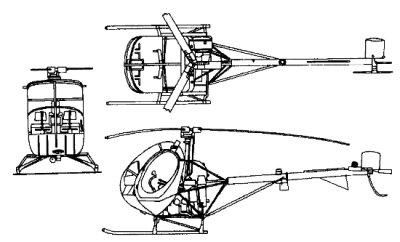

blueprints

Derivatives & Versions


ModelYearHistory
Breda Nardi NH300C
300C 1983
330 (269D) 1987
300CB 1993
300CBi (269C-1) 1995
N-G MQ-8A/B Fire Scout 2000 An unmanned autonomous helicopter developed for the US Armed Forces to be used in the reconnaissance and targeting support roles. The initial ver ...
AVIC AC310 2011 First unveil at the Chinese Helicopter Expo in Tianjin on September 2011
