  • 1983

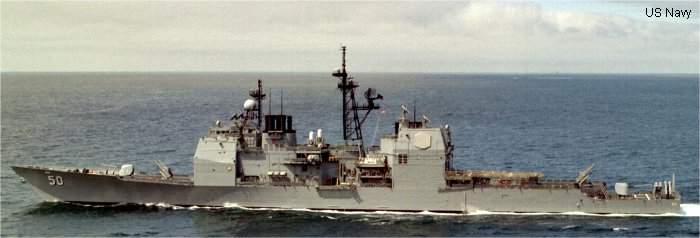

    Guided-Missile Cruiser Ticonderoga class

    Originally designated as destroyers, were reclassified as cruisers before laid down. They were the first ships to carry the Aegis combat system for wide-area air defense

        Derivatives / Succeeded by
    US Ticonderoga VLS class 1986


    Specifications

    Login to Edit


    400crew
    9600full load (tn)
    173length (m)
    16.80beam (m)
    10.20draught (m)
    6000range (nm)
    32max speed (knots)
    4Naval Engine gas turbine - General Electric LM2500
    2Naval Engine propulsion system: COGOG
    2Missile Launcher Mk 141 quad Harpoon
    2Missile Launcher Mk 26
    2Naval Gun Mark 45 5/54 inch (127mm)
    2Close-In Weapon System CIWS Phalanx 20 mm
    2Torpedo Launchers Mk 32 triple-tube 324mm
    1Naval Radar air search radar AN/SPY-1 AEGIS

    Aircraft

    Login to Edit

        Typical Max
    US United States Naval Aviation Sikorsky S-70 H-60 12


    The Max option implies only aircraft of this model onboard

    Shipyards

    Login to Edit


    US Bath Iron Works - 1
    US Ingalls Shipbuilding - 4


    List of Ships

    Login to Edit

        Sorted by Year Filter:     Hide Transfers     Hide deriv.
    USUS NavyCG-47USS TiconderogaNTIC19832004
    USUS NavyCG-48USS YorktownNYKN19842004
    USUS NavyCG-49USS VincennesNVIN19852005
    USUS NavyCG-50USS Valley ForgeNVFP19862004
    USUS NavyCG-52Ticonderoga VLS class USS Bunker HillNNBH1986--
    USUS NavyCG-51USS Thomas S. GatesNTSG19872005
    USUS NavyCG-53Ticonderoga VLS class USS Mobile BayNMOB1987--
    USUS NavyCG-54Ticonderoga VLS class USS AntietamNATM1987--
    USUS NavyCG-55Ticonderoga VLS class USS Leyte GulfNLEG1987--
    USUS NavyCG-56Ticonderoga VLS class USS San JacintoNJAC1988--
    USUS NavyCG-57Ticonderoga VLS class USS Lake ChamplainNCPN1988--
    USUS NavyCG-58Ticonderoga VLS class USS Philippine SeaNWIN1989--
    USUS NavyCG-59Ticonderoga VLS class USS PrincetonNDIH1989--
    USUS NavyCG-60Ticonderoga VLS class USS NormandyNVVV1989--
    USUS NavyCG-62Ticonderoga VLS class USS ChancellorsvilleNCVL1989--
    USUS NavyCG-61Ticonderoga VLS class USS MontereyNRAR1990--
    USUS NavyCG-63Ticonderoga VLS class USS CowpensNCOW1991--
    USUS NavyCG-64Ticonderoga VLS class USS GettysburgNGTB1991--
    USUS NavyCG-65Ticonderoga VLS class USS ChosinNCHO1991--
    USUS NavyCG-66Ticonderoga VLS class USS Hue CityNHUE1991--
    USUS NavyCG-67Ticonderoga VLS class USS ShilohNSLH1992--
    USUS NavyCG-68Ticonderoga VLS class USS AnzioNZIO1992--
    USUS NavyCG-69Ticonderoga VLS class USS VicksburgNVMS1992--
    USUS NavyCG-70Ticonderoga VLS class USS Lake ErieNCDP1993--
    USUS NavyCG-71Ticonderoga VLS class USS Cape St. GeorgeNCSG1993--
    USUS NavyCG-72Ticonderoga VLS class USS Vella GulfNVLA1993--
    USUS NavyCG-73Ticonderoga VLS class USS Port RoyalNPTR1994--

    27 units


    Events

    Login to Edit

    1978-sep-22OrderedUS CG-47 USS Ticonderoga as DDG-47
    1980-jan-21Laid downUS CG-47 USS Ticonderoga
    1980-apr-28OrderedUS CG-48 USS Yorktown as DDG-48
    1981-apr-25LaunchedUS CG-47 USS Ticonderoga
    1981-aug-28OrderedUS CG-49 USS Vincennes as DDG-49
    1981-aug-28OrderedUS CG-50 USS Valley Forge as DDG-50
    1981-oct-19Laid downUS CG-48 USS Yorktown
    1982-may-20OrderedUS CG-51 USS Thomas S. Gates
    1982-oct-19Laid downUS CG-49 USS Vincennes
    1983-jan-17LaunchedUS CG-48 USS Yorktown
    1983-jan-22CommissionedUS CG-47 USS Ticonderoga
    1983-apr-14Laid downUS CG-50 USS Valley Forge
    1984-apr-14LaunchedUS CG-49 USS Vincennes
    1984-jun-23LaunchedUS CG-50 USS Valley Forge
    1984-jul-4CommissionedUS CG-48 USS Yorktown
    1984-aug-31Laid downUS CG-51 USS Thomas S. Gates
    1985-jul-6CommissionedUS CG-49 USS Vincennes
    1985-dec-14LaunchedUS CG-51 USS Thomas S. Gates
    1986-jan-18CommissionedUS CG-50 USS Valley Forge
    1987-aug-22CommissionedUS CG-51 USS Thomas S. Gates
    1988-jul-3AircraftUS CG-49 USS Vincennes shot down Airbus A300 Iran Air Flight 655 over the Strait of Hormuz during an attack by Iranian surface vessels, believing it to be an inbound hostile
    1991-febDeploymentUS CG-50 USS Valley Forge Operation Desert Shield/Storm Relieved the USS Princeton after she was damaged by two mines in the Persian Gulf
    1999-oct-9DeploymentUS CG-50 USS Valley Forge San Francisco Fleet Week 1999 Present for Fleet Week 1999. HSL-49 SH-60B 162109 / 102 embarked.
    2004-aug-30DecommissionedUS CG-50 USS Valley Forge
    2004-aug-30StruckUS CG-50 USS Valley Forge
    2004-sep-30DecommissionedUS CG-47 USS Ticonderoga
    2004-sep-30StruckUS CG-47 USS Ticonderoga inactive at Naval Station Pascagoula
    2004-dec-10DecommissionedUS CG-48 USS Yorktown
    2004-dec-10StruckUS CG-48 USS Yorktown inactive at Naval Station Pascagoula
    2005-jun-29DecommissionedUS CG-49 USS Vincennes
    2005-jun-29StruckUS CG-49 USS Vincennes inactive at Naval Base Kitsap
    2005-dec-15DecommissionedUS CG-51 USS Thomas S. Gates
    2005-dec-15StruckUS CG-51 USS Thomas S. Gates
    2006Fate: sunkUS CG-50 USS Valley Forge as target near Kauai, Hawaii
