  • 1964

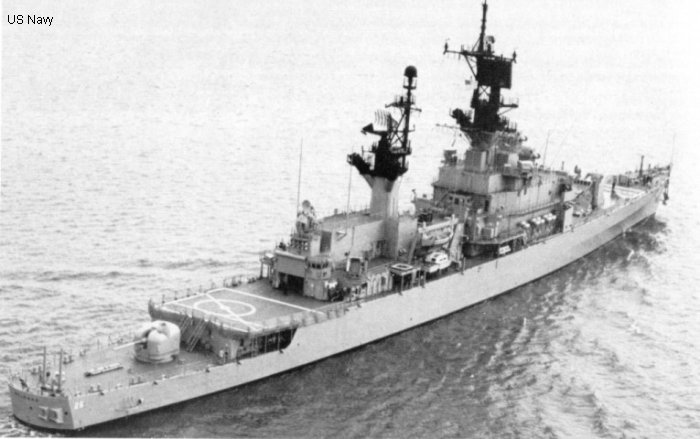

    Guided-Missile Cruiser Belknap class

    The next generation of DLG frigates have a single missile launcher (for both SAM Terrier and ASW ASROC) in order to leave space to add an hangar. Reclassified as guided cruisers in 1975 and reffited with Harpoons/Standards and CIWS Phalanx in the 1980s

        Derivatives / Succeeded by
    US CGN Truxtun class 1967
                            US CGN California class 1974
                                                    US CGN Virginia class 1976


    Specifications

    Login to Edit


    477crew
    7900full load (tn)
    167length (m)
    17beam (m)
    8.80draught (m)
    32max speed (knots)
    4Naval Engine boilers
    2Naval Engine steam turbines
    1Missile Launcher Mk 10 Terrier
    1Naval Gun Mark 42 5/54 inch (127mm)

    Aircraft

    Login to Edit

        Typical Max
    US United States Naval Aviation Gyrodyne DSN / QH-50 DASH 01
    US United States Naval Aviation Kaman Seasprite 11

    The Max option implies only aircraft of this model onboard

    Shipyards

    Login to Edit


    US Bath Iron Works - 5
    US Bethlehem San Francisco - 1
    US Puget Sound Bridge and Dredging Company - Harbor Island2
    US Todd Pacific Shipyards, San Pedro - 1


    List of Ships

    Login to Edit

        Sorted by Year Filter:     Hide Transfers     Hide deriv.
    USUS NavyCG-26USS Belknap19641995
    USUS NavyCG-27USS Josephus Daniels19651994
    USUS NavyCG-28USS WainwrightNGHX19661993
    USUS NavyCG-29USS JouettNZTV19661994
    USUS NavyCG-32USS William H. StandleyNWHS19661994
    USUS NavyCG-33USS FoxNFOX19661994
    USUS NavyCG-30USS HorneNBXW19671994
    USUS NavyCG-31USS SterettNUKJ19671994
    USUS NavyCG-34USS BiddleNMYE19671993
    USUS NavyCGN-35Truxtun class USS Truxtun19671995
    USUS NavyCGN-36California class USS CaliforniaNKIN19741999
    USUS NavyCGN-37California class USS South CarolinaNLVQ19751999
    USUS NavyCGN-38Virginia class USS Virginia19761994
    USUS NavyCGN-39Virginia class USS TexasNTEX19771993
    USUS NavyCGN-40Virginia class USS MississippiNGGD19781997
    USUS NavyCGN-41Virginia class USS ArkansasNARK19801998

    16 units


    Events

    Login to Edit

    1962-feb-5Laid downUS CG-26 USS Belknap as DLG-26
    1962-apr-23Laid downUS CG-27 USS Josephus Daniels
    1962-jul-2Laid downUS CG-28 USS Wainwright
    1962-sep-25Laid downUS CG-29 USS Jouett
    1962-sep-25Laid downUS CG-31 USS Sterett
    1962-dec-12Laid downUS CG-30 USS Horne
    1963-jan-15Laid downUS CG-33 USS Fox
    1963-jul-20LaunchedUS CG-26 USS Belknap
    1963-jul-29Laid downUS CG-32 USS William H. Standley
    1963-dec-2LaunchedUS CG-27 USS Josephus Daniels
    1963-dec-9Laid downUS CG-34 USS Biddle
    1964-apr-25LaunchedUS CG-28 USS Wainwright
    1964-jun-30LaunchedUS CG-29 USS Jouett
    1964-oct-30LaunchedUS CG-30 USS Horne
    1964-nov-7CommissionedUS CG-26 USS Belknap
    1964-nov-21LaunchedUS CG-33 USS Fox
    1964-dec-19LaunchedUS CG-32 USS William H. Standley
    1965-may-8CommissionedUS CG-27 USS Josephus Daniels as DLG-27
    1965-jun-30LaunchedUS CG-31 USS Sterett
    1965-jul-2LaunchedUS CG-34 USS Biddle
    1966-jan-8CommissionedUS CG-28 USS Wainwright as DLG-28
    1966-may-8CommissionedUS CG-33 USS Fox as DLG-33
    1966-jul-9CommissionedUS CG-32 USS William H. Standley as DLG-32
    1966-dec-3CommissionedUS CG-29 USS Jouett as DLG-29
    1967-jan-21CommissionedUS CG-34 USS Biddle as DLG-34
    1967-apr-8CommissionedUS CG-31 USS Sterett as DLG-31
    1967-apr-15CommissionedUS CG-30 USS Horne as DLG-30
    1971AircraftUS CG-33 USS Fox YSH-2E prototype trials at San Diego
    1973-marAircraftUS CG-31 USS Sterett SH-2D 152198 from HSL-31 Det.1 accident between Guam and the Philippines
    1974-oct-4US CG-32 USS William H. Standley Towed the USS Vreeland (FF-1068) in the MED due to serious boiler trouble
    1975US CG-33 USS Fox Westpac 75-76
    1975-jun-30US CG-26 USS Belknap reclassified as CG-26
    1975-jun-30US CG-27 USS Josephus Daniels reclassified as CG-27
    1975-jun-30US CG-28 USS Wainwright reclassified as CG-28
    1975-jun-30US CG-29 USS Jouett reclassified as CG-29
    1975-jun-30US CG-30 USS Horne reclassified as CG-30
    1975-jun-30US CG-31 USS Sterett reclassified as CG-31
    1975-jun-30US CG-32 USS William H. Standley reclassified as CG-32
    1975-jun-30US CG-33 USS Fox reclassified as CG-33
    1975-jun-30US CG-34 USS Biddle reclassified as CG-34
    1975-nov-22US CG-26 USS Belknap Severely damaged in a collision with aircraft carrier USS John F. Kennedy off the coast of Sicily, Italy. The following fire melted, burned and gutted to the deck level her aluminum superstructure
    1976-jan-30RefitUS CG-26 USS Belknap reconstruction at Philadelphia Navy Yard up to 10may80
    1977-mar-10AircraftUS CG-31 USS Sterett SH-2 Sea Sprite crashed in the mid-Pacific approaching the cruiser during routine flight operations, detachment of HSL-33
    1978US CG-33 USS Fox WestPac
    1980US CG-33 USS Fox WestPac 80-81
    1987RefitUS CG-34 USS Biddle air search radar ITT Gilfillan AN/SPS-48E early 1987 refit as first of the NTU upgrades to the AN/SPS-48 long range, 3D air search and targetting radar
    1990US CG-34 USS Biddle with a seasprite onboard during Operation Desert Shield
    1991-novDeploymentUS CG-33 USS Fox WestPac 92, SH-2F HSL-35 Det.4 161899
    1993-nov-15DecommissionedUS CG-28 USS Wainwright
    1993-nov-30DecommissionedUS CG-34 USS Biddle
    1994-jan-22DecommissionedUS CG-27 USS Josephus Daniels
    1994-jan-28DecommissionedUS CG-29 USS Jouett
    1994-feb-4DecommissionedUS CG-30 USS Horne
    1994-feb-11DecommissionedUS CG-32 USS William H. Standley
    1994-mar-24DecommissionedUS CG-31 USS Sterett
    1994-apr-15DecommissionedUS CG-33 USS Fox
    1995Fate: scrappedUS CG-33 USS Fox
    1995-feb-15DecommissionedUS CG-26 USS Belknap
    1995-dec-15StruckUS CG-26 USS Belknap
    1998-sep-24Fate: sunkUS CG-26 USS Belknap as a target
    1999Fate: scrappedUS CG-27 USS Josephus Daniels Brownsville, Texas
    2000-dec-4Fate: scrappedUS CG-34 USS Biddle Metro Marine Corporation, Philadelphia
    2002Fate: sunkUS CG-28 USS Wainwright as a target
    2005-jun-25Fate: sunkUS CG-32 USS William H. Standley as a target with Elliot (DD-967) off the eastern coast of Australia during Talisman Sabre exercise
    2005-jul-29Fate: scrappedUS CG-31 USS Sterett Brownsville, Texas
    2007-augFate: sunkUS CG-29 USS Jouett target during Operation Valiant Shield 2007
    2008Fate: sunkUS CG-30 USS Horne as a target
