  • FF-07 Almirante Lynch

    CL Chilean Navy

    1997 to 2006 - UK Royal Navy - F80 HMS Grafton



    2007 to present

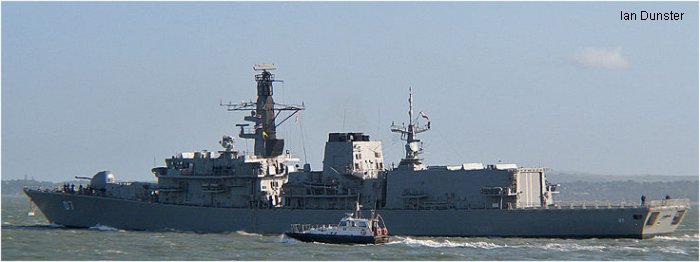

    FF-07 Almirante Lynch

    Data

    Login to Edit

    IMO:
    MMSI:
    Flight Deck:
    Call Sign: CCLY
    See Also: FF Condell class PFG-07


    Events

    Help Us

    Add new event for this unit
    Year:
    Month: <- (1/12) Optional
    Day: <- (1/31) Optional
    Text:

    Add Event

    History of UK F80 HMS Grafton

    1992-janOrdered
    1993-may-13Laid downYard No 1044
    1994-nov-5Launched
    1997-febTrialsHosted deck handling trials for EH101 programme
    1997-may-29Commissioned
    1998-marAircraftassigned 815 Sq Lynx HAS.3 ZD256/347-GT
    1998-aprDeploymentdeparted HMNB Portsmouth for 8 month Middle and Far East deployment. Returned Dec 1998.
    1998-sep-23DeploymentSGsingapore strait Lynx ZD256 accident
    1999-mayDeploymentpart of FS Foch Task Group in Adriatic, off Kosovo
    2000-sep-11DeploymentAccident hit submerged rocks in a fjord near Droebak, outside Oslo while heading for the open sea. Was part of NATO STANVFORLANT flotilla visiting Oslo 9-11 Sep.
    2001-aug-24Port VisitUKHMNB Portsmouth IFoS 2001 International Festival of Sea 2001 Present at IFoS Portsmouth.
    2003-sep-9Port VisitUKRoyal Albert Dock DSEI 2003 visited Royal Albert Dock, London for the DSEI 2003 exhibition at the ExCel Centre 9-12 Sep
    2004Deployment Armilla Patrol early 2004
    2005-jul-7Port Visitto Ipswich. Entry to port escorted by 4 Lynx and 2 Gazelle from AAC Wattisham.
    2006-mar-31Decommissionedfollowing Jul 2004 announcement by UK MoD to reduce Type 23 fleet to 13 vessels. Ships Bell to Ipswich Council offices
    2007-marFate: transferedtransferred to Chilean Navy, following an agreement in Sep 2005.

    History of CL FF-07 Almirante Lynch

    2007-mar-28Commissioned
    2007-mar-28Handed over to Chilean Navy at HMNB Portsmouth as part of Project Puente to renew its surface fleet
    2018-dec-4DeploymentValparaíso Chilean Navy 200th anniversary ExpoNaval 2018 At ExpoNaval 2018 in Valparaiso
    2022-jun-29NEWS Canadian CH-148 Landed on Chilean Warship

    Specifications



        from Type 23 Duke class
    180crew
    3600light (tn)
    4200full load (tn)
    133length (m)
    16.10beam (m)
    5.50draught (m)
    7800range (nm)
    28max speed (knots)
    4Naval Engine diesel - Paxman Valenta 12CM
    2Naval Engine electric motors
    2Naval Engine gas turbine - Rolls Royce Spey
    2Naval Engine propulsion system: CODLAG
    2Missile Launcher Mk 141 quad Harpoon
    1Missile Launcher Sea Wolf
    2Naval Gun single 30 mm
    1Naval Gun Mk.8 Mod 1 4.5 inch
    4Chaff and decoys Seagnat
    1Chaff and decoys towed decoy Type 182
    1Chaff and decoys towed decoy Type 2070 Talisman
    2Naval Radar fire direction radar Type 911
    1Naval Radar navigation radar Type 1007
    1Naval Radar surface and low level air search radar Type 996
    1Sonar towed array sonar Type 2031
    1Sonar hull mounted sonar Type 2050
