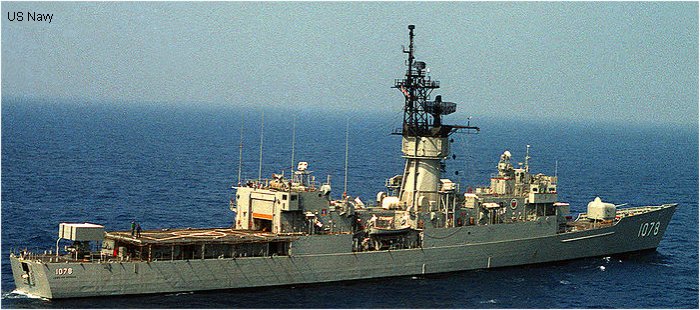

FF-1078 USS Joseph Hewes

US US Navy

1999 to present - TW ROCN - Chi Yang class FF-935 ROCS Lan Yang



1971 to 1994


FF-1078 USS Joseph Hewes

Data

Login to Edit

Flight Deck:
Call Sign: NELP


Events

Help Us

Add new event for this unit
Year:
Month: <- (1/12) Optional
Day: <- (1/31) Optional
Text:

Add Event

History of US FF-1078 USS Joseph Hewes

1966-aug-25Ordered
1969-may-14Laid down
1970-mar-7Launched
1971-apr-24Commissioned
1994-jun-30Decommissioned
1999-sep-29Fate: transferedto Taiwan as Lan Yang

History of TW Chi Yang class FF-935 ROCS Lan Yang

1999-sep-29Commissioned

Specifications



    from Knox class
257crew
4260full load (tn)
134length (m)
14.25beam (m)
7.54draught (m)
28max speed (knots)
35000power (shp)
2Naval Engine boilers
1Naval Engine steam turbines
1Missile Launcher Mk 25 8-cell Sea Sparrow
1Naval Gun Mark 42 5/54 inch (127mm)
1Torpedo Launchers Mk 16 8-cell ASROC
4Torpedo Launchers single tube 324 mm
1Naval Radar air search radar AN/SPS-40
1Naval Radar surface search radar AN/SPS-67
1Sonar hull mounted sonar AN/SQS-26
1Sonar towed array sonar AN/SQR-18

Aircraft



    Typical Max
US United States Naval Aviation Kaman Seasprite 11


The Max option implies only aircraft of this model onboard

Builder



US Avondale Shipyard,
