  • F-85 Navarra

    ES Spanish Navy




    1994 to present

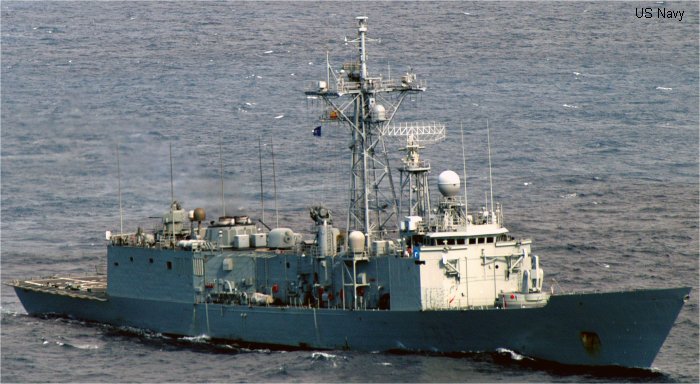

    F-85 Navarra

    Data

    Login to Edit

    IMO:
    MMSI: 224972000
    Flight Deck:
    Call Sign: EBFP


    Events

    Help Us

    Add new event for this unit
    Year:
    Month: <- (1/12) Optional
    Day: <- (1/31) Optional
    Text:

    Add Event

    History of ES F-85 Navarra

    1991-apr-15Laid down
    1992-oct-23Launched
    1994-may-27Commissioned
    2001-aug-24Port VisitUKHMNB Portsmouth IFoS 2001 International Festival of Sea 2001 Present at IFoS Portsmouth.

    Specifications



        from Santa Maria class
    176crew
    2850light (tn)
    3600full load (tn)
    138length (m)
    14.30beam (m)
    8.60draught (m)
    4500range (nm)
    29max speed (knots)
    41000power (shp)
    2Naval Engine gas turbine - General Electric LM2500
    1Missile Launcher Mk 13
    1Naval Gun Oto Melara 76 mm
    1Close-In Weapon System Meroka
    2Torpedo Launchers Mk 32 triple-tube 324mm
    1Naval Radar air search radar AN/SPS-49
    1Naval Radar surface search radar AN/SPS-55

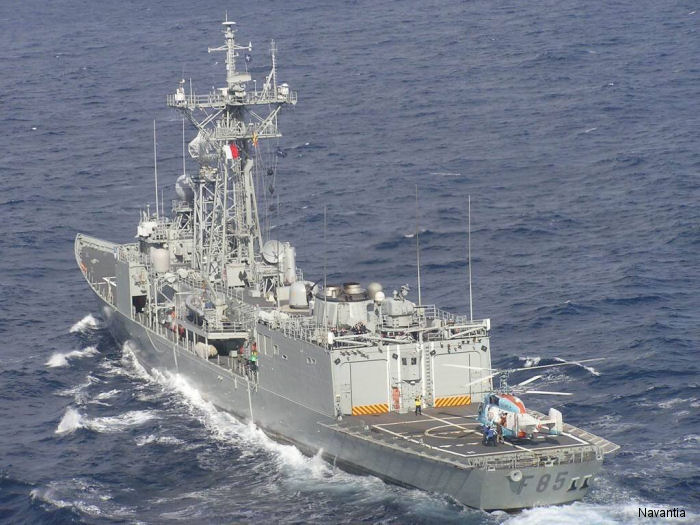

    Aircraft



        Typical Max
    ES Spanish Navy Sikorsky S-70 H-60 12


    The Max option implies only aircraft of this model onboard

    Builder



    ES Bazan Ferrol, Ria de Ferrol
