  • D 561 Francesco Mimbelli

    IT Italian Navy




    1993 to present

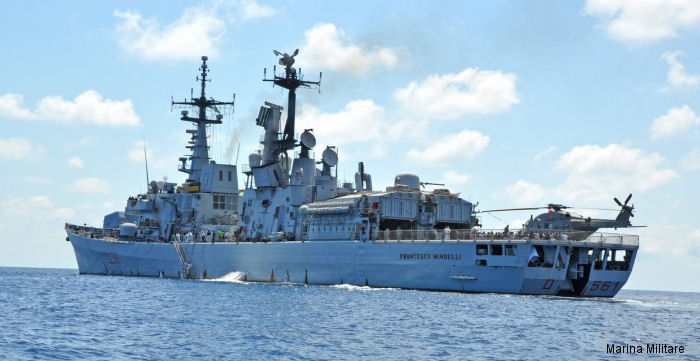

    D 561 Francesco Mimbelli

    Data

    Login to Edit

    Flight Deck: D561
    Call Sign: IAFM


    Events

    Help Us

    Add new event for this unit
    Year:
    Month: <- (1/12) Optional
    Day: <- (1/31) Optional
    Text:

    Add Event

    History of IT D 561 Francesco Mimbelli

    1989Laid down
    1991-apr-13Launched
    1993-oct-18Commissioned
    1995-jun-10Port VisitUKLeith Docks visit Edinburgh, UK with AB212 7-48

    Specifications



        from Durand de la Penne class
    380crew
    4500light (tn)
    5400full load (tn)
    147length (m)
    16beam (m)
    5draught (m)
    7000range (nm)
    32max speed (knots)
    2Naval Engine diesel - Grandi Motori Trieste BL-230-20-DVM
    2Naval Engine gas turbine - General Electric LM2500
    1Naval Engine propulsion system: CODOG
    1Missile Launcher 8-cell Albatros
    1Missile Launcher ASW Otobreda / Matra Milas
    1Missile Launcher Mk 13
    8Missile Launcher OTOMAT Mk2 SSM launcher
    3Naval Gun Oto Melara 76 mm
    1Naval Gun Otobreda 127 mm
    2Torpedo Launchers Mk 32 triple-tube 324mm
    1Chaff and decoys AN/SLQ-25 Nixie
    1Aids TACAN URN-25
    1Combat Systems SADOC 2 (IPN-10/20)
    1Naval Radar air search radar AN/SPS-52
    1Naval Radar air search radar MM/SPS-702
    2Naval Radar fire direction radar AN/SPG-51
    4Naval Radar fire direction radar MM/SPG-76 (RTN-30X)
    1Naval Radar navigation radar MM/SPN 703
    1Naval Radar search radar Selenia MM/SPS 768 (RAN 3L)
    1Sonar hull mounted sonar DE 1167

    Aircraft



        Typical Max
    IT Italian Navy Agusta AB212 22
    IT Italian Navy AW EH101 01
    IT Italian Navy NHI NH90 NFH 12

    The Max option implies only aircraft of this model onboard

    Builder



    IT Fincantieri Riva Trigoso, Sestri Levante
