    • Eurocopter EC135

    EC135P2

    2001

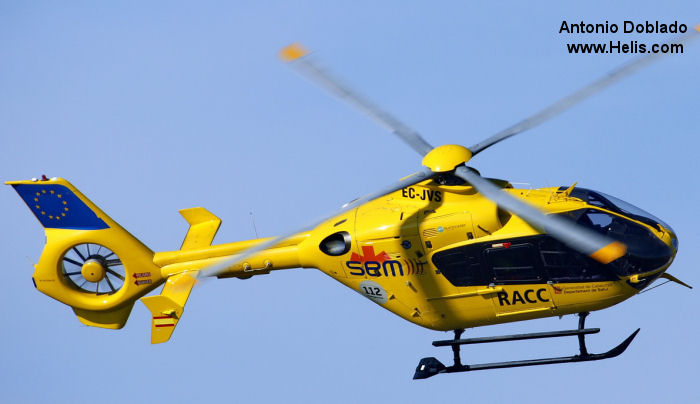

    Eurocopter EC135P2
    By Antonio Doblado


    Introduced in 2001 is powered by two 463 kW (621 shp) Pratt & Whitney Canada PW206B2 with increased thermodynamic and mechanic OEI ratings (128% OEI torque. Built by Eurocopter Deutschland GmbH. Succeeded by the EC135P2+




    EC135P2 News

    PW206B2 Engine Overhaul in Dallas, 25-May-21 : #PW206B2 Dallas Airmotive at DFW Airport, Texas offering Pratt & Whitey Canada’s PW206B2 engine overhaul for Airbus EC135P2/P2+ operators

    P&W Canada on EC135 / H135 20th Anniversary, 14-Jul-16 : FIA 2016 The majority of EC135 / H135 helicopters manufactured since 1996 have been powered by Pratt & Whitney Canada’s PW206B engines in the P1/P2/P3 series



    Specifications

    Engine: 2 x PW C PW206B2 447 shp
    Capacity: 2 + 7
    Length: (m) 10.2
    Height: (m) 3.51
    Blades: 4
    Rotor diam.: (m) 10.2
    Disc area: (m2) 81.7
    Weight: (kgs) Empty: 1460     Max: 2835
    Speed: (km/h) Cruise: 262     Max: 287
    Range: (km) 670
    Ceiling: (m) 6095
    Rate/Climb: (m/min) 700
    blueprints
