  • Fairchild-Hiller FH-1100

    1965










    All aluminum semi-monocoque five passenger light turbine helicopter. Originally powered by the Allison 250 C18 turbine. Now powered by the Rolls-Royce 250 C20B. The FH1100 was the first U.S. civilian turbine-powered light helicopter to go into production. Serial number 09 was the first FH1100 helicopter produced, on June 3, 1966. In 1968 the FH1100 became the first light-turbine helicopter introduced in an airborne ambulance configuration. In 1969 the FH1100 helicopter became the first civil light-turbine helicopter to be successfully used as a U.S. based helicopter air ambulance.




    Specifications


    Engine: 1 x Allison 250-C18 (T63A-700) 317 shp
    Capacity: 1 + 4
    Length: (m) 8.48
    Height: (m) 2.83
    Blades: 2
    Rotor diam.: (m) 10.8
    Disc area: (m2) 53
    Weight: (kgs) Empty: 621     Max: 1250
    Speed: (km/h) Cruise: 195     Max: 204
    Range: (km) 560
    Ceiling: (m) 4300
    Rate/Climb: (m/min) 487

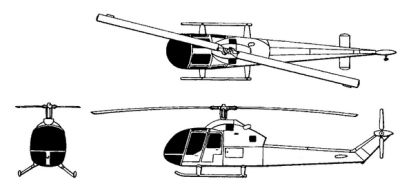

    blueprints


    List of Operators of Fairchild-Hiller FH-1100


    From Organisation with model FH-1100
    1968

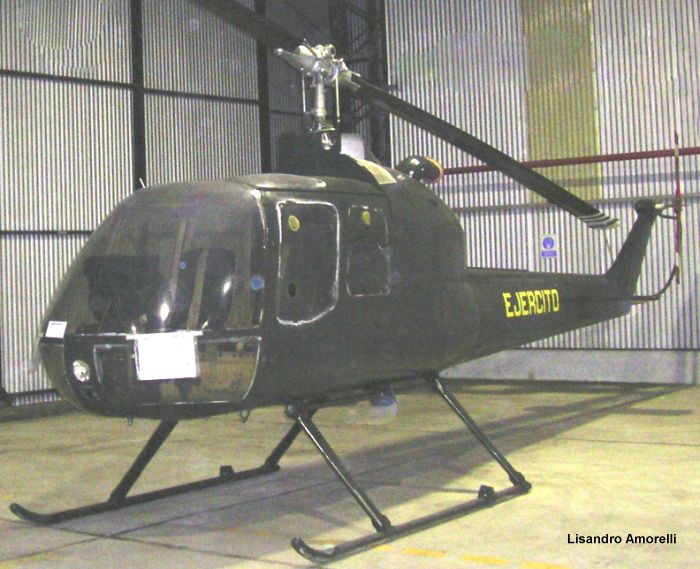

    argentina Aviacion de Ejercito Argentino
        9 1968/79

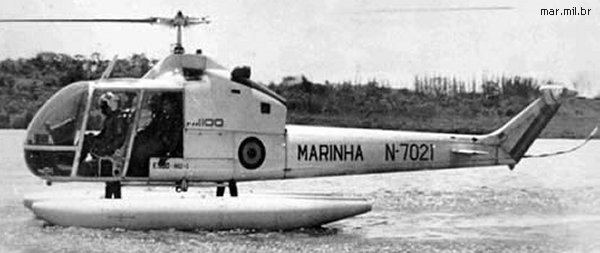

    brazil Força Aeronaval da Marinha do Brasil
        6 1968/76

    Construction Numbers on database of FH-1100 or its versions

    70FH-1100




    Construction Numbers

    Help Us

    C/NBuilt asYearHistory
    Filter
    10 N517FH,G-AVTG
    15 N525FH
    21 N92484
    23 N5594K
    28 N703E
    40 1967 N540FH,N6ST
    43 N543FH
    47 N547FH
    55 N755RH
    63 N4258X
    64 N5020F
    73 1967 N747FH,N35HA
    81 N581FH
    82 AR LQ-JGI,LV-JGI,GN-906,N785LC,,AE-389
    83 N99024
    97 N780SC
    98 N9987S
    100 N372F
    102 BR N-7018
    103 BR N-7019
    104 BR N-7020
    105 BR N-7021
    106 BR N-7022
    107 MY N420FH,9M-APG
    108 AR LQ-JGJ
    109 BR N-7023
    117 US N377FH
    124 1968 US N419FH
    126 1968 US N426FH
    128 1968 US N423FH
    142 N434FH
    145 US N382FH
    148 N34F
    149 AR LV-JTX,LQ-JTX
    151 AR AE-300
    152 AR AE-301
    153 AR AE-302
    154 AR AE-303
    155 AR AE-304
    158 MY N915B,N915BL,9M-AQK,ZK-HKN
    162 1969 US N550F,N1NJ,N250AD
    163 US N551F
    166 AR AE-305
    167 AR AE-306
    168 N556F
    170 CL C-08
    173 N559F
    186 N5038F
    190 AR LQ-JPT,LV-JPT,N602VN,N313BG
    191 N5045F
    196 N5049F
    198 N5052F
    202 N63HZ
    204 AR AE-398
    205 AR AE-399,LV-OAO
    206 N5065F
    210 N210FH
    218 N5058F
    221 AR LV-JXD
    222 AR LV-JTW
    232 N232FH
    233 N12MH
    238 N5071F
    242 N5060F
    251 US N30VA
    254 N8171U
    501 N4034W
    502 1982 N4035G
    503 N6005N
    TI-SPH
    70 C/N.
