McDonnell Douglas MD520N

Derived from md500
1988









McDonnell Douglas MD520N

Specifications


Engine: 1 x Allison 250-C20R 450shp
Capacity: 1 + 5
Length: (m) 9.78
Height: (m) 2.74
Blades: 5
Rotor diam.: (m) 8.33
Disc area: (m2) 54.5
Weight: (kgs) Empty: 742     Max: 1520
Speed: (km/h) Cruise: 250     Max: 282
Range: (km) 430
Ceiling: (m) 4300
Rate/Climb: (m/min) 564
blueprints

Derivatives & Versions


ModelYearHistory
MD600N 1995 The MD 600N is a stretched eight-seat development of the five-seat MD 520N NOTAR helicopter. Originally envisioned as the McDonnell Douglas MD6 ...



List of Operators of McDonnell Douglas MD520N


From Organisation with model MD520N
1991

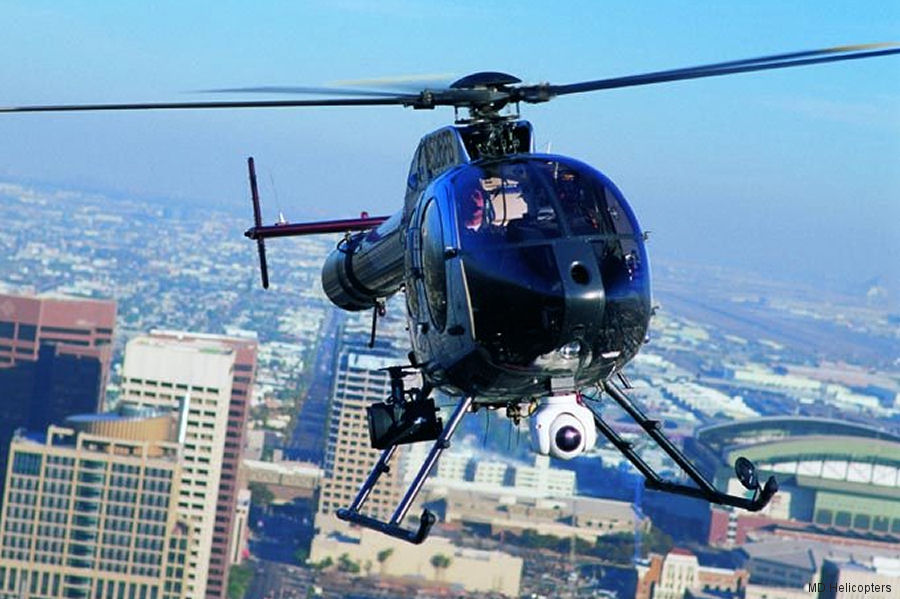

usa State of Arizona
    1991/
1992

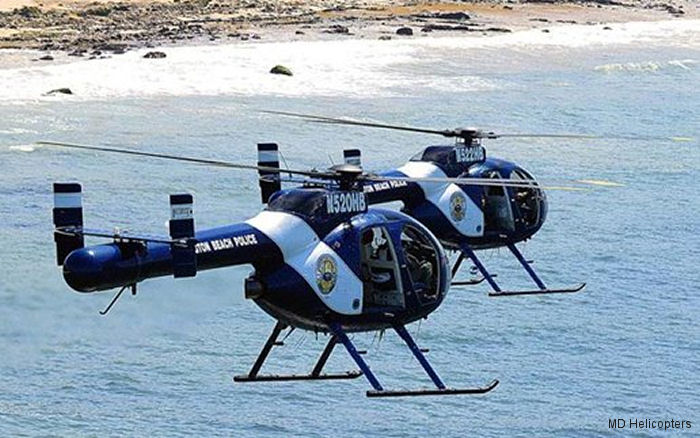

usa State of California
    1992/
1998
usa US Department of Homeland Security
    MD600N 1998/??
1999

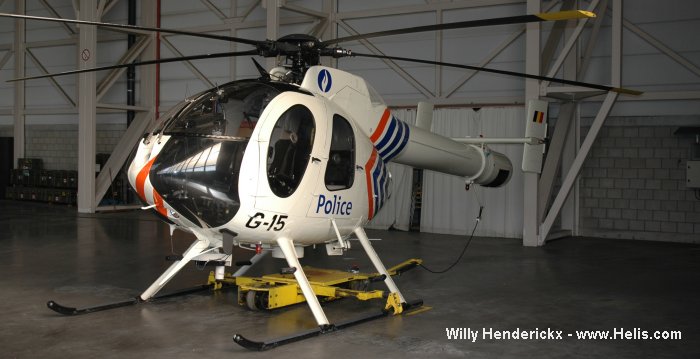

belgium Federale Politie / Police Fédérale
    2 1999/
usa MD Helicopters
    1999/
usa MD Helicopters
    MD600N 1999/
2000
japan SECO International
    MD600N 2000/
2004
turkey Polis Havacilik Daire Baskanligi
    MD600N 10 2004/
2006
hungary Fly 4 Less
    MD600N 1 2006/07
2011

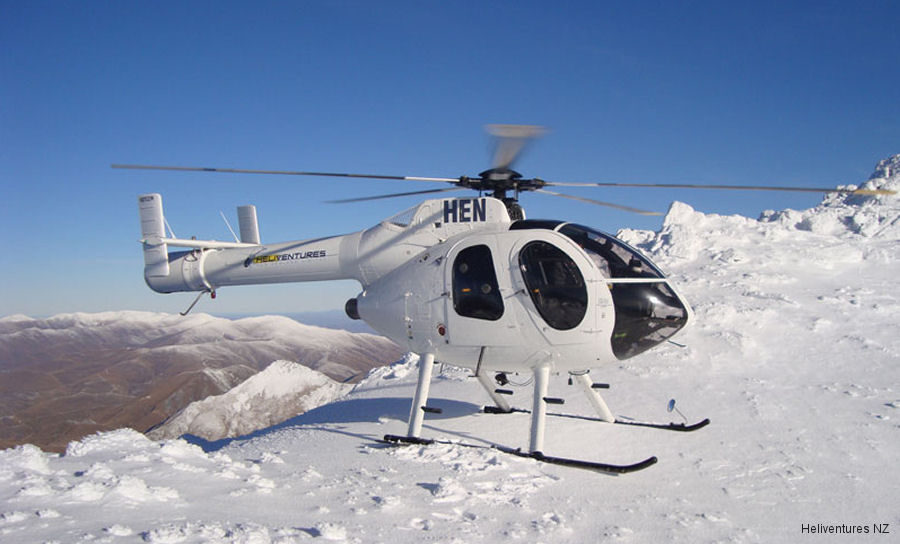

new zealand Heliventures New Zealand Ltd
    2011/
2012
philippines Asian Aerospace
    MD600N 2012/
2013
costa rica Fuerza Publica de Costa Rica
    MD600N 2013/
Construction Numbers on database of MD520N or its versions

48md520n
47md600n
