  • Mitsubishi MH2000

    1996








    • Mitsubishi MH2000

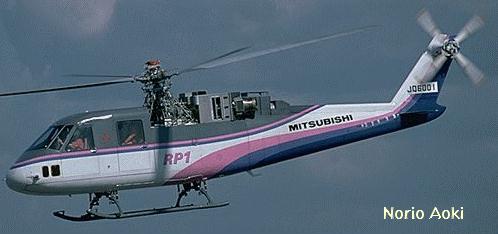

    • Mitsubishi MH2000Mitsubishi RP-1 Experimental Aircraft

    After obtaining big experience building models under license, Mitsubishi Heavy Industries began development of first indigenous helicopter manufacturing both the fuselage and engines. An experimental aircraft, the Mitsubishi RP-1, used a conventional tail rotor and first flew on September 14, 1994. In 1995 began development of the MH2000, a 7/12 seats helicopter fitted with a Fenestron-like tail rotor, which completed maiden flight on July 29, 1996 and achieving Japanese certification on August 1997. The prototype was lost due to tail rotor blade separation and after redesign the production aircraft were known as MH2000A. The type entered service October 1, 2000 with Excel air service but program was terminated in 2004 with only 8 aircraft built.




    Specifications


    Engine: 2 x Mitsubishi MG5-110 800 shp
    Capacity: 2 + 10
    Length: (m) 12.2
    Height: (m) 4.1
    Blades: 4
    Rotor diam.: (m) 12.2
    Disc area: (m2) 117
    Weight: (kgs) Empty: 2500     Max: 4500
    Speed: (km/h) Cruise: 250     Max: 278
    Range: (km) 777
    Ceiling: (m)     Max: 2700
    Rate/Climb: (m/min)

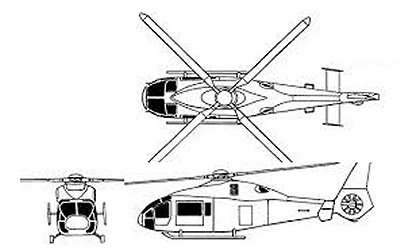

    blueprints


    List of Operators of Mitsubishi MH2000


    From Organisation with model MH2000



    Construction Numbers on database of MH2000 or its versions

    8MH2000




    Construction Numbers

    Help Us

    C/NBuilt asYearHistory
    1001 1996 JP JQ6003
    1002 1998 JP JA001M
    1003 1999 JP JA002M
    1004 1999 JP JA21ME
    1005 JP JA003M
    1006 JP JQ6006
    1007 JP JQ6007
    1008 JP JA007E
    8 C/N.
