    Bell 214ST

    1977







    Model



    • Bell 214ST
    • Bell 214ST

    The Bell 214 ST ( Stretched Twin, then Super Transporter ) is a major redesign of the original Bell 214 B with a larger, stretched fuselage with seating for 16-18 passengers.

    It is powered by two 1.625 shp General Electric CT7-2A engines instead of the single Lycoming of the original 214




    Specifications


    Engine: 2 x GE CT7-2A 1625 shp
    Capacity: 2 + 16
    Length: (m) 15.03
    Height: (m) 4.84
    Blades: 2
    Rotor diam.: (m) 15.85
    Disc area: (m2) 197
    Weight: (kgs) Empty: 4300     Max: 7938
    Speed: (km/h) Cruise: 250     Max: 264
    Range: (km) 850
    Ceiling: (m) 3170
    Rate/Climb: (m/min) 542

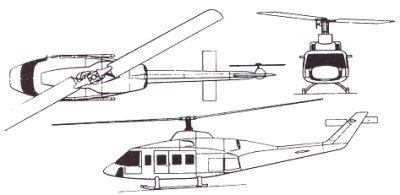

    blueprints


    List of Operators of Bell 214ST


    From Organisation with model 214ST
    1976
    norway Helikopter Service
        214 1976/10
    1982
    venezuela Fuerza Aerea de Venezuela
        3 1982/05
    1983
    oman Royal Oman Police
        6 1983/??
    peru Fuerza Aerea del Peru
        6 1983/
    2013
    usa Erickson
        214 2013/
    Unknown!
    Help

    australia McDermott Aviation
        214
    thailand Royal Thai Navy
    usa Helicopter Transport Services
        214
    usa Evergreen Helicopters
        214
    Construction Numbers on database of 214ST

    37214ST
