Eurocopter EC135

EC135P2+

2007










Eurocopter EC135P2+

Powered by two 463 kW (621 shp) Pratt & Whitney Canada PW206B2 with FADEC, extended component time between overhaul (TBOs) and a change in the main transmission lubricating oil. Aircraft upgraded to this standard ( not built ) are known as EC135P2i




Model News


5,000 Flight Hours for German Navy’ Trainer EC135, 25-Jul-19 : #trainer The Marineflieger, German Naval Aviation, completed 5,000 flight hours of training with the civilian EC135 operated by DL Helicopter Technik in Nordholz

P&W Canada on EC135 / H135 20th Anniversary, 14-Jul-16 : FIA 2016 The majority of EC135 / H135 helicopters manufactured since 1996 have been powered by Pratt & Whitney Canada’s PW206B engines in the P1/P2/P3 series

First EC135P2+ for Beijing Capital Helicopters, 17-Jan-13 : Beijing, China by Priscilla Yip - Beijing Capital Helicopter has expanded its Eurocopter-built rotorcraft inventory with the addition of a VIP-configured EC135 P2+ for passenger transport, tourism and emergency medical services operations.



Specifications


Engine: 2 x PW C PW206B2 447 shp
Capacity: 1 + 5
Length: (m) 12.16
Height: (m) 3.51
Blades: 4
Rotor diam.: (m) 10.2
Disc area: (m2) 81.7
Weight: (kgs) Empty: 1455     Max: 2910
Speed: (km/h) Cruise: 254     Max: 285
Range: (km) 630
Ceiling: (m) 6100
Rate/Climb: (m/min) 457

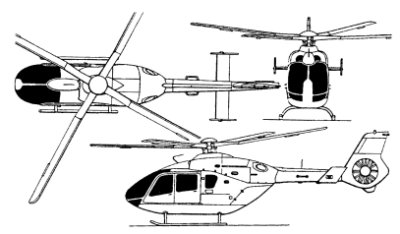

blueprints
