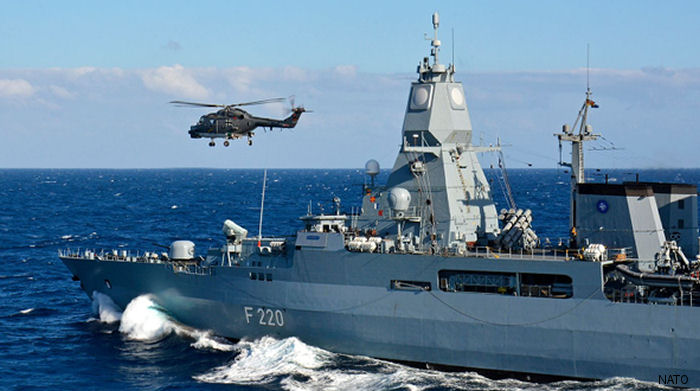

  • F220 Hamburg

    DE German Navy




    2004 to present



    • F220 Hamburg

    Data

    Login to Edit

    IMO:
    MMSI:
    Flight Deck: HA
    Call Sign: DRAB
    Shipyard: Howaldtswerke
    See Also: DD Type 101 Hamburg class D181


    Events

    Help Us

    Add new event for this unit
    Year:
    Month: <- (1/12) Optional
    Day: <- (1/31) Optional
    Text:

    Add Event

    History of DE F220 Hamburg

    1996-junOrdered
    2000-sep-1Laid down
    2002-aug-16Launched
    2004-sepdelivered to German Navy
    2004-dec-13Commissioned
    2014-may-14Port VisitHamburg Port 825th Hamburg Hafengeburtstag visit to Hamburg for the 825th anniversary of the port and to join the Hafengeburtstag celebrations. Moored alongside HMS Lancaster.
    2014-jun-6DeploymentBaltic Sea BALTOPS 14 participated with BALTOPS 2014
    2015-aug-28NEWS Santa Maria Frigate Returns After Active Endeavour
    2015-octDeploymentWest Mediterranean Exercise Trident Juncture 2015 participated in multi-national NATO Maritime Command exercise, until Nov 2015
    2015-octDeployment SNMG2 flagship of SNMG2
    2018-novPort VisitFITurku Northern Coasts 18 Visited Turku for Ex NoCo18
    2020-aug-19Central Mediterranean EUNAVFOR MED IRINI In substitution of F453 Spetsai
    2020-dec-08NEWS Central Mediterranean Greek, German and Italian ships at Op IRINI
    2021-may Formidable Shield 2021

    Specifications



        from F 124 Sachsen class
    245crew
    143light (tn)
    5690full load (tn)
    17.44beam (m)
    5draught (m)
    4000range (nm)
    29max speed (knots)
    2Naval Engine diesel - MTU
    1Naval Engine gas turbine - General Electric LM2500
    2Naval Engine propulsion system: CODOG
    2Missile Launcher Mk 141 quad Harpoon
    1Missile Launcher Mk 41 VLS
    2Missile Launcher Mk 49 21-cell RAM
    2Naval Gun Mauser MLG 27 mm
    1Naval Gun Oto Melara 76 mm
    2Torpedo Launchers Mk 32 triple-tube 324mm
    1Chaff and decoys Mark 36 SRBOC
    1Naval Radar long range search SMART-L

    Aircraft



        Typical Max
    DE German Navy Westland Super Lynx mk88a 12


    The Max option implies only aircraft of this model onboard

    Builder



    DE Howaldtswerke,
