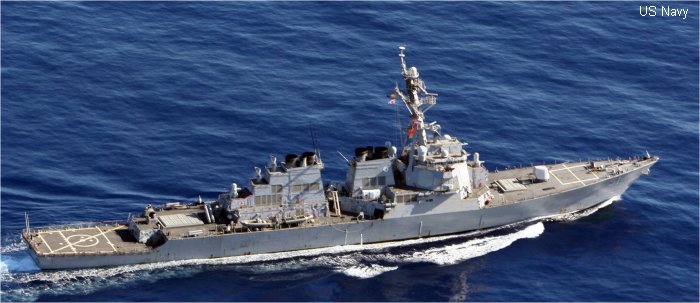

DDG-51 USS Arleigh Burke

1991 to present

Landing platform only. No hangar

Sikorsky S-70 H-60

Data	Login to Edit

Arleigh Burke Flight I class
DDG - Guided-Missile Destroyer

Events	Help Us

Add new event for this unit



History of DDG-51 USS Arleigh Burke
1985-apr-2	Ordered
1988-dec-6	Laid down
1989-sep-16	Launched
1991-jul-4	Commissioned
2016-apr-12	Deployment	Eastern AMO Exercise Komodo 2016 participated in MNEK 2016

Specifications

from Arleigh Burke Flight I class
280	crew
6800	light (tn)
8800	full load (tn)
154	length (m)
20	beam (m)
9.40	draught (m)
4400	range (nm)
31	max speed (knots)
100000	power (shp)



4	Naval Engine gas turbine - General Electric LM2500



2	Missile Launcher Mk 141 quad Harpoon
2	Missile Launcher Mk 41 VLS



2	Naval Gun Mark 38 25 mm
1	Naval Gun Mark 45 5/54 inch (127mm)
2	Close-In Weapon System CIWS Phalanx 20 mm
2	Torpedo Launchers Mk 32 triple-tube 324mm
1	Chaff and decoys AN/SLQ-25 Nixie
1	Chaff and decoys AN/SLQ-32 EW
1	Chaff and decoys AN/SLQ-39 chaff buoys
1	Chaff and decoys Mark 36 SRBOC



1	Aids AN/SQQ-28 LAMPS III
1	Naval Radar air search radar AN/SPY-1 AEGIS
1	Naval Radar surface search radar AN/SPS-67
1	Naval Radar surface search radar AN/SPS-73
1	Sonar hull mounted sonar AN/SQS-53
1	Sonar towed array sonar AN/SQR-19

Aircraft

The Max option implies only aircraft of this model onboard

Builder
