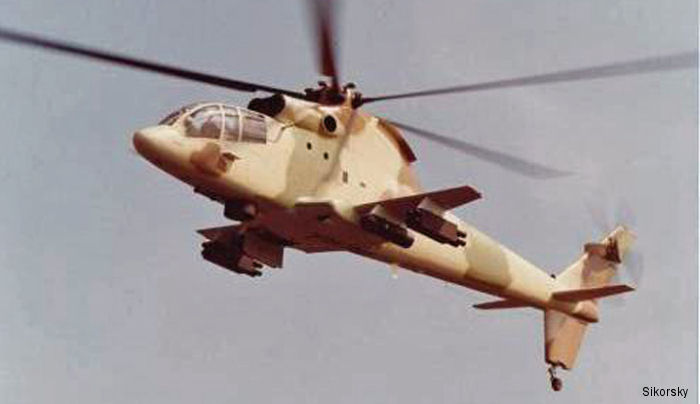

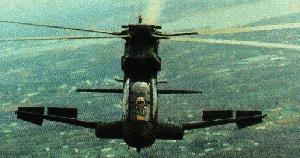

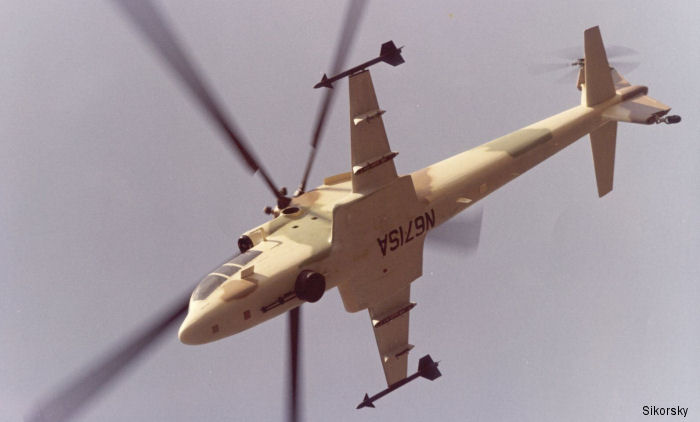

  • Sikorsky S-67

    The first Black Hawk




    Based on the S-61F and the S-66 ( the Sikorsky's motion for the original US Army's 1965/6 AAFSS competition ), the S-67 Black Hawk was a Sikorsky's private venture intended to replace the ill-fated Lockheed AH-56 Cheyenne. The US Army selected the Hughes 77 (as the YAH-64) and the Bell 409 (YAH-63) to be the contenders in their new AAH competition and therefore the S-67 was canceled.

    The lone S-67 prototype crashed while conducting demonstrations at the Farnborough Air Show in September 1974. Both crewmen were killed.

    Sikorsky S-67

    First Flight : Aug 27, 1970
    Crew: 2 + 15
    Engines: 2 x GE T58-GE-5 of 1500 shp each
    Speed: Max: 311 km/h
    Service Ceiling: 5180 m
    Range: 354 km
    Weight: Empty: 5681 kg -- Max: 11010
    Rotor Span: 18.90 m
    Length: 22.6 m
    Height: 4.57 m

    Sikorsky S-67


    Sikorsky S-67

    Sikorsky S-67
