    AW119Kx Koala

    2012

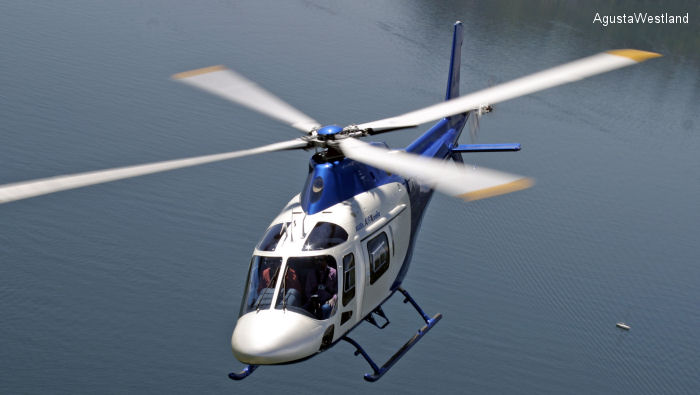

    AgustaWestland AW119Kx Koala

    Unveiled in October 2012, the new generation of the AW119Ke features the Garmin G1000HTM integrated flight deck system while keeping the AW119 performance, cabin space and payload. The new avionics system includes a synthetic vision system, moving map, highway in the sky and obstacle/terrain avoidance systems for enhanced situational awareness and safety and is also optimized for diagnostics and data analysis for maintenance purposes. Manufactured by AgustaWestland Philadelphia, USA.

    In 2019 received the FAA IFR certification, the first single engine helicopter in decades, which led to it being selected as the new US Navy trainer helicopter as the TH-73A




    Specifications


    Engine: 1 x PW C PT6B-37A 1002 shp
    Capacity: 1 + 7
    Length: (m) 12.92
    Height: (m) 3.6
    Blades: 4
    Rotor diam.: (m) 10.83
    Disc area: (m2) 92
    Weight: (kgs) Empty: 1450     Max: 3100
    Speed: (km/h) Cruise: 244     Max: 282
    Range: (km) 950
    Ceiling: (m) 4572
    Rate/Climb: (m/min) 548
    blueprints


    List of Operators of AgustaWestland AW119Kx Koala


    From Organisation with model AW119Kx Koala
    2011
    canada Geotech Aviation Ltd
        AW119 Koala 2011/
    2012
    usa AgustaWestland Philadelphia
        2012/
    2013

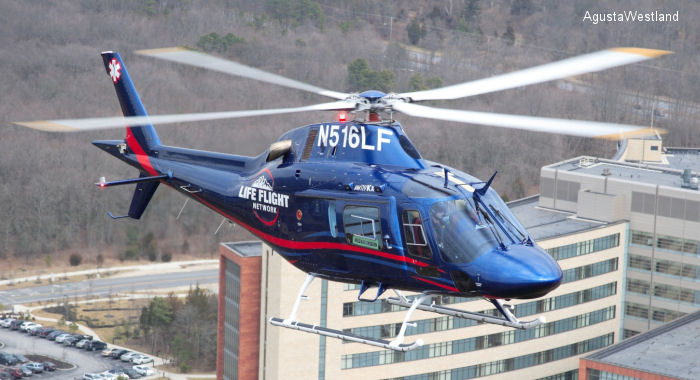

    usa Life Flight
        2013/
    2014

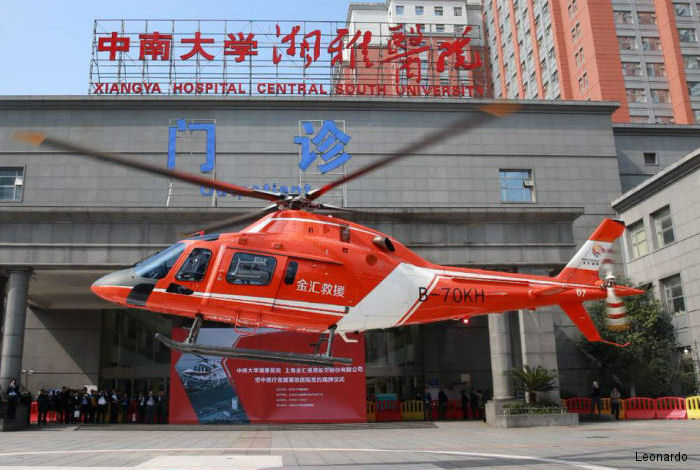

    china Shanghai Zenisun Investment Group
        2014/
    usa Summit Air Ambulance
        2014/
    2016
    south africa Air Mercy Service
        2016/
    2018
    bangladesh Bashundhara Airways
        2018/
    indonesia National Utility Helicopters
        2018/

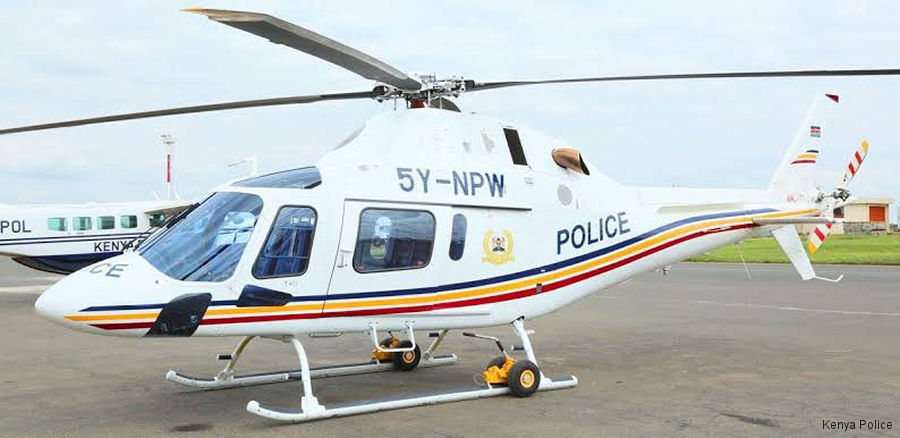

    kenya Kenya Police
        2018/20
    rwanda Akagera Aviation
        2018/
    2019
    latvia Valsts Robežsardze
        2019/
    portugal Força Aérea Portuguesa
        2019/
    2020
    israel Heil Ha'Avir
        2020/
    Unknown!
    Help

    usa Kinetica
        AW119 Koala
    Construction Numbers on database of AW119Kx Koala

    89aw119kx
