  • Agusta AB204

    Derived from Bell 204
    1961







    Model



    Agusta AB204

    Agusta built the Bell 204 from 1961 up until 1972. Besides being used by all Italian military and civilian services it was also exported to several european countries. The italian navy also used a specialized antisubmarine variant which would be the forerunner of the succesfull ab212asw.




    Specifications


    Engine: 1 x Lycoming T53-L-11A 1100 shp
    Capacity: 2 + 6
    Length: (m) 12.69
    Height: (m) 4.5
    Blades: 2
    Rotor diam.: (m) 14.63
    Disc area: (m2) 168
    Weight: (kgs) Empty: 2080     Max: 4300
    Speed: (km/h) Cruise: 205     Max: 220
    Range: (km) 500
    Ceiling: (m) 5910
    Rate/Climb: (m/min) 534

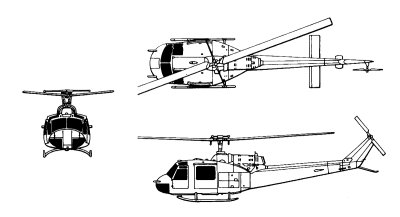

    blueprints


    Derivatives & Versions


    ModelYearHistory
    AB204AS AS means Anti Sommergibile (anti submarine)
    AB204B


    List of Operators of Agusta AB204


    From Organisation with model AB204
    1961

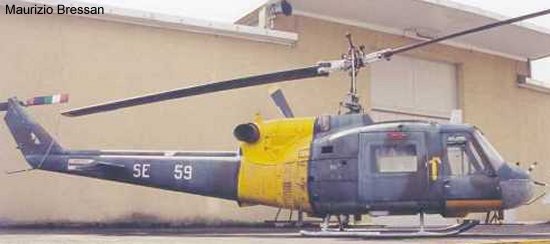

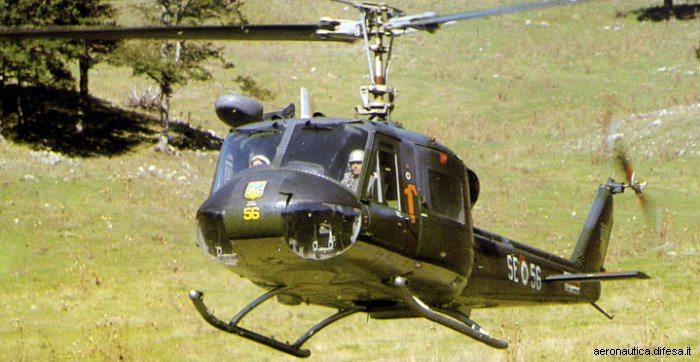

    italy Aeronautica Militare Italiana
        43 1961/84

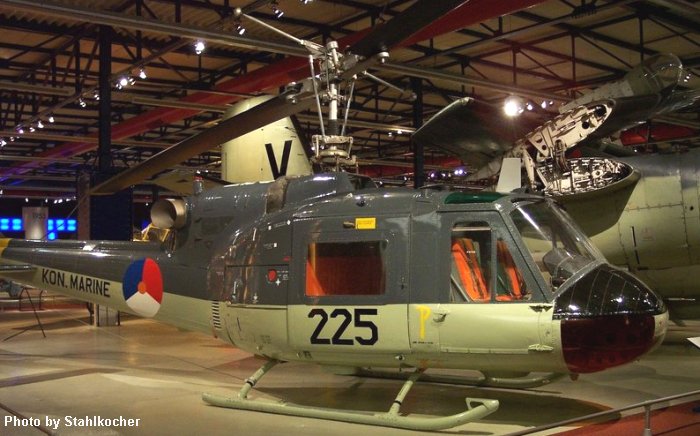

    netherlands Marine Luchtvaartdienst
        AB204B 9 1961/78
    1962
    sweden flygvapnet
        AB204B 1962/98

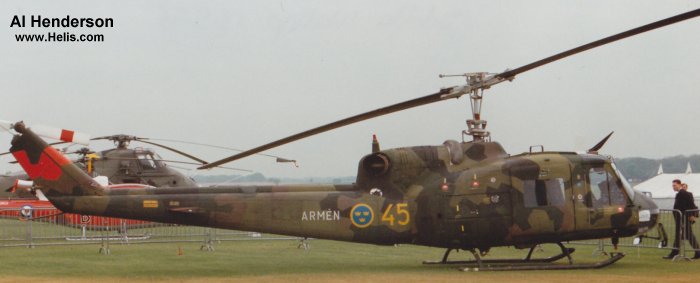

    sweden armen
        14 1962/01
    1963
    austria Österreichische Luftstreitkräfte
        AB204B 26 1963/01
    italy Aviazione dell'Esercito
        AB204B 48 1963/89
    italy Carabinieri
        6 1963/??
    italy Aviazione dell'Esercito
        48 1963/89
    1964
    italy Marina Militare Italiana
        35 1964/??
    spain Arma Aerea de la Armada Española
        4 1964/79
    1972
    turkey Türk Deniz Kuvvetleri
        AB204AS 3 1972/
    1986

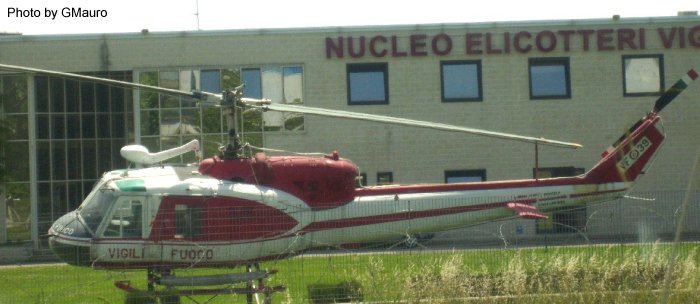

    italy Vigili del Fuoco
        15 1986/??
    1998
    sweden Försvarsmakten
        1998/01
    Unknown!
    Help

    turkey Türk Kara Kuvvetleri
        AB204B 18
    Construction Numbers on database of AB204 or its versions

    2ab204
    42ab204as
    174ab204b
