  • The Robinson R22 is one of the most popular 2-place helicopters. The low acquisition cost, easy maintenance, and simple design makes it an attractive choice for private owners and flight schools




    Specifications


    Engine: 1 x Lycoming O-320 124 shp
    Capacity: 1 + 1
    Length: (m) 8.7
    Height: (m) 2.7
    Blades: 2
    Rotor diam.: (m) 7.7
    Disc area: (m2) 46
    Weight: (kgs) Empty: 415     Max: 640
    Speed: (km/h) Cruise: 170     Max: 189
    Range: (km) 380
    Ceiling: (m) 4200
    Rate/Climb: (m/min) 360

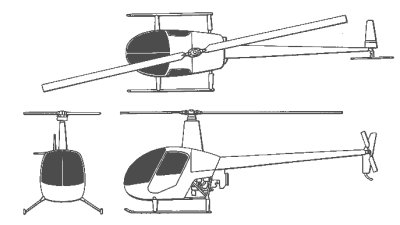

    blueprints


    Derivatives & Versions


    ModelYearHistory
    R22 HP 1981
    R22 Alpha 1983
    R22 Beta 1985
    R22 Mariner 1985
    R44 1990 The Robinson R44 is a four-place light helicopter based on the two-place Robinson R22. The R44 features hydraulically-assisted flight controls. ...
    R22 Beta II 1996
    R22 Mariner II 1996
