    • NL Kortenaer class

    NL Standard class
    Frigate
    ships



    1978


    Frigate Kortenaer class

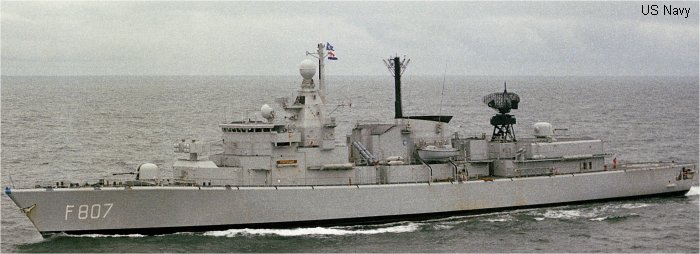

    General purpose frigates. They were originally fitted with two 76 mm guns (see photo) being the one at the top of the hangar replaced by a CIWS Goalkeeper system later. Two vessels were transferred to Greece during construction as the Elli class and were replaced in dutch service by two new ships configured in the air defense role known as Jacob van Heemskerck class. After retirement, eight Kortenaers were transferred to Greece too and refited upon the Elli class

        Derivatives / Succeeded by
    GR Elli class 1981
    NL FFG Jacob van Heemskerck class 1985
    NL Karel Doorman class 1991
    AE Abu Dhabi class 2000


    Specifications

    		 Login to Edit


    190crew
    3500light (tn)
    3800full load (tn)
    130length (m)
    14.40beam (m)
    4.40draught (m)
    4700range (nm)
    30max speed (knots)
    2Naval Engine gas turbine - Rolls Royce Olympus
    2Naval Engine gas turbine - Rolls Royce Tyne
    1Naval Engine propulsion system: COGOG
    2Missile Launcher Mk 141 quad Harpoon
    1Missile Launcher Mk 29 8-cell Sea Sparrow
    1Naval Gun Oto Melara 76 mm
    1Close-In Weapon System Goalkeeper
    2Torpedo Launchers Mk 32 triple-tube 324mm
    1Naval Radar air search radar LW-08
    1Naval Radar fire direction radar WM25
    1Naval Radar navigation radar ZW-06
    1Sonar hull mounted sonar AN/SQS-509

    Aircraft

    		 Login to Edit

        Typical Max
    NL Dutch Navy Westland Lynx 12
    GR Hellenic Navy Agusta AB212 22

    The Max option implies only aircraft of this model onboard

    Shipyards

    		 Login to Edit


    NL Royal Schelde - 10
    NL Wilton-Fijenoord - 2


    List of Ships

    		 Login to Edit

        Sorted by Year Filter:     Hide Transfers     Hide deriv.
    NLRoyal Netherlands NavyF807Hr.Ms. KortenaerPADA - KN19781997
    Elli class GR Hellenic Navy F462 HS Kountouriotis 1998--
    NLRoyal Netherlands NavyF808Hr.Ms. CallenburghPADB - CB19791994
    Elli class GR Hellenic Navy F459 HS Adrias 1994--
    NLRoyal Netherlands NavyF812Hr.Ms. Pieter Florisz19791979
    Elli class GR Hellenic Navy F450 HS Elli 1981--
    NLRoyal Netherlands NavyF813Hr.Ms. Witte de WithWW19791979
    Elli class GR Hellenic Navy F451 HS Limnos 1982--
    NLRoyal Netherlands NavyF809Hr.Ms. Van KinsbergenPADC - KP19801995
    Elli class GR Hellenic Navy F461 HS Navarinon 1995--
    NLRoyal Netherlands NavyF810Hr.Ms. BanckertPADD - BK19801993
    Elli class GR Hellenic Navy F460 HS Aegaeon 1993--
    NLRoyal Netherlands NavyF811Hr.Ms. Piet HeinPAVM - PH19811998
    Abu Dhabi class AE United Arab Emirates Navy F02 Al Emirat 19982008
    NLRoyal Netherlands NavyF823Hr.Ms. Philips van AlmondePADF - PA19812002
    Elli class GR Hellenic Navy F465 HS Themistocles 2002--
    NLRoyal Netherlands NavyF824Hr.Ms. Bloys van TreslongPADG - BT19822003
    Elli class GR Hellenic Navy F466 HS Nikiforos Fokas 2003--
    NLRoyal Netherlands NavyF816Hr.Ms. Abraham CrijnssenPAVX - AC19831997
    Abu Dhabi class AE United Arab Emirates Navy F01 Abu Dhabi 19972008
    NLRoyal Netherlands NavyF825Hr.Ms. Jan van BrakelPADH - JB19832001
    Elli class GR Hellenic Navy F464 HS Kanaris 2001--
    NLRoyal Netherlands NavyF826Hr.Ms. Pieter FloriszPADI - PF19832001
    Elli class GR Hellenic Navy F463 HS Bouboulina 2001--
    NLRoyal Netherlands NavyF812Jacob van Heemskerck class Hr.Ms. Jacob van HeemskerckPAVO - JH19862004
    CL Chilean Navy FFG-14 Almirante Latorre 2005--
    NLRoyal Netherlands NavyF813Jacob van Heemskerck class Hr.Ms. Witte de WithPAVP - WW19862006
    CL Chilean Navy FFG-11 Capitan Prat 2006--
    NLRoyal Netherlands NavyF827Karel Doorman class Hr.Ms. Karel DoormanPAMA - KD19912006
    BE Belgian Navy F930 Leopold I 2007--
    NLRoyal Netherlands NavyF829Karel Doorman class Hr.Ms. Willem van der ZaanPAMC - WZ19912006
    BE Belgian Navy F931 Louise-Marie 2008--
    NLRoyal Netherlands NavyF830Karel Doorman class Hr.Ms. Tjerk HiddesPAMD - TH19932006
    CL Chilean Navy FF-18 Almirante Riveros 2007--
    NLRoyal Netherlands NavyF831Karel Doorman class Hr.Ms. Van AmstelPAME - VA1993--
    NLRoyal Netherlands NavyF832Karel Doorman class Hr.Ms. Abraham van der HulstPAMF19932004
    CL Chilean Navy FF-15 Blanco Encalada 2005--
    NLRoyal Netherlands NavyF833Karel Doorman class Hr.Ms. Van NesPAMI - VN19942007
    PT Portuguese Navy F333 NRP Bartolomeu Dias 2009--
    NLRoyal Netherlands NavyF834Karel Doorman class Hr.Ms. Van GalenPAMG - VG19942009
    PT Portuguese Navy F334 NRP Francisco de Almeida 2009--
    NLRoyal Netherlands NavyF828Karel Doorman class Hr.Ms. Van SpeijkPAMB1995--

    22 units


    Events

    		 Login to Edit

    1974-aug-31OrderedNL F807 Hr.Ms. Kortenaer
    1974-aug-31OrderedNL F808 Hr.Ms. Callenburgh
    1974-aug-31OrderedNL F809 Hr.Ms. Van Kinsbergen
    1974-aug-31OrderedNL F810 Hr.Ms. Banckert
    1974-nov-28OrderedNL F811 Hr.Ms. Piet Hein
    1974-nov-28OrderedNL F812 Hr.Ms. Pieter Florisz
    1974-nov-28OrderedNL F813 Hr.Ms. Witte de With
    1974-nov-28OrderedNL F816 Hr.Ms. Abraham Crijnssen
    1975-apr-8Laid downNL F807 Hr.Ms. Kortenaer
    1975-sep-2Laid downNL F808 Hr.Ms. Callenburgh
    1975-sep-2Laid downNL F809 Hr.Ms. Van Kinsbergen
    1976-feb-25Laid downNL F810 Hr.Ms. Banckert
    1976-dec-18LaunchedNL F807 Hr.Ms. Kortenaer
    1976-dec-29OrderedNL F823 Hr.Ms. Philips van Almonde
    1976-dec-29OrderedNL F824 Hr.Ms. Bloys van Treslong
    1976-dec-29OrderedNL F825 Hr.Ms. Jan van Brakel
    1976-dec-29OrderedNL F826 Hr.Ms. Pieter Florisz originally to be named Hr.Ms. Willem van der Zaan
    1977-mar-26LaunchedNL F808 Hr.Ms. Callenburgh
    1977-apr-16LaunchedNL F809 Hr.Ms. Van Kinsbergen
    1977-apr-28Laid downNL F811 Hr.Ms. Piet Hein
    1977-jul-1Laid downNL F812 Hr.Ms. Pieter Florisz
    1977-oct-1Laid downNL F823 Hr.Ms. Philips van Almonde
    1977-oct-2NL F823 Hr.Ms. Philips van Almonde Royal Schelde Yard No 358 (subcontracted to Wilton)
    1978-may-5Laid downNL F824 Hr.Ms. Bloys van Treslong
    1978-jun-3LaunchedNL F811 Hr.Ms. Piet Hein
    1978-jun-13Laid downNL F813 Hr.Ms. Witte de With
    1978-sep-30LaunchedNL F810 Hr.Ms. Banckert Yard No 353
    1978-oct-25Laid downNL F816 Hr.Ms. Abraham Crijnssen
    1978-oct-26CommissionedNL F807 Hr.Ms. Kortenaer
    1979-jul-26CommissionedNL F808 Hr.Ms. Callenburgh
    1979-aug-11LaunchedNL F823 Hr.Ms. Philips van Almonde
    1979-oct-27LaunchedNL F813 Hr.Ms. Witte de With
    1979-nov-16Laid downNL F825 Hr.Ms. Jan van Brakel
    1979-dec-15LaunchedNL F812 Hr.Ms. Pieter Florisz
    1980Fate: transferedNL F812 Hr.Ms. Pieter Florisz to Greece as Elli
    1980-apr-24CommissionedNL F809 Hr.Ms. Van Kinsbergen
    1980-oct-29CommissionedNL F810 Hr.Ms. Banckert
    1980-nov-15LaunchedNL F824 Hr.Ms. Bloys van Treslong Royal Schelde Yard No 359 (subcontracted to Wilton)
    1981Fate: transferedNL F813 Hr.Ms. Witte de With to Greece as Limnos
    1981-jan-21Laid downNL F826 Hr.Ms. Pieter Florisz
    1981-apr-14CommissionedNL F811 Hr.Ms. Piet Hein
    1981-apr-15HomeportNL F811 Hr.Ms. Piet Hein Den Helder, Netherlands
    1981-may-16LaunchedNL F816 Hr.Ms. Abraham Crijnssen Yard No 357
    1981-may-16LaunchedNL F825 Hr.Ms. Jan van Brakel
    1981-nov-6Port VisitNL F808 Hr.Ms. Callenburgh visited Devonport 6 to 9 Nov 1981, with SH-14B 271 embarked.
    1981-dec-2CommissionedNL F823 Hr.Ms. Philips van Almonde
    1981-dec-3HomeportNL F823 Hr.Ms. Philips van Almonde Den Helder
    1982-aprAircraftNL F810 Hr.Ms. Banckert assigned 860 Sq Lynx 269 until Oct 1987
    1982-may-8LaunchedNL F826 Hr.Ms. Pieter Florisz
    1982-nov-25CommissionedNL F824 Hr.Ms. Bloys van Treslong
    1983-janAircraftNL F824 Hr.Ms. Bloys van Treslong assigned 860 Sq Lynx SH-14B 268 until Nov 1984
    1983-jan-6CommissionedNL F816 Hr.Ms. Abraham Crijnssen
    1983-feb-28RefitNL F823 Hr.Ms. Philips van Almonde 28Feb to April at Wilton-Fijenoord for maintenance
    1983-apr-14CommissionedNL F825 Hr.Ms. Jan van Brakel
    1983-oct-11CommissionedNL F826 Hr.Ms. Pieter Florisz
    1984-jul-2DeploymentNL F823 Hr.Ms. Philips van Almonde departure Den Helder for joining STANAVFORLANT in Plymouth
    1984-dec-15NL F823 Hr.Ms. Philips van Almonde arrival Den Helder after stanavforlant deployment
    1985-oct-7DeploymentNL F810 Hr.Ms. Banckert assisted HMS Beaver Flt Lynx ZD268 by re-fuelling her in the Bay of Biscay, en route Truro, with 2 casualties from mv Reefer Dolphin.
    1987-octAircraftNL F810 Hr.Ms. Banckert assigned 860 Sq Lynx 266 until Nov 1987
    1988-febAircraftNL F816 Hr.Ms. Abraham Crijnssen assigned 860 Sq Lynx 272 until Mar 1990
    1988-sep-26Port VisitNL F807 Hr.Ms. Kortenaer Fleet Review: Australia Bi-centennial Naval Salute to Sydney for Australian Bi-centennial Fleet Review
    1988-sep-26Port VisitNL F825 Hr.Ms. Jan van Brakel Fleet Review: Australia Bi-centennial Naval Salute to Sydney for Australian Bi-centennial Fleet Review
    1988-novAircraftNL F824 Hr.Ms. Bloys van Treslong assigned 860 Sq Lynx SH-14B 274 until Sep 1989
    1990-janAircraftNL F810 Hr.Ms. Banckert assigned 860 Sq Lynx 270 until Feb 1991
    1990-janAircraftNL F824 Hr.Ms. Bloys van Treslong assigned 860 Sq Lynx SH-14C 266 until May 1990
    1990-marPort VisitNL F811 Hr.Ms. Piet Hein Portsmouth, United Kingdom
    1990-jun-22HomeportNL F808 Hr.Ms. Callenburgh 22+23 June participated with Fleet Days Den Helder Netherlands. On board SH-14B 271
    1990-sepNL F826 Hr.Ms. Pieter Florisz Operation Desert Shield/Storm from sep1990 to dec1990
    1991-augAircraftNL F824 Hr.Ms. Bloys van Treslong assigned 860 Sq Lynx SH-14C 276 until Dec 1993
    1992-febAircraftNL F810 Hr.Ms. Banckert assigned 860 Sq Lynx 271 until Apr 1992
    1992-sepAircraftNL F816 Hr.Ms. Abraham Crijnssen assigned 860 Sq Lynx 271 until at least 1994
    1993DecommissionedNL F810 Hr.Ms. Banckert
    1993Fate: transferedNL F810 Hr.Ms. Banckert greece
    1993-marDeploymentNL F825 Hr.Ms. Jan van Brakel UNPROFOR deployed to the Adriatic in support of UN and NATO operations in the former Yugoslavia, until Oct 1993.
    1993-mayDeploymentNL F816 Hr.Ms. Abraham Crijnssen UNPROFOR escort for HMS Ark Royal in the Adriatic. Relieved HMS Brilliant.
    1994DecommissionedNL F808 Hr.Ms. Callenburgh
    1994Fate: transferedNL F808 Hr.Ms. Callenburgh greece
    1994-may-1DeploymentNL F809 Hr.Ms. Van Kinsbergen Operation Sharp Guard involved in challenging the Maltese registered mv Lido II heading for Montenegro with a cargo of fuel oil, violating the conditions of the UN commercial embargo.
    1994-junNL F826 Hr.Ms. Pieter Florisz BALTOPS 94 participated with BALTOPS 94
    1994-junNL F807 Hr.Ms. Kortenaer BALTOPS 94 participated with BALTOPS 94
    1994-junNL F816 Hr.Ms. Abraham Crijnssen BALTOPS 94 participated with BALTOPS 94
    1995DecommissionedNL F809 Hr.Ms. Van Kinsbergen
    1995Fate: transferedNL F809 Hr.Ms. Van Kinsbergen greece
    1997DecommissionedNL F807 Hr.Ms. Kortenaer
    1997Fate: transferedNL F807 Hr.Ms. Kortenaer greece
    1997DecommissionedNL F816 Hr.Ms. Abraham Crijnssen
    1997Fate: transferedNL F816 Hr.Ms. Abraham Crijnssen United Arab Emirates
    1998DecommissionedNL F811 Hr.Ms. Piet Hein
    1998Fate: transferedNL F811 Hr.Ms. Piet Hein to United Arab Emirates
    2001DecommissionedNL F825 Hr.Ms. Jan van Brakel
    2001Fate: transferedNL F825 Hr.Ms. Jan van Brakel greece
    2001DecommissionedNL F826 Hr.Ms. Pieter Florisz
    2001Fate: transferedNL F826 Hr.Ms. Pieter Florisz greece
    2002DecommissionedNL F823 Hr.Ms. Philips van Almonde
    2002Fate: transferedNL F823 Hr.Ms. Philips van Almonde greece
    2003DecommissionedNL F824 Hr.Ms. Bloys van Treslong
    2003Fate: transferedNL F824 Hr.Ms. Bloys van Treslong Greece
