    Bell AH-1J Sea Cobra

    1969







    Model

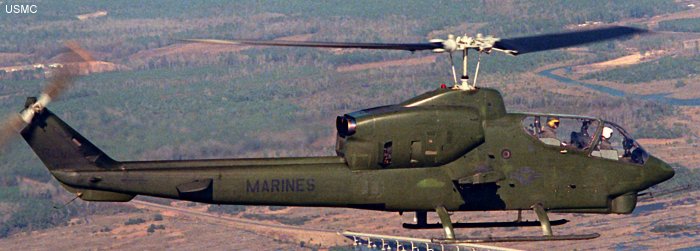

    Bell AH-1J Sea Cobra

    The AH-1J Sea Cobra was developed for the USMC as a twin engine variant based on a desire for improved safety and redundancy for over-water operation. Featuring the Pratt and Whitney Twinpac T400 engine (two 900-hp turboshaft engines coupled together) giving an overall increase in installed power, it also included a new nose turret gun, with the three barrel XM197 20mm cannon, as well as other improvements. While development and production of the first 49 ordered were under way, the Marines loaned 38 AH-1Gs from the US Army




    Specifications


    Engine: 1 x PW C T400-CP-400 1800 shp
    Capacity: 2
    Length: (m) 16.3
    Height: (m) 4.1
    Blades: 2
    Rotor diam.: (m) 13.4
    Disc area: (m2)
    Weight: (kgs) Empty: 3000     Max: 4540
    Speed: (km/h)     Max: 333
    Range: (km) 580
    Ceiling: (m) 3200
    Rate/Climb: (m/min) 332

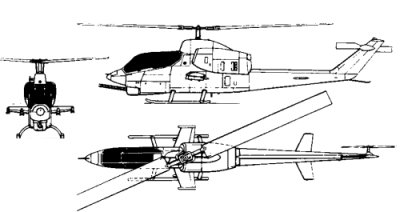

    blueprints


    List of Operators of Bell AH-1J Sea Cobra


    From Organisation with model AH-1J Sea Cobra
    1968
    usa US Marine Corps
        209 AH-1 Cobra 392 1968/
    1978
    south korea Daehanminguk Yuk-gun
        9 1978/04

    Construction Numbers on database of AH-1J Sea Cobra

    88ah-1j
