Sikorsky S-80 H-53E

CH-53E Super Stallion

1980










  • Sikorsky CH-53E Super Stallion
  • Sikorsky CH-53E Super Stallion



Model News


Upgraded glass cockpit CH-53E makes first flight, 13-Dec-10 : The Marine Corps’ 235th birthday, Nov. 10, marked the first flight here of the Marine Corps first CH-53E helicopter equipped with a new glass cockpit and avionics upgrade.



Specifications


Engine: 3 x GE T64-GE-416 4380shp
Capacity: 3 + 55
Length: (m) 30.18
Height: (m) 8.64
Blades: 7
Rotor diam.: (m) 24.08
Disc area: (m2) 455.41
Weight: (kgs) Empty: 15138     Max: 33339
Speed: (km/h) Cruise: 278     Max: 315
Range: (km)
Ceiling: (m)     Max: 5659
Rate/Climb: (m/min) 762

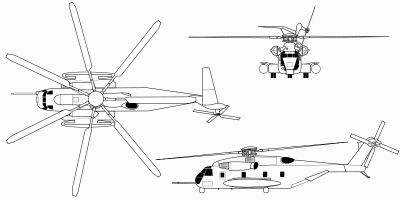

blueprints

List of Operators of Sikorsky CH-53E Super Stallion


From Organisation with model CH-53E Super Stallion
1979
usa US Marine Corps
    S-80 H-53E 180 1979/
1983

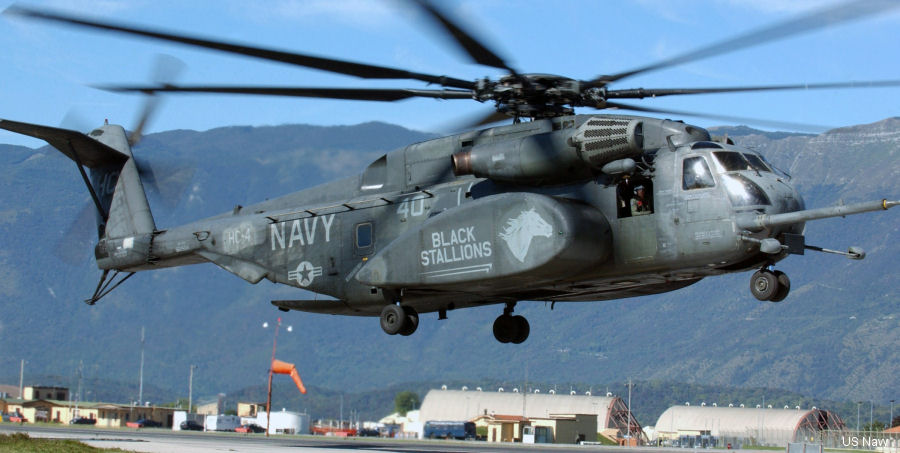

usa US Navy
    1983/95

Construction Numbers on database of CH-53E Super Stallion

180ch-53e
