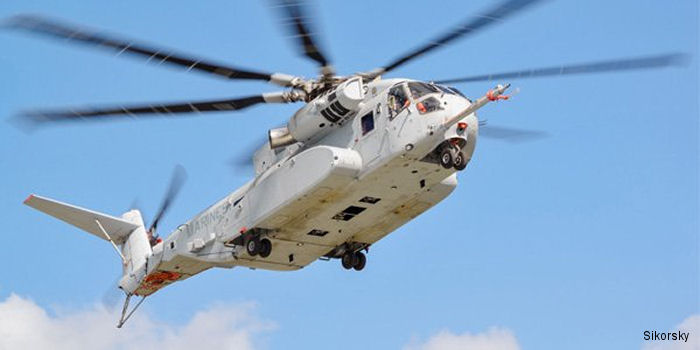

Sikorsky CH-53K King Stallion

Derived from S-80 H-53E
2015










  • Sikorsky CH-53K King Stallion
  • Sikorsky CH-53K King Stallion

Formelly known as CH-53X, the CH-53K is a general redesign of the CH-53E with new engines, new cockpit layout and a wider cargo hold to allow it to carry a Humvee internally resulting in over twice the lift capacity and radius of action of the previous variant.

Selected by the US Marine Corps in 2006, which has 227 on order, was expected to began flight testing by 2011 but was deferred to 2014.

The CH-53K is scheduled to achieve its Initial Operating Capability (IOC) in FY2018.

On May 2013 a $435M contract was awarded for the construction of four System Demonstration Test Article aircraft prototypes (SDTA).

As of June 2013, program expected 196 CH-53K to be produced.

On May 5, 2014 took place the roll-out presentation ceremony where it was unveil the aircraft name King Stallion.
The CH-53K programme suffered a number of difficulties, including the need to re-design the gearbox, which delayed the first flight of the YCH-53K to Oct 2015.
The CH-53K is Sikorsky proposal for the German Heavy Lift Helicopter replacement program.

First helicopter scheduled for official delivery to MCAS New River on May 2018


Specifications


Engine: 3 x GE T408-GE-400 7500shp
Capacity: 5 + 37
Length: (m) 30.2
Height: (m) 8.46
Blades: 7
Rotor diam.: (m) 24
Disc area: (m2) 460
Weight: (kgs) Empty: 15000     Max: 38400
Speed: (km/h) Cruise: 315
Range: (km) 850
Ceiling: (m) 4380
Rate/Climb: (m/min) 762
blueprints

List of Operators of Sikorsky CH-53K King Stallion


From Organisation with model CH-53K King Stallion
2015
usa Sikorsky Helicopters
    2015/
2017
usa US Marine Corps
    2017/

Construction Numbers on database of CH-53K King Stallion or its versions

8ch-53k




Construction Numbers

Help Us

C/NBuilt asYearHistory

EDM - Engineering Development Model

2015 US 168778 : Sikorsky YCH-53K prototype Engineering Development Mode+
Jan16 video reaches 100 knots during test flight
19apr16 lift first external load
05dec17 first dual external load
2016 US 168779 : YCH-53K EDM-2 f/f 22jan16; 14mar16 joined flight test +
2016 US 168780 : YCH-53K EDM-3 f/f 21jun16 at Sikorsky Development Fligh+
07mar18 lift for the first time 36,000 lbs / 16 Ton wit+
08mar18 at NAS Pax River with USMC titles
2016 US 168781 : YCH-53K EDM-4 f/f 31aug16; pictured
30jun17 moves to NAS Patuxent River
US 168781 : 18jan18 asg HX-21, Pax River lifted a for the first tim+
US 168781 : 08mar18 at NAS Pax River with USMC titles

SDTA - System Demonstration Test Article

US 169019 : SDTA-1 Apr18; Sikorsky
US 169020 : SDTA-2; Sikorsky
2018 US 169021 : SDTA-3; Sikorsky
US 169021 : USMC d/d 16may18 at MCAS New River, NC; first CH-53K de+
US 169022 : SDTA-4 Sikorsky
8 C/N.
