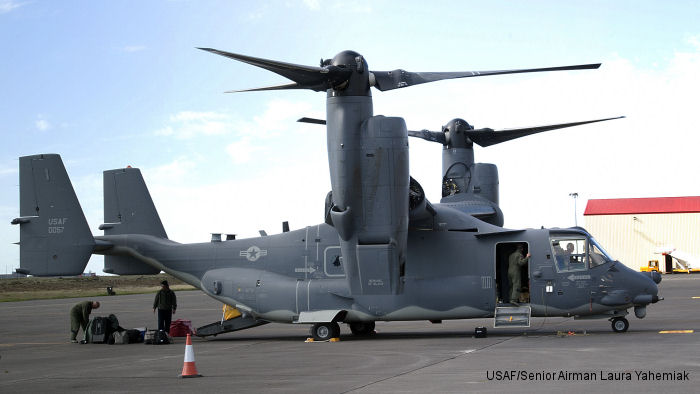

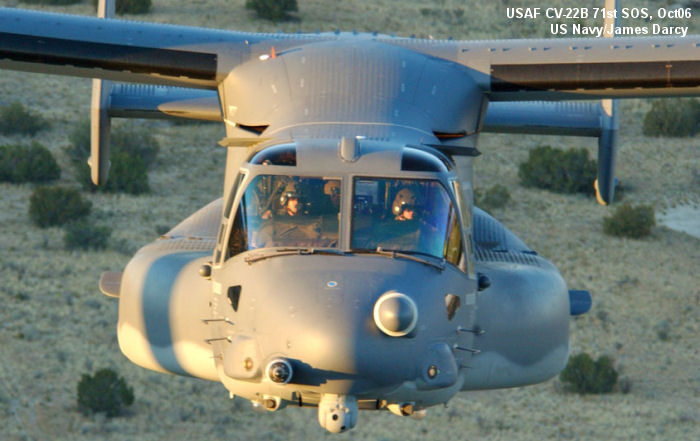

    Bell CV-22B Osprey

    2005








    • Bell CV-22B Osprey
    • Bell CV-22B Osprey

    USAF Special Operations variant equipped with extra fuel tanks and terrain following radar




    Specifications


    Engine: 22 x RR T406 / AE 1107C-Liberty 6150 shp
    Capacity: 4 + 32
    Length: (m) 17.5
    Height: (m) 6.73
    Blades: 6
    Rotor diam.: (m) 11.6
    Disc area: (m2) 212
    Weight: (kgs) Empty: 15032     Max: 27400
    Speed: (km/h) Cruise: 445     Max: 510
    Range: (km) 1800
    Ceiling: (m) 7600
    Rate/Climb: (m/min) 708
    blueprints


    List of Operators of Bell CV-22B Osprey


    From Organisation with model CV-22B Osprey
    2005
    usa US Air Force
        V-22 Osprey 2005/


    Construction Numbers on database of CV-22B Osprey

    53cv-22b




    Construction Numbers

    Help Us

    C/NYearHistory
    Filter
    D1005 US 02-0024
    D1006 US 02-0025
    D1007 US 04-0026
    D1008 US 04-0027
    D1009 US 05-0028
    D1010 US 05-0029
    D1011 US 05-0030
    D1012 2007 US 06-0031
    D1013 2006 US 06-0032
    D1014 2007 US 07-0033
    D1015 2008 US 07-0034
    D1016 US 08-0035
    D1017 US 08-0036
    D1018 2008 US 08-0037
    D1019 US 08-0038
    D1020 US 08-0039
    D1021 2010 US 08-0040
    D1022 2010 US 09-0041
    D1023 2011 US 09-0042
    D1024 2011 US 09-0043
    D1025 2011 US 09-0044
    D1026 US 09-0045
    D1027 2011 US 09-0046
    D1028 2012 US 10-0052
    D1029 2012 US 10-0053
    D1030 2012 US 10-0054
    D1031 2012 US 10-0055
    D1032 US 10-0056
    D1033 US 08-0047
    D1034 US 08-0048
    D1035 2012 US 08-0049
    D1036 US 11-0057
    D1037 US 11-0058
    D1038 2012 US 08-0050
    D1039 US 11-0059
    D1040 US 11-0060
    D1041 US 11-0061
    D1042 2012 US 08-0051
    D1043 US 12-0062
    D1044 US 12-0063
    D1045 US 12-0064
    D1046 US 12-0065
    D1047 US 12-0066
    D1048 US 13-0067
    D1049 US 13-0068
    D1050 US 13-0069
    D1051 US 14-0070
    D1052 US 14-0071
    D1053 US 14-0072
    D1054 US 14-0073
    D1055 US 14-0074
    D1056 US 14-0075
    US 16-0076
    53 C/N.
