  • McDonnell Douglas MD900 Explorer

    1992










    McDonnell Douglas MD900 Explorer

    The Explorer is a light twin engine NOTAR ( No Tail Rotor ) utility helicopter originally developed by McDonnell Douglas from 1989 but it is currently produced by MD Helicopters.

    First flight took place on December 18 1992 by the second aircraft (N900MD). FAA certification was granted on December 2 1994.

    It could be powered by either a twin Pratt & Whitney Canada PW206E or PW207E turbshafts engines

    The original MD 900 was succeeded by the MD902 in 1997. The MD 901 was offered powered by two Turbomeca Arrius but none were ordered.

    An armed version, named MH-90 Enforcer, was evaluated by the US Coast Guard but no further orders were received




    Specifications


    Engine: 2 x PW C PW206E 646 shp
    Capacity: 1 + 7
    Length: (m) 9.86
    Height: (m) 3.66
    Blades: 5
    Rotor diam.: (m) 10.31
    Disc area: (m2) 83.5
    Weight: (kgs) Empty: 1450     Max: 3000
    Speed: (km/h) Cruise: 240     Max: 250
    Range: (km) 300
    Ceiling: (m) 6000
    Rate/Climb: (m/min)

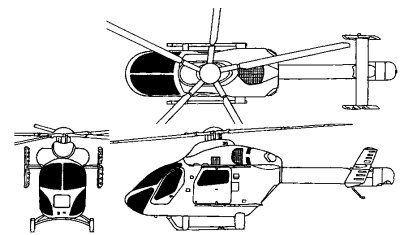

    blueprints


    Derivatives & Versions


    ModelYearHistory

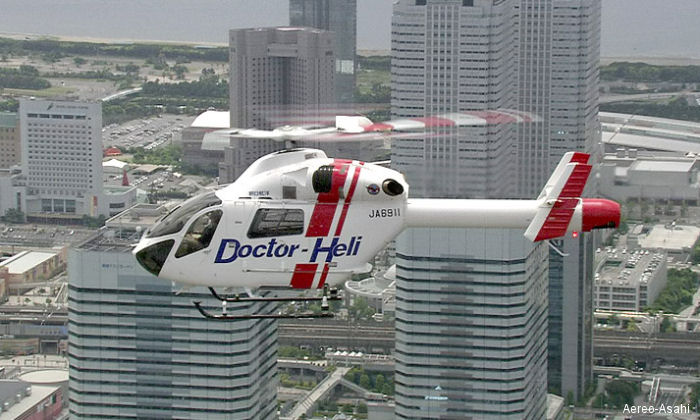

    MD902 Explorer 1997 NOTAR Explorer enhanced version by MD Helicopters with Category A approval and additional engine isolation features and changes to the Integrat ...
    MDh MD969 Combat Explorer 2019 Fist unveiled at Heli-Expo 2019 in Atlanta, the MD969 Combat Aircraft is a 8-seat weaponized configuration of the light twin-engine MD902 Explore ...
