    MH-60R Seahawk

    1999

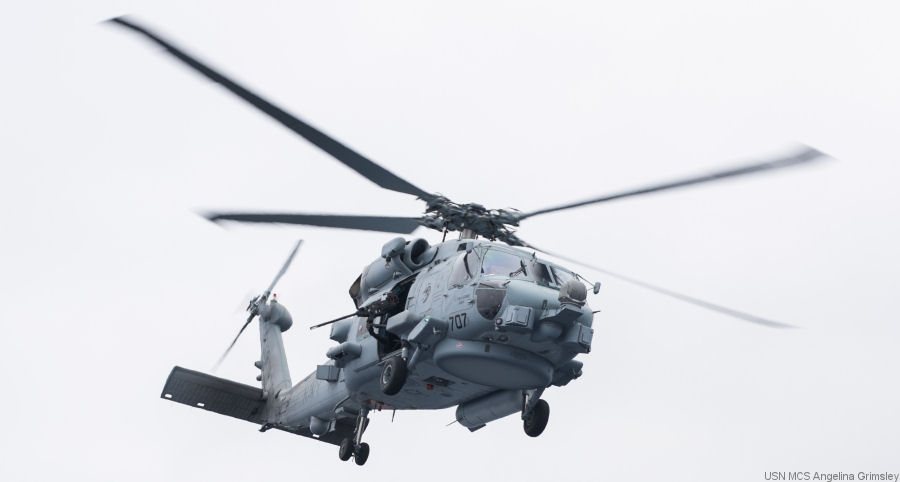

    Sikorsky MH-60R Seahawk

    The MH-60R is the newest US Navy Seahawk replacing both the SH-60B and SH-60F as their primary antisubmarine helicopter in the also new HSM squadrons. It was originally envisioned as a re-built aircraft, but a cost/benefit analysis showed that it made more sense to build new ones.

    It shares a common cockpit with the MH-60S and its roles includes anti-surface warfare, surveillance, communications relay, combat search and rescue, naval gunfire support and logistics support.

    The first production helicopter delivered to the US Navy on August 2005.

    As of 2012, the US Navy has seven operational carrier air wing squadrons, two expeditionary squadrons and two fleet replacement squadrons operating the MH-60R, with 85 flying operationally and 44 in training squadrons. 291 MH-60R aircraft are expected by 2017.




    Specifications


    Engine: 2 x GE T700-GE-401C 1890 shp
    Capacity: 3
    Length: (m) 19.76
    Height: (m) 5.1
    Blades: 4
    Rotor diam.: (m) 16.35
    Disc area: (m2) 161
    Weight: (kgs)     Max: 10600
    Speed: (km/h)     Max: 267
    Range: (km) 800
    Ceiling: (m) 3500
    Rate/Climb: (m/min)
    blueprints


    List of Operators of Sikorsky MH-60R Seahawk


    From Organisation with model MH-60R Seahawk
    1983
    usa US Navy
        S-70 H-60 1983/
    2013
    australia Fleet Air Arm (RAN)
        24 2013/
    2016
    denmark Flyvevåbnet
        2016/
    2018
    saudi arabia Royal Saudi Navy
        2018/
    2020

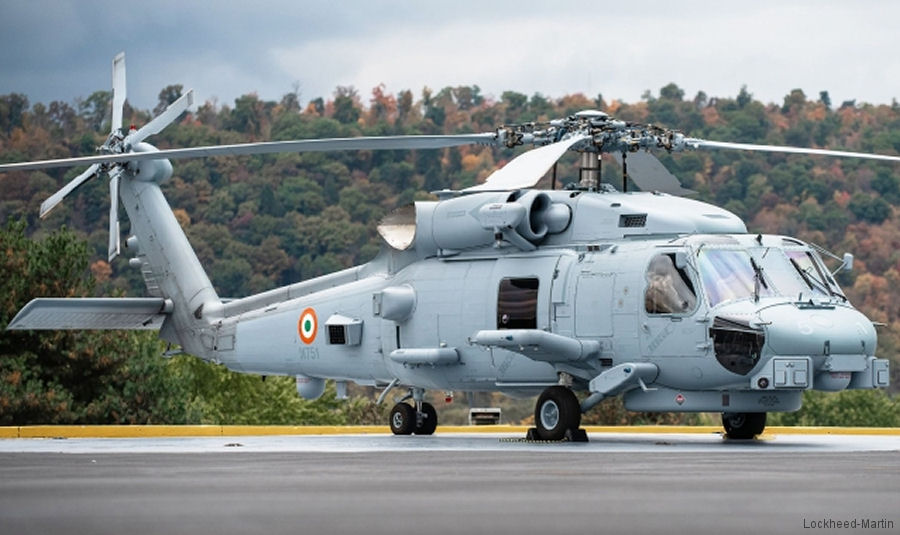

    india Bharatiya Nau Sena
        2020/
    Construction Numbers on database of MH-60R Seahawk

    278mh-60r
