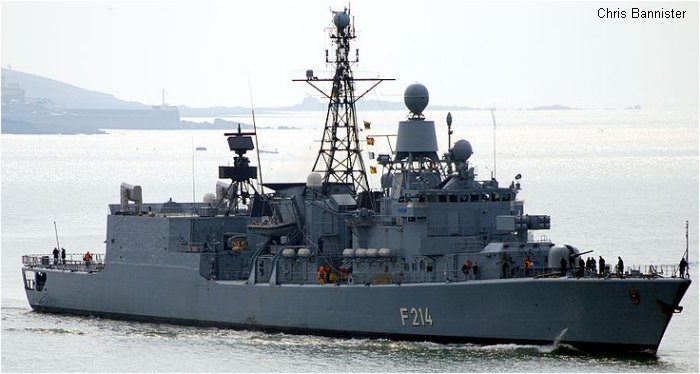

    F214 Lübeck

    Data

    Login to Edit

    IMO:
    MMSI:
    Flight Deck: LU
    Call Sign: DRAO
    See Also: FF F 120 Köln class F224


    Events

    Help Us

    Add new event for this unit
    Year:
    Month: <- (1/12) Optional
    Day: <- (1/31) Optional
    Text:

    Add Event

    History of DE F214 Lübeck

    1987-jun-1Laid down
    1987-oct-15Launched
    1990-mar-19Commissioned
    1998-apr-4Port VisitNLAmsterdam Harbour Oostelijke Handelskade Apr98 STANAVFORMED embarked Lynx 83+05 : 83+09
    2007-may-2AircraftAccident While operating off Plymouth (UK), 702 Sq Lynx ZD249 failed to disengage its harpoon during take off. Emergency landing back on board.
    2008-oct-4DeploymentUKNorth Western Approaches Exercise Joint Warrior 08-2 participated in bi-annual multi-national exercise off Scottish coast, until 17 Oct
    2015-jun-5Deployment BALTOPS 15 deployed to Baltic Sea for BALTOPS 2015.
    2017-jul-14NEWS DENordholz Royal Navy Wildcat Deployed on German Frigate

    Specifications



        from F 122 Bremen class
    220crew
    3680full load (tn)
    130.50length (m)
    14.60beam (m)
    6.30draught (m)
    4000range (nm)
    30max speed (knots)
    2Naval Engine diesel - MTU
    2Naval Engine gas turbine - General Electric LM2500
    1Naval Engine propulsion system: CODOG
    2Missile Launcher Mk 141 quad Harpoon
    2Missile Launcher Mk 49 21-cell RAM
    1Missile Launcher Mk 29 8-cell Sea Sparrow
    2Naval Gun Mauser MLG 27 mm
    1Naval Gun Oto Melara 76 mm
    2Torpedo Launchers Mk 32 triple-tube 324mm
    1Chaff and decoys AN/SLQ-25 Nixie
    2Chaff and decoys Breda SCLAR
    1Aids Beartrap (helicopter land)
    1Naval Radar air search radar TRS-3D
    1Naval Radar fire direction radar STIR 180
    1Naval Radar fire direction radar WM25
    1Naval Radar navigation radar Nucleus 5000
    1Sonar hull mounted sonar AN/SQS-23

    Aircraft



        Typical Max
    DE German Navy Westland Super Lynx mk88a 12


    The Max option implies only aircraft of this model onboard

    Builder



    DE Nordseewerke, Emder Hafen
