  • Agusta AB212

    AB212 ASW

    1973

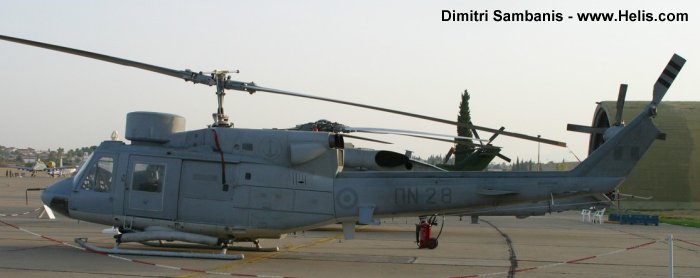

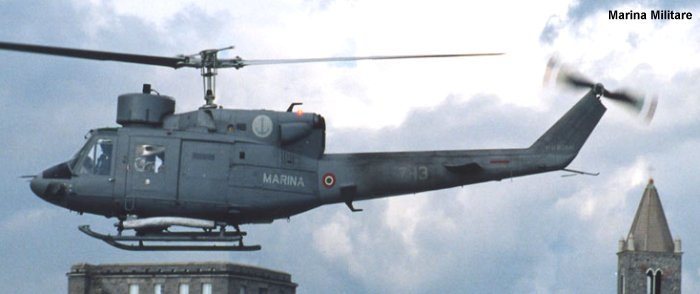

    Agusta AB212 ASW

    Shipborne based variant for Anti-Submarine Warfare (ASW), Anti-surface warfare (ASuW) and Search and Rescue (SAR). Equipment includes MM/APS-705 radar on a very distinctive radome, a Bendix AQS-13B(D) sonar, MAD (Magnetic Anomaly Detector) AN/ASQ-81, 16 sonar buoys, FLIR (Forward looking infrared) and the rescue hoist for SAR missions. Airframes rerolled for amphibious or utility support have these systems removed




    Specifications


    Engine: 1 x PW C PT6T-3BE 1800 shp
    Capacity: 2 + 14
    Length: (m) 17.43
    Height: (m) 3.83
    Blades: 2
    Rotor diam.: (m) 14.64
    Disc area: (m2) 168
    Weight: (kgs) Empty: 2960     Max: 5100
    Speed: (km/h) Cruise: 186     Max: 220
    Range: (km) 430
    Ceiling: (m) 5300
    Rate/Climb: (m/min) 532
    blueprints


    List of Operators of Agusta AB212 ASW


    From Organisation with model AB212 ASW
    1973
    italy Marina Militare Italiana
        AB212 68 1973/
    1974
    spain Arma Aerea de la Armada Española
        AB212 14 1974/
    1977

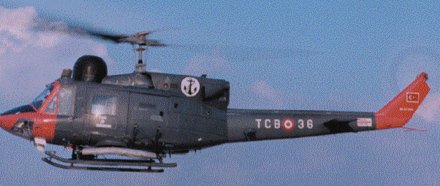

    turkey Türk Deniz Kuvvetleri
        AB212 15 1977/
    1978
    iran hava darya
        AB212 10 1978/

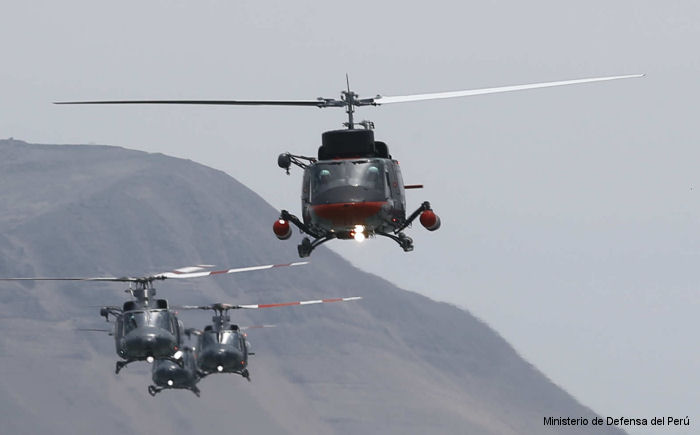

    peru Marina de Guerra del Peru
        6 1978/
    1979
    greece Elliniko Polemiko Nautiko
        AB212 13 1979/
    1980
    venezuela Armada de Venezuela
        9 1980/
    Construction Numbers on database of AB212 ASW

    128ab212asw
