AgustaWestland AW139M

2011 · Twin-engine medium turbine helicopter

History C/N News

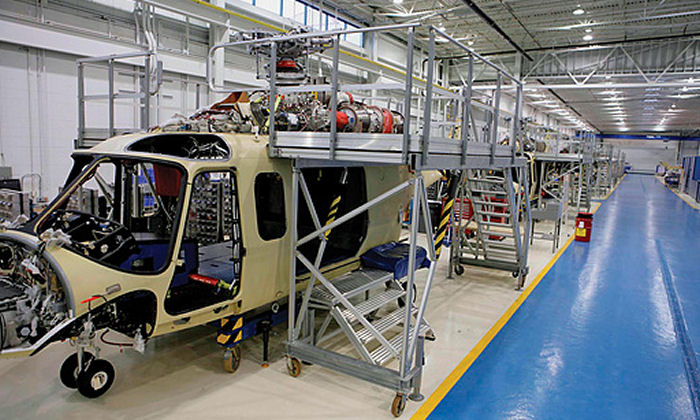

The AW139M designation was first used for the customized military version for the US Air Force Common Vertical Lift Support Program or CVLSP to seek a replacement for the UH-1N . Manufactured in the Philadelphia facility and tailored with US military technology from suppliers across the nation, the AW139M includes a high-definition FLIR, infrared detection and countermeasures and heavy duty landing gear.

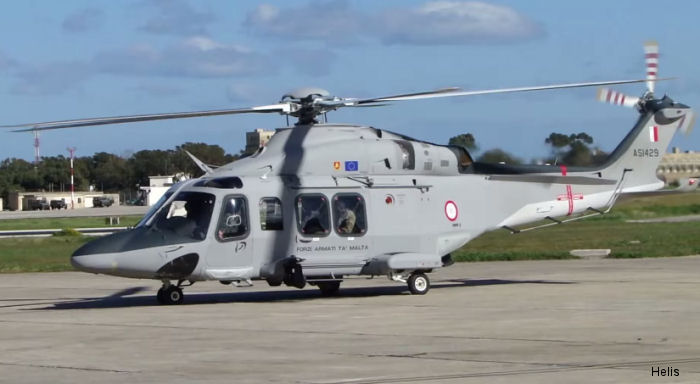

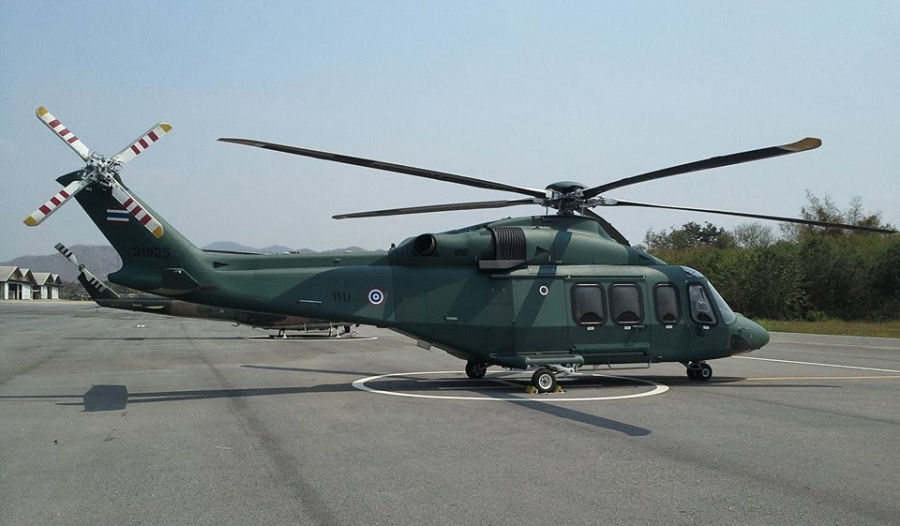

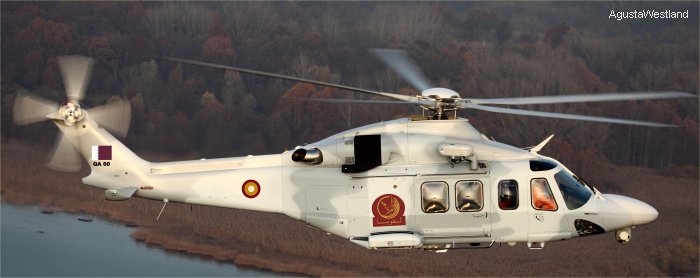

The Italian Air Force was the first operator of an AW139 dedicated military variant, with the first of their HH-139A helicopters delivered in early 2012. Since then, military-tailored variants of the helicopter have been supplied to Egypt, Qatar, Pakistan, Thailand, and Malta, in most cases for search and rescue missions.

In 2018 won the USAF competition in a joint-venture with Boeing as the MH-139A Grey Wolf.


From 2020, the Italian Air Force began introducing the HH-139B, an enhanced variant of the HH-139 helicopter, with a total of 17 aircraft delivered. The “B” version represents a more capable and heavier evolution of the platform, specifically engineered to improve operational effectiveness in demanding and extreme environments.

Compared to earlier versions, the HH-139B features an increased maximum takeoff weight, rising from 6,800 kg to 7,000 kg, allowing for greater payload capacity and extended mission flexibility. A key upgrade is the installation of a dual rescue hoist system, which enhances both redundancy and safety during winching operations, a critical aspect of search and rescue missions.

The aircraft is also equipped with advanced avionics, including updated Phase 8 mission software, a redesigned cabin mission console, and improved radar and electro-optical systems. These enhancements provide crews with greater situational awareness and mission coordination capabilities, reinforcing the HH-139B’s role in both conventional search and rescue and more complex operational scenarios.

Specifications

Engine2 x Pratt & Whitney Canada PT6C-67C 1679 shp
Length (m)16
Height (m)4
Blades5
Rotor diam. (m)13
Weight (kgs)Empty: 4200 Max: 6800
Speed (km/h)Cruise: 306 Max: 310
Range (km)1061
Ceiling (m)6100
Rate/Climb (m/min)654
blueprints AW139M

Operators

2005-2016 IT AgustaWestland Italy AW139
2007- US AgustaWestland Philadelphia AW139
2009- QA Qatar Emiri Air Force AW139
2012- EG Egyptian Air Force
2012 IT Aeronautica Militare Italiana AW139
2012- IT Aeronautica Militare Italiana

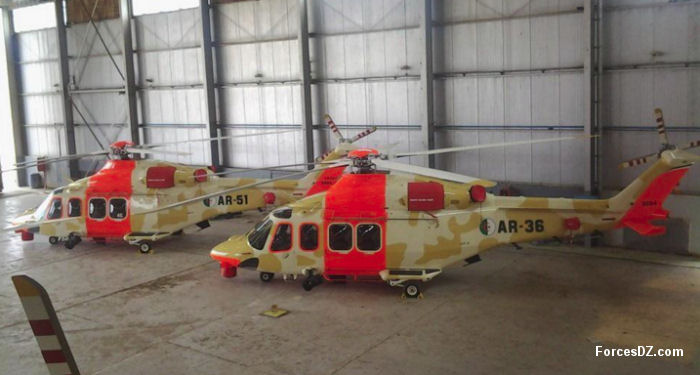

2014- DZ Al Quwwat Aljawwiya Aljaza Eriiya
2014- MT Forzi Armati ta' Malta
2014- TH Royal Thai Army
2016- IT Leonardo Italy AW139
2016- PK Pakistan Army Aviation
2017- PK Pakistan Air Force
2019- KE Kenya Air Force
2027- EC Armada del Ecuador
