  • Piasecki H-21

    Derived from PV-17
    1952







    Model

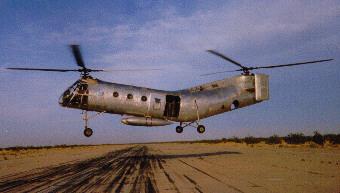

    Piasecki H-21

    The Piasecki PD-22 (H-21) was an improved version of the HRP-2 Rescuer. It was the 4th tandem-rotor design from Piasecki. Because of its shape, covering the tail rotor transmision shaft, it was commonly called the Flying Banana. The H-21 had a fully articulated, three bladed, counter-rotating rotor system, with twin vertical fins fitted at the tail. Early versions were powered by a single Curtis-Wright R1820-103 Cyclone 1150 hp supercharged piston engine. It held a side by side crew of 2, in a dual-control cabin. Equipped with a hoist and a dorsal quick-release cargo sling, on a fixed tricycle undercarriage, it offered optional wheels, skis, or floats. The H-21 first flew on 11 Apr 1952. 707 of all versions were built, including two H-21D experimental models with a single and a twin turboshaft, replacing the piston Cyclone.




    H-21 News


    Piasecki H-21 Flying Banana at the Helicopter Museum, 01-Feb-16 : A former French Army Piasecki H-21C Workhorse "Flying Banana" twin rotor helicopter arrived at the British Helicopter Museum in Weston-super-Mare




    Derivatives & Versions


    ModelYearHistory
    XH-21
    YH-21 1950 The YH-21 / PD-22 was nicknamed the Workhorse by the US Air Force, who received 18 from Feb - Aug 1953. This was the first production batch of H ...
    H-21A 1951 The US Air Force followed the YH-21 order with an order for 38 H-21As [51-1523..15269 and 52-8487..8492]. The last six H-21As were delivered to ...
    H-21B 1952 Following the A model, the USAF ordered 168 H-21Bs [51-15854..15880, 52-8665..8679, 52-8681..8709, 53-4322..4402, 54-4000..4008, 55-5127..5131, a ...
    H-21C 1952
    B-V V42 1952 Vertol Model 42A. Related to H-21B and C models. The customer was Rick Helicopters of Canada, 10 were delivered; they were Commercial H-21 conv ...
    B-V V43 1956 Vertol 43: Customers were France and Germany, with 139 delivered between May 1956 to May 1960. They are listed as a utility model, for both comm ...
    H-21D 1957 Two H-21B used for engine test, 1958-1960. Piston engine replaced by either one or two gas turbine engine of two different marks. Both later re ...
    B-V V44 1957 Civil utility version of H-21B/C for general use. Certified for both civil & military use. Three sub models: V-44A/B/C depending on engine, avio ...

    List of Operators of Piasecki H-21


    From Organisation with model H-21
    1952
    usa US Air Force
        214 1952/74
    1954
    usa US Army Aviation
        334 1954/66
    1955
    canada Royal Canadian Air Force (1945-1968)
        20 1955/
    1956
    france Aéronautique Navale
        1956/60
    japan Japan Air Self-Defense Force
        10 1956/
    Unknown!
    Help

    canada Spartan Air Services Ltd
    france Aviation Légère de l'Armée de Terre
    Construction Numbers on database of H-21 or its versions

    1h-21a
    29h-21b
    10H-21C
    2h-21d
