  • JP Yamagumo class

    やまぐも型護衛艦

    JP Akizuki class
    Destroyer
    ships



    1966


    Destroyer Yamagumo class

    This class introduced the ASROC antisubmarine system and diesel machinery resulting in impresive improvements from the previous Akizuki class. Three ships were built when production shifted to the DASH QH-50 capable Minegumo class but when those aircraft were retired production resumed.

        Derivatives / Succeeded by
    JP Minegumo class 1967


    Specifications

    Login to Edit


    220crew
    2700full load (tn)
    115length (m)
    11.80beam (m)
    4draught (m)
    27max speed (knots)
    6Naval Engine diesel
    2Naval Gun Mark 33 3/50 inch (twin 76 mm)
    1Rocket Launcher ASW mortar 375 mm
    1Torpedo Launchers Mk 16 8-cell ASROC
    2Torpedo Launchers Mk 32 triple-tube 324mm
    1Sonar hull mounted sonar AN/SQS-23

    Aircraft

    Login to Edit

        Typical Max
    No Landing platform



    Shipyards

    Login to Edit


    JP Maizuru - 1nm NW of Maizuru City, Kyoto1
    JP Mitsui Tamano - 1
    JP Sumitomo Uraga - Uraga4


    List of Ships

    Login to Edit

        Sorted by Year Filter:     Hide Transfers     Hide deriv.
    JPJMSDFDDK 113JDS Yamagumo19661995
    JPJMSDFDDK 114JDS Makigumo19661995
    JPJMSDFDDK 115JDS Asagumo19671998
    JPJMSDFDD 116Minegumo class JDS Minegumo19681999
    JPJMSDFDD 117Minegumo class JDS Natsugumo19691999
    JPJMSDFDD 118Minegumo class JDS Murakumo19702000
    JPJMSDFDDK 119JDS Aokumo19722003
    JPJMSDFDDK 120JDS Akigumo19742005

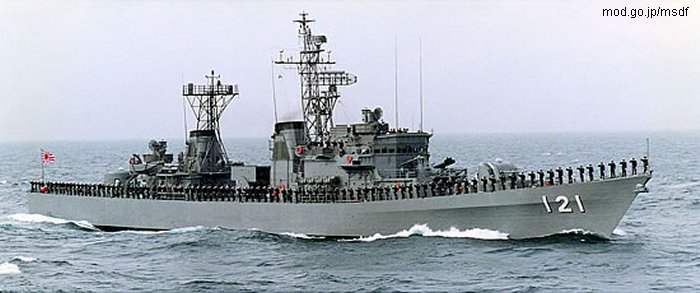

    JPJMSDFDDK 121JDS Yuugumo19782005

    9 units


    Events

    Login to Edit

    1964-mar-23Laid downJP DDK 113 JDS Yamagumo
    1964-jun-10Laid downJP DDK 114 JDS Makigumo
    1965-feb-27LaunchedJP DDK 113 JDS Yamagumo
    1965-jun-24Laid downJP DDK 115 JDS Asagumo
    1965-jul-26LaunchedJP DDK 114 JDS Makigumo
    1966-jan-29CommissionedJP DDK 113 JDS Yamagumo
    1966-mar-19CommissionedJP DDK 114 JDS Makigumo
    1966-nov-25LaunchedJP DDK 115 JDS Asagumo
    1967-aug-29CommissionedJP DDK 115 JDS Asagumo
    1970-oct-2Laid downJP DDK 119 JDS Aokumo
    1972-jul-7Laid downJP DDK 120 JDS Akigumo
    1972-nov-25CommissionedJP DDK 119 JDS Aokumo
    1973-mar-30LaunchedJP DDK 119 JDS Aokumo
    1973-oct-23LaunchedJP DDK 120 JDS Akigumo
    1974-jul-24CommissionedJP DDK 120 JDS Akigumo
    1976-feb-4Laid downJP DDK 121 JDS Yuugumo
    1977-may-21LaunchedJP DDK 121 JDS Yuugumo
    1978-mar-24CommissionedJP DDK 121 JDS Yuugumo
    1991Fate: transferedJP DDK 119 JDS Aokumo as TV-3512
    1991-jun-20Fate: transferedJP DDK 113 JDS Yamagumo as TV 3506
    1991-jun-20Fate: transferedJP DDK 114 JDS Makigumo as TV 3507
    1993-oct-18Fate: transferedJP DDK 115 JDS Asagumo ASU 7018
    1995DecommissionedJP DDK 113 JDS Yamagumo
    1995DecommissionedJP DDK 114 JDS Makigumo
    1998DecommissionedJP DDK 115 JDS Asagumo
    1999Fate: transferedJP DDK 120 JDS Akigumo as TV 3514
    2003DecommissionedJP DDK 119 JDS Aokumo
    2005DecommissionedJP DDK 120 JDS Akigumo
    2005DecommissionedJP DDK 121 JDS Yuugumo
