  • PT Baptista de Andrade class

    PT Joao Coutinho class
    Corvette
    ships



    1974


    Corvette Baptista de Andrade class

    Updated version of the Joao Coutinho class also built in Spain by Bazan but with modern armament and sensors and an helicopter pad although by that time the air naval arm was integrated into the Forca Aerea Portuguesa

    Specifications

    Login to Edit


    113crew
    1400full load (tn)
    81length (m)
    10.30beam (m)
    3.30draught (m)
    5000range (nm)
    24max speed (knots)
    2Naval Engine diesel - SEMT Pielstick
    1Naval Gun Creusot-Loire 100 mm
    2Naval Gun single 40 mm
    2Torpedo Launchers Mk 32 triple-tube 324mm

    Aircraft

    Login to Edit

        Typical Max
    Landing platform only. No hangar
    PT Portuguese Air Force SNIA Alouette III 01

    The Max option implies only aircraft of this model onboard

    Shipyards

    Login to Edit


    ES Bazan Ferrol - Ria de Ferrol4


    List of Ships

    Login to Edit

        Sorted by Year Filter:     Hide Transfers     Hide deriv.
    PTPortuguese NavyF486NRP Baptista de AndradeCTFE19742007

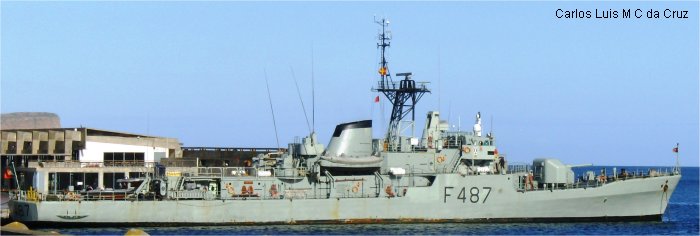

    PTPortuguese NavyF487NRP Joao RobyCTFG1975--
    PTPortuguese NavyF488NRP Afonso CerqueiraCTFH1975--
    PTPortuguese NavyF489NRP Oliveira e CarmoCTFI19761999


    4 units


    Events

    Login to Edit

    1972Laid downPT F486 NRP Baptista de Andrade
    1972Laid downPT F487 NRP Joao Roby
    1972Laid downPT F489 NRP Oliveira e Carmo
    1973Laid downPT F488 NRP Afonso Cerqueira
    1973-marLaunchedPT F486 NRP Baptista de Andrade
    1973-jun-3LaunchedPT F487 NRP Joao Roby
    1973-oct-6LaunchedPT F488 NRP Afonso Cerqueira
    1974-febLaunchedPT F489 NRP Oliveira e Carmo
    1974-nov-19CommissionedPT F486 NRP Baptista de Andrade
    1975-mar-18CommissionedPT F487 NRP Joao Roby
    1975-jun-26CommissionedPT F488 NRP Afonso Cerqueira
    1976-junCommissionedPT F489 NRP Oliveira e Carmo
    1991Fate: transferedPT F486 NRP Baptista de Andrade reserve
    1994Fate: transferedPT F488 NRP Afonso Cerqueira reserve
    1999DecommissionedPT F489 NRP Oliveira e Carmo
    2000-febRefitPT F486 NRP Baptista de Andrade reduction in fighting capacity to remodel for humanitarian and rescue missions
    2007DecommissionedPT F486 NRP Baptista de Andrade
    2007-jul-6Port VisitPT F487 NRP Joao Roby Vlissingen, Netherlands for navy days 2007. For Michiel de Ruyter 400th anniversary.
    2007-jul-6Port VisitPT F488 NRP Afonso Cerqueira Vlissingen, Netherlands for navy days 2007. For Michiel de Ruyter 400th anniversary.
    2012-sep-15PT F488 NRP Afonso Cerqueira Seen in Ponta Delgada harbour, Azores islands
    2012-oct-30Fate: sunkPT F489 NRP Oliveira e Carmo Sunk at Portimao as artificial reef
