  • AR MEKO 360H2 class

    DE MEKO 360 class
    Destroyer
    ships



    1983

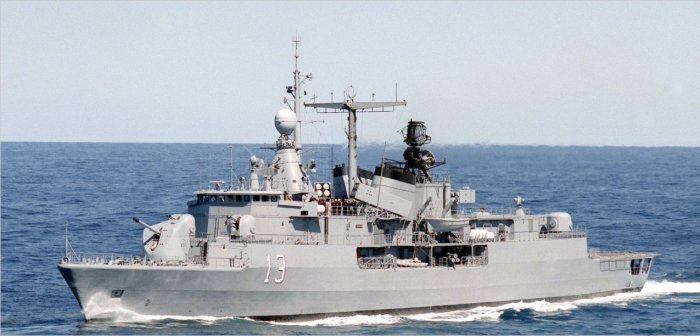

    Destroyer MEKO 360H2 class

    The Almirante Brown class is classified as Destroyers by the Argentine Navy

    Specifications

    Login to Edit


    200crew
    3360full load (tn)
    126length (m)
    14beam (m)
    5.80draught (m)
    4000range (nm)
    30max speed (knots)
    2Naval Engine gas turbine - Rolls Royce Olympus
    2Naval Engine gas turbine - Rolls Royce Tyne
    2Naval Engine propulsion system: COGAG
    1Missile Launcher 8-cell Albatros
    8Missile Launcher MM40 Exocet
    1Naval Gun Otobreda 127 mm
    4Naval Gun twin 40 mm
    2Torpedo Launchers ILAS triple-tube 324mm
    1Naval Radar air search radar DA08
    1Naval Radar fire direction radar WM25
    1Naval Radar navigation radar DECCA 1226
    1Naval Radar navigation radar ZW-06
    1Sonar hull mounted sonar Krupp-Atlas 80

    Aircraft

    Login to Edit

        Typical Max
    AR Argentine Navy EC AS555SN Fennec 2 12


    The Max option implies only aircraft of this model onboard

    Shipyards

    Login to Edit


    DE Blohm + Voss - 4


    List of Ships

    Login to Edit

        Sorted by Year Filter:     Hide Transfers     Hide deriv.
    ARArgentine NavyD-10ARA Almirante BrownLOBK1983--
    ARArgentine NavyD-11ARA La ArgentinaLOAM1983--
    ARArgentine NavyD-12ARA HeroinaLOLA1983--
    ARArgentine NavyD-13ARA SarandiLOAO1984--


    4 units


    Events

    Login to Edit

    1980-sep-8Laid downAR D-10 ARA Almirante Brown
    1981-mar-28LaunchedAR D-10 ARA Almirante Brown
    1981-mar-30Laid downAR D-11 ARA La Argentina
    1981-aug-24Laid downAR D-12 ARA Heroina
    1981-sep-25LaunchedAR D-11 ARA La Argentina
    1982-feb-17LaunchedAR D-12 ARA Heroina
    1982-mar-9Laid downAR D-13 ARA Sarandi
    1982-aug-31LaunchedAR D-13 ARA Sarandi
    1983-mar-28CommissionedAR D-10 ARA Almirante Brown
    1983-aug-4CommissionedAR D-11 ARA La Argentina
    1983-nov-7CommissionedAR D-12 ARA Heroina
    1984-apr-23CommissionedAR D-13 ARA Sarandi
    1990-sep-25DeploymentAR D-10 ARA Almirante Brown Desert Shield, Desert Storm. Alouette III 0681/3-H-109 embarked.
    1991-apr-25AR D-10 ARA Almirante Brown returned home
    2003DeploymentAR D-13 ARA Sarandi with USS Enterprise during Solid Step
    2003RefitAR D-13 ARA Sarandi at Norfolk for Solid Step
    2004AR D-13 ARA Sarandi accidentally hole Brazilian frigate Rademaker during Fraterno
    2006RefitAR D-11 ARA La Argentina flight deck extension for Sea King
