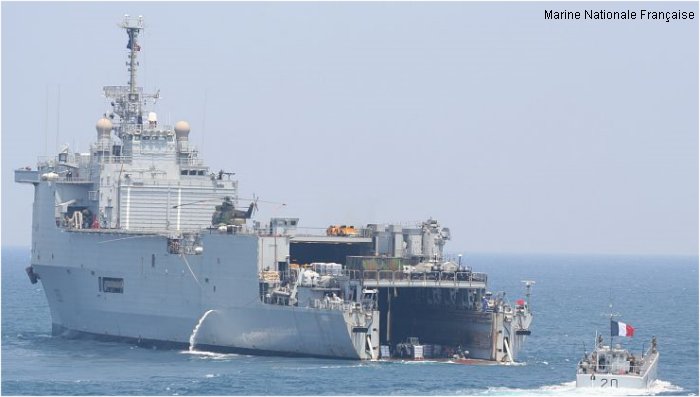

    Landing Ship/Platform Dock Foudre class

    Landing platform dock ships known as TCD (Transport de Chalands de Debarquement) in french service. Their main missions are the amphibious assault of infantry and armoured vehicles, mobile logistic support for naval forces and humanitarian missions providing hospital facilities for large-scale medical and evacuation operations. The flight deck can accommodate up to seven Super Puma helicopters having three landing spots whilest the hangar has capacity for two Super Frelon or up to four Super Puma.

    Specifications

    Login to Edit


    160crew
    450troops
    11300light (tn)
    12400full load (tn)
    168length (m)
    23.50beam (m)
    5.20draught (m)
    11000range (nm)
    21max speed (knots)
    20800power (shp)
    2Naval Engine diesel - SEMT Pielstick
    3Missile Launcher Simbad twin launcher
    3Naval Gun single 30 mm
    1Naval Radar air search radar DRBV-21A Mars
    1Naval Radar navigation radar Racal Decca RM 1229
    1Naval Radar surface search radar Racal Decca 2459

    Aircraft

    Login to Edit

        Typical Max
    FR French Navy SA SE3210 Super Frelon 02
    FR French Army Light Aviation EC AS532UL Cougar 74
    CL Chilean Navy SNIA AS332 Super Puma 07
    BR Brazilian Navy EC EC725 Caracal 07

    The Max option implies only aircraft of this model onboard

    Shipyards

    Login to Edit


    FR DCNS - Brest - 2


    List of Ships

    Login to Edit

        Sorted by Year Filter:     Hide Transfers     Hide deriv.
    FRFrench NavyL9011FoudreFAFD - FD19902011
    CL Chilean Navy LSHD-90 Sargento Aldea 2011--
    FRFrench NavyL9012SirocoFASI19982015
    BR Brazilian Navy G40 NDM Bahia 2015--




    2 units


    Events

    Login to Edit

    1984-nov-5OrderedFR L9011 Foudre
    1986-mar-26Laid downFR L9011 Foudre
    1988-nov-19LaunchedFR L9011 Foudre
    1990-dec-7CommissionedFR L9011 Foudre
    1994-apr-11OrderedFR L9012 Siroco
    1995-oct-9Laid downFR L9012 Siroco
    1996-dec-14LaunchedFR L9012 Siroco
    1998-dec-21CommissionedFR L9012 Siroco
    2009-jan-17AircraftFR L9011 Foudre AS532 Super Puma crash off the coast of Gabon
    2010-janDeploymentFR L9012 Siroco Operation Panlake sent to Haiti as part of International assistance programme following the magnitude 7.0 earthquake
    2010-jun-13FR L9011 Foudre Participated with 100 years AERONAVALE with R91 Charles de Gaulle at Rade d Hyeres.
    2011-jun-19HomeportFR L9011 Foudre Toulon
    2011-dec-23DecommissionedFR L9011 Foudre
    2011-dec-23Fate: transferedFR L9011 Foudre to Chile as LSHD Sargento Aldea
    2011-dec-28CommissionedCL LSHD-90 Sargento Aldea ex L9011 Foudre
    2015-julDecommissionedFR L9012 Siroco
    2015-aug-7CommissionedBR G40 NDM Bahia
    2016-aug-3AircraftBR G40 NDM Bahia First landing of a Seahawk done by N-3036
