    Bell CH-146 Griffon

    1994










    Bell CH-146 Griffon

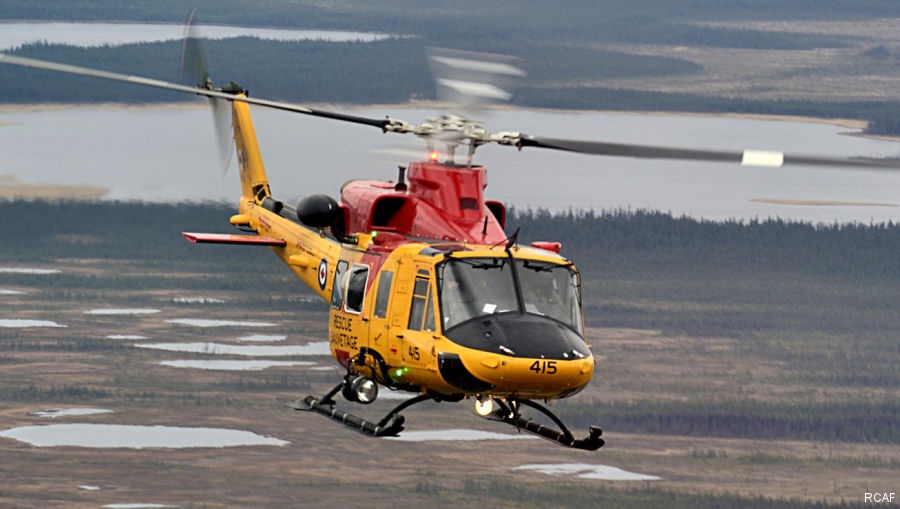

    100 Bell 412CF built in Canada for the Armed Forces in 2 configurations: Combat Support Squadron (CSS) for SAR (painted yellow) and and the Utility Tactical Transport Helicopter (UTTH)




    CH-146 Griffon News


    Gastops ChipCHECK Devices for RCAF CH-146 Griffon, 01-Jun-23 : #ChipCHECK Gastops to provide seven ChipCHECK, a portable and automated debris analysis tool, to support the Royal Canadian Air Force (RCAF) fleet of 85 CH-146 Griffon (Bell 412CF) helicopters

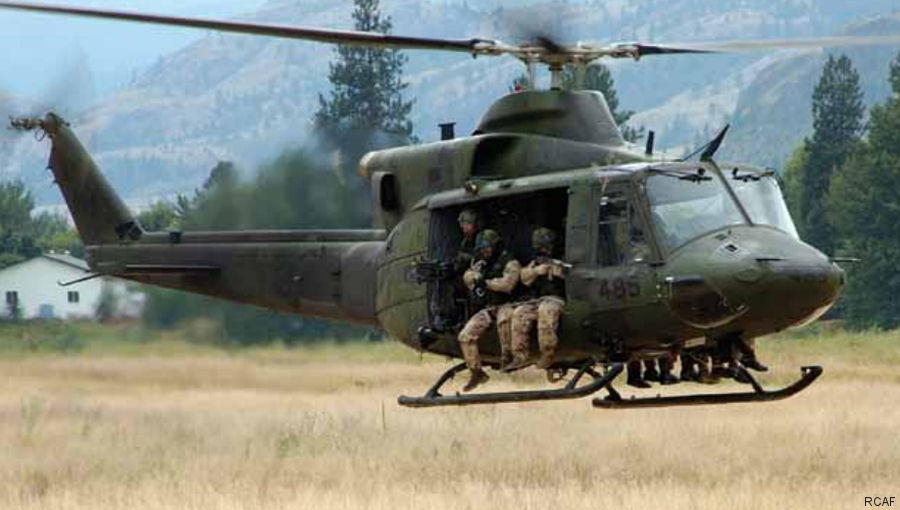

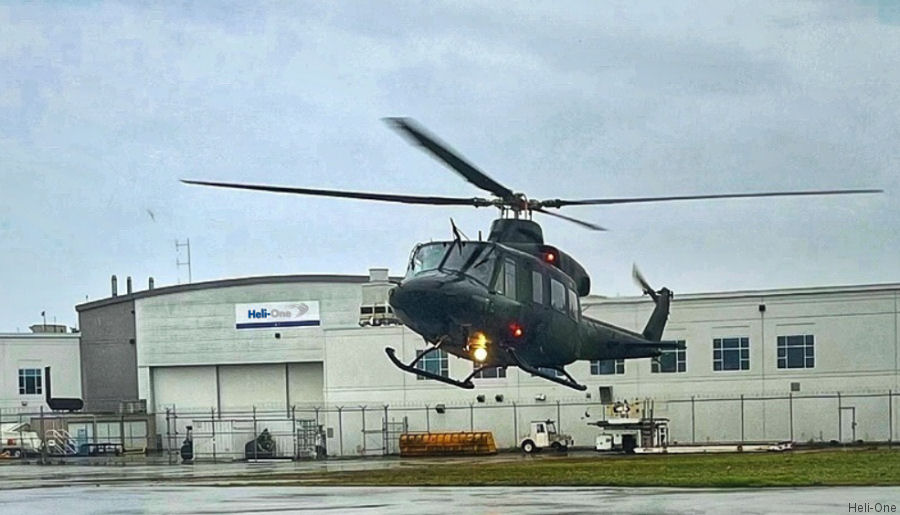

    New Partners for Bell CH-146 Griffon Upgrade, 26-Apr-23 : #Griffon Bell Textron Canada awarded subcontracts to Alpine Aerotech and Heli-One for the Royal Canadian Air Force (RCAF) Bell CH-146 Griffon Limited Life-Extension (GLLE) upgrade

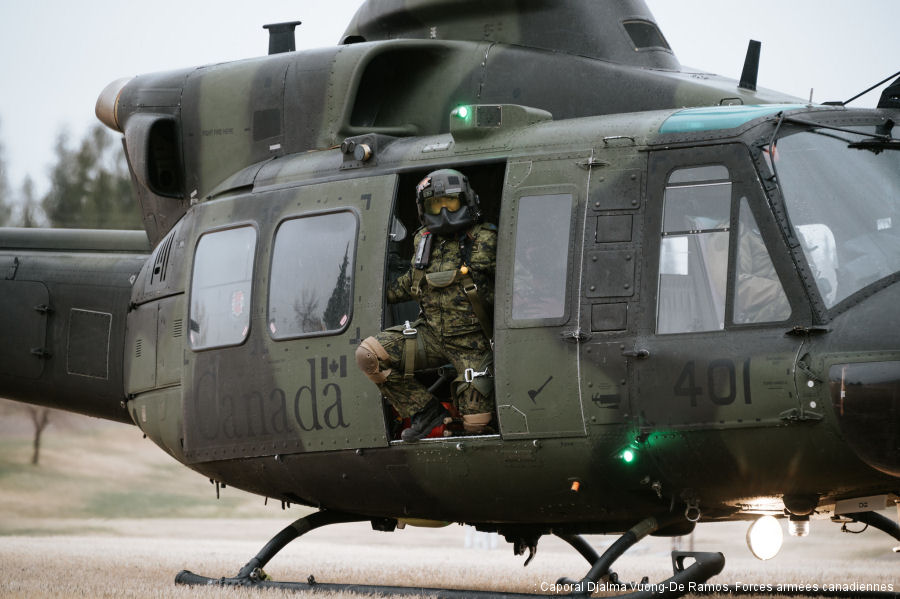

    Ingenio Part of Canadian CH-146 GLEE Upgrade, 05-Oct-22 : #Griffon Bell selects Ingenio Aerospace avionics products for the CH-146 Griffon Limited Life Extension (GLEE) Project to upgrade 85 helicopters of the Royal Canadian Air Force (RCAF) through 2031 covering replacement of avionics and engines

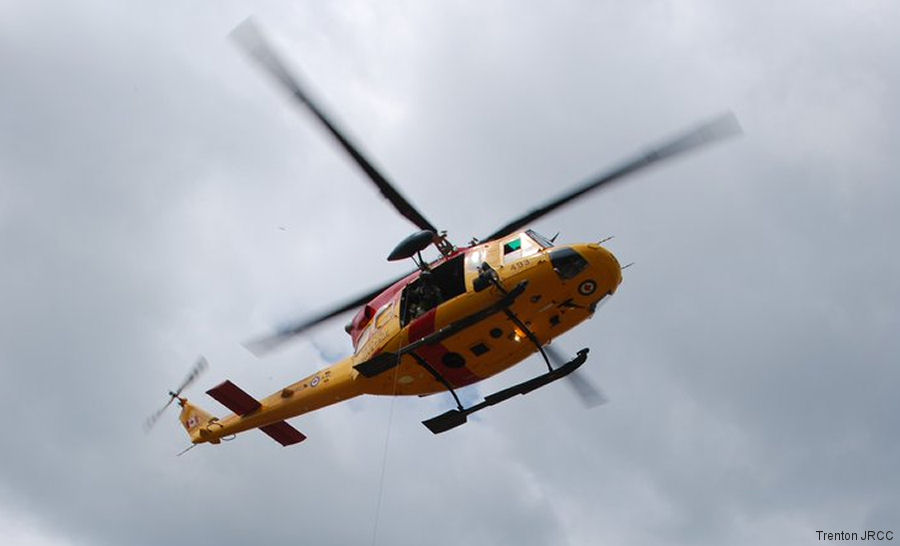

    Griffon Rescues Stranded Canoeists, 10-Aug-20 : #canoeists RCAF CH-146 Griffon from Trenton 424 Transport and Rescue Squadron successfully evacuated two stranded canoeists on an island at Coveo Lake, Ontario

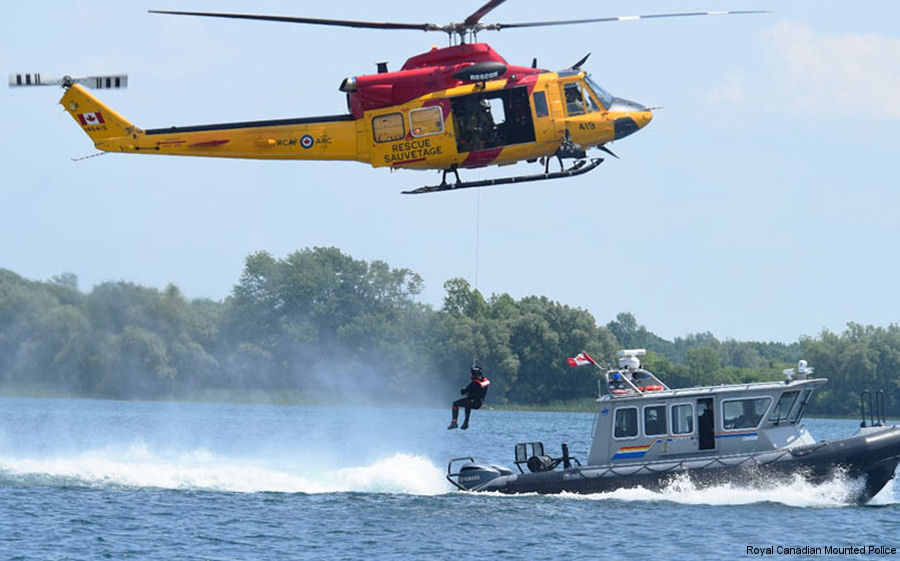

    Griffon Rescue at Thousand Islands, 25-Jul-20 : #Griffon Royal Canadian Mounted Police (RCMP) marine patrol Detachment at Thousand Islands near the Canadian-US border completed training exercise with a Bell CH-146 Griffon of the Royal Canadian Air Force (RCAF) 424 Transport and Rescue Squadron

        More News ...


    Specifications


    Engine: 2 x PW C PT6T-3BE 1800 shp
    Capacity: 3 + 10
    Length: (m) 17.1
    Height: (m) 4.6
    Blades: 4
    Rotor diam.: (m) 14
    Disc area: (m2) 154
    Weight: (kgs)     Max: 5300
    Speed: (km/h) Cruise: 220     Max: 260
    Range: (km) 650
    Ceiling: (m)
    Rate/Climb: (m/min)
    blueprints


    List of Operators of Bell CH-146 Griffon


    From Organisation with model CH-146 Griffon
    1986
    canada Bell Helicopter Canada
        412 1986/
    1994
    canada Bell Helicopter Canada
        100 1994/98
    1995
    canada Canadian Armed Forces
        100 1995/

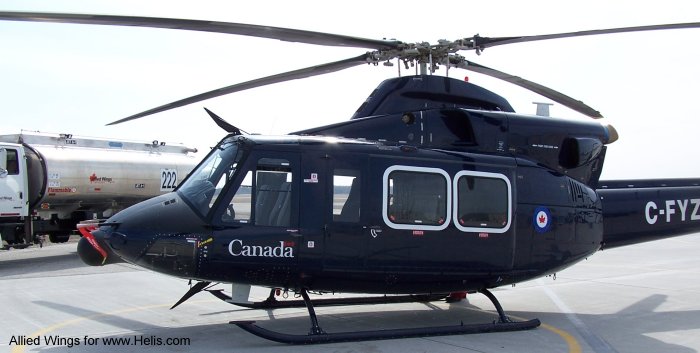

    2007
    canada Allied Wings Limited
        9 2007/
    Construction Numbers on database of CH-146 Griffon

    100ch-146
