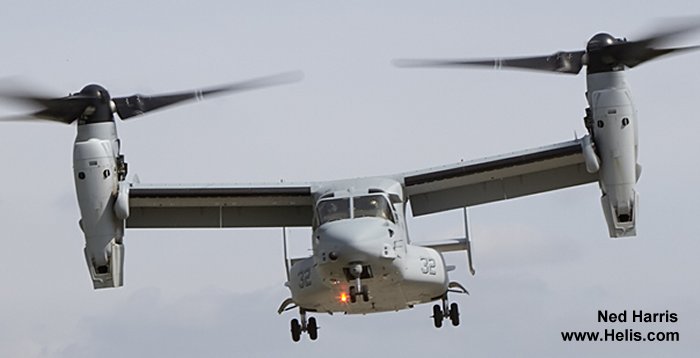

    Bell MV-22B Osprey

    1999









    Production model ordered for USMC as MV-22B. First 22 airframes (c/n D0011/24, D0026/33) built as Low Rate Initial Production (LRIP) MV-22B aircraft in Lots 1-3. Production shifted to Block A airframes, c/n D0034-D0069 in Lots 4-7 and continues today through Block B airframes, c/n D0070-onward in Lots 8-12, at present (05/09).




    Specifications


    Engine: 2 x RR T406 / AE 1107C-Liberty 6150 shp
    Capacity: 4 + 24
    Length: (m) 17.5
    Height: (m) 6.73
    Blades: 6
    Rotor diam.: (m) 11.6
    Disc area: (m2) 212
    Weight: (kgs) Empty: 15032     Max: 27400
    Speed: (km/h) Cruise: 445     Max: 510
    Range: (km) 1600
    Ceiling: (m) 7600
    Rate/Climb: (m/min) 708
    blueprints


    List of Operators of Bell MV-22B Osprey


    From Organisation with model MV-22B Osprey
    2000
    usa US Marine Corps
        V-22 Osprey 2000/
    2005
    usa US Air Force
        V-22 Osprey 2005/
    2020

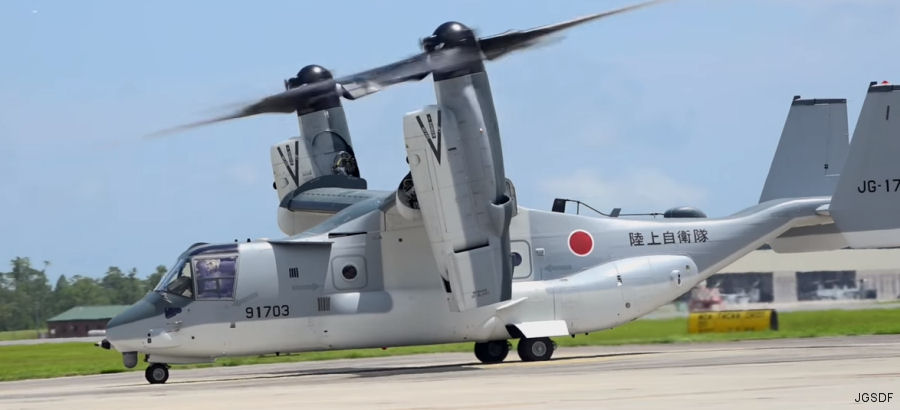

    japan Japan Ground Self-Defense Force
        V-22 Osprey 2020/
    Construction Numbers on database of MV-22B Osprey

    293mv-22b
