  • Del'd: 79 - 1970 to present






    • US Air Force UH-1N
    • US Air Force UH-1N
    • US Air Force UH-1N

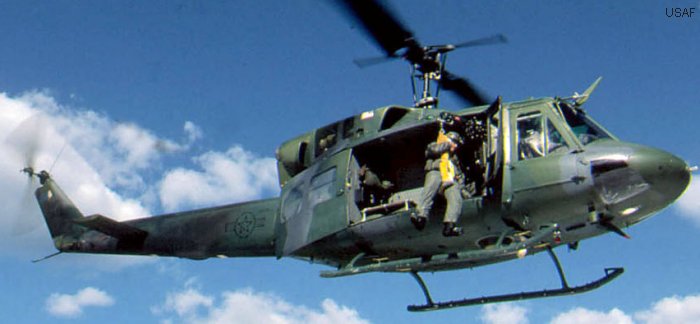

    The Twin Huey entered the Air Force inventory in 1970 to provide search and rescue capabilities but soon expanded to include missile sites support, VIP and air adviser operations. They are assigned worldwide and eventually replaced both the HH-1H and UH-1F single engine Iroquois

    68-10772/10776 : UH-1N : c/n 31001/31005
    69-6600/6670 : UH-1N : c/n 31006/31076
    69-7536/7538 : UH-1N : c/n 31077/31079

    70-15650/15699 : Canadians CH-135 : c/n 32001/50
    73-22054/22055 : Tunisia UH-1N : c/n 31442/43

    On August 1st 2014, the 3 remaining squadrons flying the UH-1N in support of the USAF intercontinental ballistic missile (ICBM) force ( 37th HS, 40th HS and 54th HS ) were merge into a single unified command, based at FE Warren AFB, Wyoming named 20th Air Force Helicopter Operations Group (20th AF HOG).

    Replacement:

    On 2011, with 62 of them still in service, USAF launches a competitive bidding process for a 93 new helicopters request known as the Common vertical lift support platform ( CVLSP ) programme. The five most likely helicopters competing are at least 50% larger than the UH-1N, ranging from the 6,800kg AgustaWestland AW139M to the 22,700kg Boeing HH-47. Falling in between are the Bell UH-1Y, Sikorsky UH-60M and the Eurocopter EC725. But the CVLSP was killed in the Pentagon fiscal 2013 budget proposal and USAF meant to received up to 30 recently retired ex USMC UH-1Ns and a program to modernize all surviving aircraft was expected to begin by 2015.

    In 2014, the Air Force Requirements Oversight Council (AFROC) recommended replacing the UH-1N with US Army UH-60A Black Hawk by upgrade them to the L variant at an estimated cost of $10 million per aircraft. Known as UH-60A2L program, 62 UH-1Ns have to be replace by 72 Black Hawks for $980 million with expected initial deliveries by September 2017 and continue into the early 2020s.

    As of 2017, new candidates includes the HH-60U ( allegedly 85% similar to the HH-60W ) and the MH-139



    One unidentified UH-1N was lost in training on 1973 at Brass Key II near Fort Bragg
    The 72nd HD that was stationed at Langley FL Virginia. The unit was responsible for transportation in support of the Dare County range.range support was the primary mission of the squad on and we typically flew missions to Seymour Johnson AFB then over to the range, we would do off the person ell, fly over to Dare County, fuel, have lunch, then reverse the tip. The secondary mission was via support for ACC HQ. This generally entailed flying O7s and above to the Pentagon and back. We had 6 aircraft assigned,I believe 4 PA and 2 BA UH-1Ns. The ba aircraft came from the deactivated Ramstein unit in 93.The squadron was under the 1st Fighter Wing.the unit was deactivated in 95 o 96.


    @ (optional)     Send

    Units


    YearsUnitsbold : Current base of the Unit
    2005/    413 FLTS Eglin AFB
    Duke Field
    1998/    40th HS Malmstrom AFB
    1998/    37th HS Francis E. Warren AFB
    1994/126th SOS Duke Field
    Hurlburt Field
    1994/    512th RQS Kirtland AFB
    1993/    36 RQS Fairchild AFB
    1993/    459th ASJP Yokota Air Base
    1993/    54th HS Minot AFB
    1985/8748th RQSHomestead AFB
    1982/1240 FTS Eglin AFB
    1979/87304 RQS Portland International Airport
    1977/9358th MASDE Ramstein AFB
    1976/8520th SOSHurlburt Field
    1975/0776th HSVandenberg AFB
    Hickam AFB
    1975/91459th ASScott AFB
    Andrews AFB
    1975/8867 ARRSUK RAF Woodbridge
    1975/856515 OMSEdwards AFB
    1973/9837th ARRS
    1971/911550 ATTWKirtland AFB
    Hill AFB
    1971/737th SOSDE Rhein-Main
    DE Ramstein AFB
    1971/7220th SOSVN Cam Ranh
    1970/8840th ARRSTH Khorat
    TH Nakhon Phanom
    TH Udorn Air Base
    1970/    1st HS Andrews AFB
