  • 1964

    Frigate Garcia class

    Improved Bronstein class design of Destroyer Escorts (DE) modified to carry a LAMPS SH-2 Seasprite helicopter. They used to have two fixed Mk37 torpedos launchers on the stern which were later removed. They were reclassified as Frigates (FF) in 1975. Garcias were extensively used as testbeds of new systems for later classes

        Derivatives / Succeeded by
    US Knox class 1965
                            ES FFG Baleares class 1973
                            TH Phutthayotfa Chulalok class 1994
                            TW Chi Yang class 1999
    US FFG Brooke class 1966
                            US FFG Oliver Hazard Perry class 1975
                                                    US FFG Oliver Hazard Perry long-hull class 1982
                                                                            AU FFG Adelaide class 1980
                                                                            ES FFG Santa Maria class 1986
                                                                            TW FFG Cheng Kung class 1993
                                                    TR FFG G class 1997


    Login to Edit

    2624light (tn)
    126.34length (m)
    13.44beam (m)
    7.47draught (m)
    27max speed (knots)
    2Naval Engine boilers
    1Naval Engine steam turbines
    2Naval Gun Mark 12 5/38 inch (127 mm)
    1Torpedo Launchers Mk 16 8-cell ASROC
    2Torpedo Launchers Mk 32 triple-tube 324mm


    Login to Edit

        Typical Max
    US US Navy Gyrodyne DSN / QH-50 DASH 01
    US US Navy Kaman Seasprite 11

    The Max option implies only aircraft of this model onboard


    Login to Edit

    US Avondale Shipyard - 3
    US Bath Iron Works - 1
    US Bethlehem San Francisco - 2
    US Defoe Shipbuilding Company - 3
    US Puget Sound Bridge and Dredging Company - Harbor Island2

    List of Ships

    Login to Edit

        Sorted by Year Filter:     Hide Transfers     Hide deriv.
    USUS NavyFF-1040USS GarciaNIGD19641989
    PK Pakistan Navy F-264 PNS Siaf 19891994

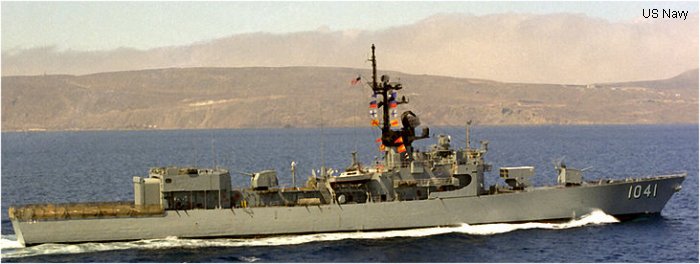

    USUS NavyFF-1041USS BradleyNEDS - 104119651988
    BR Brazilian Navy D30 Pernambuco 19892004
    USUS NavyFF-1043USS Edward McDonnellNCQG19651988
    USUS NavyFF-1044USS BrumbyNERA19651989
    USUS NavyFF-1045USS DavidsonNHGM19651988
    BR Brazilian Navy D28 Paraiba 19892002
    USUS NavyFF-1098USS GloverNFEN19651990
    USUS NavyFFG-1Brooke class USS BrookeNBTE19661988
    PK Pakistan Navy D-162 PNS Khaibar 19891993
    USUS NavyFF-1047USS VogeNZXQ19661989
    USUS NavyFFG-2Brooke class USS RamseyNEFH19671988
    USUS NavyFFG-4Brooke class USS TalbotNZWD19671988
    PK Pakistan Navy D-164 PNS Hunain 19891993
    USUS NavyFFG-5Brooke class USS Richard L. PageNHNG19671988
    PK Pakistan Navy D-163 PNS Tabuk 19891994
    USUS NavyFFG-6Brooke class USS Julius A. Furer19671989
    PK Pakistan Navy D-161 PNS Badr 19891994
    USUS NavyFFG-3Brooke class USS SchofieldNFHK19681988
    USUS NavyFF-1048USS SampleNJOM19681988
    BR Brazilian Navy D29 Parana 19892004
    USUS NavyFF-1049USS KoelschNICE19681989
    PK Pakistan Navy F-267 PNS Siqqat 19891994
    USUS NavyFF-1050USS Albert DavidNMFQ19681988
    BR Brazilian Navy D27 Para 19892008
    USUS NavyFF-1051USS O'CallahanNZKI19681988
    PK Pakistan Navy F-265 PNS Aslat 19891993
    USUS NavyFF-1052Knox class USS KnoxNAAS19691992
    USUS NavyFF-1053Knox class USS RoarkNOUR19691991
    USUS NavyFF-1055Knox class USS HepburnNAAP19691991
    USUS NavyFF-1056Knox class USS Connole19691992
    GR Hellenic Navy F456 HS Ipiros 19922002
    USUS NavyFF-1058Knox class USS MeyerkordNLJY19691991
    USUS NavyFF-1054Knox class USS GrayNVXR19701991
    USUS NavyFF-1057Knox class USS RathburneNVUV19701992
    USUS NavyFF-1059Knox class USS W. S. SimsNWSS19701991
    TR Turkish Navy parts hulk USS W. S. Sims 19991999
    USUS NavyFF-1060Knox class USS Lang19701991
    USUS NavyFF-1061Knox class USS PattersonNTMV19701991
    USUS NavyFF-1062Knox class USS Whipple19701992
    MX Mexican Navy F214 ARM Mina 2002--
    USUS NavyFF-1064Knox class USS LockwoodNIMH19701993
    USUS NavyFF-1067Knox class USS Francis HammondNFHU19701992
    USUS NavyFF-1068Knox class USS VreelandNMAP19701992
    GR Hellenic Navy F458 HS Makedonia 19921998
    USUS NavyFF-1071Knox class USS BadgerNHDT19701991
    USUS NavyFF-1072Knox class USS Blakely19701991
    USUS NavyFF-1075Knox class USS Trippe19701992
    GR Hellenic Navy F457 HS Thraki 19922001
    USUS NavyFF-1077Knox class USS OuelletNDNR19701993
    Phutthayotfa Chulalok class TH Royal Thai Navy FFG 462 HTMS Phutthaloetla Naphalai 1996--
    USUS NavyFF-1063Knox class USS ReasonerNPXQ19711993
    TR Turkish Navy F252 TCG Kocatepe 2002--
    USUS NavyFF-1066Knox class USS Marvin ShieldsNKSG19711992
    MX Mexican Navy F212 ARM Abasolo 1997--
    USUS NavyFF-1070Knox class USS DownesNMFA19711992
    USUS NavyFF-1074Knox class USS Harold E. Holt19711992
    USUS NavyFF-1076Knox class USS FanningNKBP19711993
    TR Turkish Navy F251 TCG Adatepe 19932001
    USUS NavyFF-1078Knox class USS Joseph HewesNELP19711994
    Chi Yang class TW ROCN FF-935 ROCS Lan Yang 1999--
    USUS NavyFF-1079Knox class USS BowenNATM19711994
    TR Turkish Navy F257 TCG Akdeniz 1995--
    USUS NavyFF-1080Knox class USS PaulNOHZ19711992
    TR Turkish Navy parts hulk USS Paul 20002000
    USUS NavyFF-1081Knox class USS AylwinNJHC19711992
    Chi Yang class TW ROCN FF-938 ROCS Ni Yang 1999--
    USUS NavyFF-1082Knox class USS Elmer MontgomeryNQJH19711993
    TR Turkish Navy parts hulk USS Elmer Montgomery 19931993
    USUS NavyFF-1083Knox class USS CookNACI19711992
    Chi Yang class TW ROCN FF-936 ROCS Hae Yang 1999--
    USUS NavyFF-1088Knox class USS BarbeyNTBS19711992
    Chi Yang class TW ROCN FF-937 ROCS Hwai Yang 1999--
    USUS NavyFF-1065Knox class USS SteinNDKB19721992
    MX Mexican Navy F211 ARM Allende 1997--
    USUS NavyFF-1069Knox class USS BagleyNULQ19721991
    USUS NavyFF-1073Knox class USS Robert E. PearyNREP19721992
    Chi Yang class TW ROCN FF-932 ROCS Chi Yang 1999--
    USUS NavyFF-1084Knox class USS McCandlessNIQC19721994
    TR Turkish Navy F254 TCG Trakya 2002--
    USUS NavyFF-1085Knox class USS Donald B. BearyNQUB19721994
    TR Turkish Navy F255 TCG Karadeniz 2002--
    USUS NavyFF-1086Knox class USS Brewton19721992
    Chi Yang class TW ROCN FF-933 ROCS Fong Yang 1999--
    USUS NavyFF-1087Knox class USS KirkNBMR19721993
    Chi Yang class TW ROCN FF-934 ROCS Fen Yang 1999--
    ESSpanish NavyF-71Baleares class BalearesEBFK19732005
    USUS NavyFF-1089Knox class USS Jesse L. BrownNCGP19731994
    EG Egyptian Navy F961 Dumyat 1994--
    USUS NavyFF-1090Knox class USS AinsworthNCQI19731994
    TR Turkish Navy F256 TCG Ege 19992005
    USUS NavyFF-1091Knox class USS MillerNDIK19731991
    TR Turkish Navy parts hulk USS Miller 19991999
    USUS NavyFF-1092Knox class USS Thomas C. HartNTCH19731993
    TR Turkish Navy F253 TCG Zafer 19932014
    USUS NavyFF-1093Knox class USS CapodannoNFVC19731993
    TR Turkish Navy F250 TCG Muavenet 2002--
    ESSpanish NavyF-72Baleares class AndaluciaEBGK19742005
    USUS NavyFF-1094Knox class USS Pharris19741992
    MX Mexican Navy F213 ARM Victoria 1999--
    USUS NavyFF-1095Knox class USS TruettNHDB19741994
    Phutthayotfa Chulalok class TH Royal Thai Navy FFG 461 HTMS Phutthayotfa Chulalok 1994--
    USUS NavyFF-1096Knox class USS ValdezNIDC19741991
    Chi Yang class TW ROCN FF-939 ROCS Yi Yang 1999--
    USUS NavyFF-1097Knox class USS MoinesterNKIA19741994
    EG Egyptian Navy F966 Rasheed 1994--
    ESSpanish NavyF-73Baleares class CataluñaEBJV19752004
    ESSpanish NavyF-74Baleares class AsturiasEBHB19752009
    ESSpanish NavyF-75Baleares class ExtremaduraEBLT19762006
    USUS NavyFFG-7short hull USS Oliver Hazard PerryNOHP19771997
    USUS NavyFFG-8long-hull USS McInerneyNFXM19792010
    PK Pakistan Navy F-260 PNS Alamgir 2010--
    AURANFFG 01Adelaide HMAS AdelaideVKLA19802008
    AURANFFG 02Adelaide HMAS CanberraVKCN19802005
    USUS NavyFFG-9short hull USS WadsworthNASW19802002
    PL Polish Navy 273 ORP General Tadeusz Kosciuszko 2002--
    USUS NavyFFG-10short hull USS DuncanNDBD19801994
    TR Turkish Navy parts hulk USS Duncan 1999--
    USUS NavyFFG-11short hull USS ClarkNJJC19802000
    PL Polish Navy 272 ORP General Kazimierz Pulaski 2000--
    USUS NavyFFG-12short hull USS George PhilipNSGP19802003
    USUS NavyFFG-13short hull USS Samuel Eliot MorisonNSEM19802002
    G class TR Turkish Navy F496 TCG Gokova 2002--
    USUS NavyFFG-17short hull built in USA for Australia as HMAS Adelaide19801980
    Adelaide AU RAN FFG 01 HMAS Adelaide 19802008
    USUS NavyFFG-18short hull built in USA for Australia as HMAS Canberra19801980
    Adelaide AU RAN FFG 02 HMAS Canberra 19802005
    USUS NavyFFG-14short hull USS SidesNJHS19812003
    USUS NavyFFG-15short hull USS EstocinNMJE19812003
    G class TR Turkish Navy F497 TCG Goksu 2003--
    USUS NavyFFG-16short hull USS Clifton SpragueNCAS19811995
    G class TR Turkish Navy F490 TCG Gaziantep 1997--
    USUS NavyFFG-19short hull USS John A. MooreNJAM19812000
    G class TR Turkish Navy F495 TCG Gediz 2000--
    USUS NavyFFG-20short hull USS AntrimNRNA19811996
    G class TR Turkish Navy F491 TCG Giresun 1997--
    USUS NavyFFG-21short hull USS FlatleyNJHF19811996
    G class TR Turkish Navy F492 TCG Gemlik 1998--
    USUS NavyFFG-24short hull USS Jack WilliamsNNJW19811996
    BH Royal Bahrain Naval Force 90 BANS Sabha 1996--
    USUS NavyFFG-26short hull USS GalleryNDPG19811996
    EG Egyptian Navy F916 Taba 1997--
    USUS NavyFFG-22short hull USS FahrionNFGF19821998
    EG Egyptian Navy F901 Sharm El-Sheik 1998--
    USUS NavyFFG-23short hull USS Lewis B. PullerNLBP19821998
    EG Egyptian Navy F906 Toushka 1998--
    USUS NavyFFG-25short hull USS CopelandNRWC19821996
    EG Egyptian Navy F911 Mubarak 19972011
    F911 Alexandria 2011--
    USUS NavyFFG-27short hull USS Mahlon S. TisdaleNMST19821996
    G class TR Turkish Navy F494 TCG Gokceada 1999--
    USUS NavyFFG-28long-hull USS BooneNBON19822022
    USUS NavyFFG-29long-hull USS Stephen W. GrovesNSWG1982--
    USUS NavyFFG-31short hull USS StarkNHPA19821999
    USUS NavyFFG-32long-hull USS John L. HallNJLH1982--
    USUS NavyFFG-34short hull USS Aubrey FitchNAWF19821997
    AURANFFG 03Adelaide HMAS SydneyVKML - 0319832015
    USUS NavyFFG-30short hull USS ReidNSCR19831998
    G class TR Turkish Navy F493 TCG Gelibolu 1999--
    USUS NavyFFG-33long-hull USS JarrettNRCD1983--
    USUS NavyFFG-35short hull built in USA for Australia as HMAS Sydney19831983
    Adelaide AU RAN FFG 03 HMAS Sydney 19832015
    USUS NavyFFG-36long-hull USS UnderwoodNGWU19832013
    USUS NavyFFG-37long-hull USS CrommelinNLKC1983--
    USUS NavyFFG-38long-hull USS CurtsNHOC1983--
    USUS NavyFFG-39long-hull USS DoyleNJHD1983--
    USUS NavyFFG-41long-hull USS McCluskyNMDK1983--
    USUS NavyFFG-42long-hull USS KlakringNTBK19832013
    USUS NavyFFG-43long-hull USS ThachNJST19832013
    USUS NavyFFG-45long-hull USS De WertNRDW1983--
    AURANFFG 04Adelaide HMAS DarwinVKDA - 0419842017
    USUS NavyFFG-40long-hull USS HalyburtonNOTH1984--
    USUS NavyFFG-44long-hull built in USA for Australia as HMAS Darwin19841984
    Adelaide AU RAN FFG 04 HMAS Darwin 19842017
    USUS NavyFFG-46long-hull USS RentzNGSR19842014
    USUS NavyFFG-47long-hull USS NicholasNSVN19842014
    USUS NavyFFG-48long-hull USS VandegriftNAAV19842015
    USUS NavyFFG-49long-hull USS Robert G BradleyNRGB19842014
    USUS NavyFFG-50long-hull USS TaylorNJJT19842015
    USUS NavyFFG-51long-hull USS GaryNDAG19842015
    USUS NavyFFG-52long-hull USS CarrNCAR19852013
    USUS NavyFFG-53long-hull USS HawesNREH19852010
    USUS NavyFFG-54long-hull USS FordNPOF19852013
    USUS NavyFFG-55long-hull USS ElrodNHTE19852015
    USUS NavyFFG-56long-hull USS SimpsonNRWS19852015
    USUS NavyFFG-57long-hull USS Reuben JamesNNRJ19862013
    USUS NavyFFG-58long-hull USS Samuel B. RobertsNSBR19862015
    ESSpanish NavyF-81Sta Maria Santa MariaEBFL1986--
    USUS NavyFFG-59long-hull USS KauffmanNJLK19872015
    USUS NavyFFG-60long-hull USS Rodney M. DavisNRMD19872015
    ESSpanish NavyF-82Sta Maria VictoriaEBFM1987--
    USUS NavyFFG-61long-hull USS IngrahamNDNI19892014
    ESSpanish NavyF-83Sta Maria NumanciaEBFN1989--
    ESSpanish NavyF-84Sta Maria Reina SofiaEBFO1990--
    AURANFFG 05Adelaide HMAS MelbourneVKLP - 0519922019
    AURANFFG 06Adelaide HMAS NewcastleVLNC - 0619932019
    TWROCNPFG-1101Cheng Kung class ROCS Cheng Kung1993--
    ESSpanish NavyF-85Sta Maria NavarraEBFP1994--
    ESSpanish NavyF-86Sta Maria CanariasEBFQ1994--
    TWROCNPFG-1103Cheng Kung class ROCS Cheng Ho1994--
    TWROCNPFG-1105Cheng Kung class ROCS Chi Kuang1995--
    TWROCNPFG-1106Cheng Kung class ROCS Yueh Fei1996--
    TWROCNPFG-1107Cheng Kung class ROCS Tzu I1997--
    TWROCNPFG-1108Cheng Kung class ROCS Pan Chao1997--
    TWROCNPFG-1109Cheng Kung class ROCS Chang Chien1998--
    TWROCNPFG-1110Cheng Kung class ROCS Tian Dan2004--

    143 units


    Login to Edit

    1961-jan-22OrderedUS FF-1040 USS Garcia
    1961-jan-28OrderedUS FF-1098 USS Glover
    1962-jan-3OrderedUS FF-1043 USS Edward McDonnell
    1962-jan-3OrderedUS FF-1044 USS Brumby
    1962-jan-3OrderedUS FF-1045 USS Davidson
    1962-oct-16Laid downUS FF-1040 USS Garcia as DE
    1963-mar-20OrderedUS FF-1048 USS Sample
    1963-mar-20OrderedUS FF-1050 USS Albert David
    1963-mar-21OrderedUS FF-1047 USS Voge
    1963-mar-21OrderedUS FF-1049 USS Koelsch
    1963-mar-21OrderedUS FF-1051 USS O'Callahan
    1963-apr-1Laid downUS FF-1043 USS Edward McDonnell as DE
    1963-jun-17Laid downUS FF-1041 USS Bradley as DE
    1963-jul-19Laid downUS FF-1048 USS Sample as DE
    1963-jul-29Laid downUS FF-1098 USS Glover
    1963-aug-1Laid downUS FF-1044 USS Brumby as DE
    1963-sep-30Laid downUS FF-1045 USS Davidson as DE
    1963-oct-31LaunchedUS FF-1040 USS Garcia
    1963-nov-21Laid downUS FF-1047 USS Voge as DE
    1964-feb-15LaunchedUS FF-1043 USS Edward McDonnell
    1964-feb-19Laid downUS FF-1049 USS Koelsch as DE
    1964-feb-19Laid downUS FF-1051 USS O'Callahan as DE
    1964-mar-26LaunchedUS FF-1041 USS Bradley
    1964-apr-28LaunchedUS FF-1048 USS Sample
    1964-apr-29Laid downUS FF-1050 USS Albert David as DE
    1964-oct-2LaunchedUS FF-1045 USS Davidson
    1964-dec-19LaunchedUS FF-1050 USS Albert David
    1964-dec-21CommissionedUS FF-1040 USS Garcia
    1965-feb-4LaunchedUS FF-1047 USS Voge
    1965-feb-15CommissionedUS FF-1043 USS Edward McDonnell
    1965-apr-17LaunchedUS FF-1098 USS Glover
    1965-may-15CommissionedUS FF-1041 USS Bradley
    1965-jun-8LaunchedUS FF-1049 USS Koelsch
    1965-jul-26LaunchedUS FF-1044 USS Brumby
    1965-aug-5CommissionedUS FF-1044 USS Brumby
    1965-oct-20LaunchedUS FF-1051 USS O'Callahan
    1965-nov-13CommissionedUS FF-1098 USS Glover as research ship AGDE-1
    1965-dec-1CommissionedUS FF-1045 USS Davidson
    1966-nov-25CommissionedUS FF-1047 USS Voge
    1967-jun-10CommissionedUS FF-1049 USS Koelsch commissioned at Boston Naval Shipyard
    1968US FF-1040 USS Garcia FRAM I and FRAM II
    1968-mar-23CommissionedUS FF-1048 USS Sample
    1968-jul-13CommissionedUS FF-1051 USS O'Callahan
    1968-augUS FF-1049 USS Koelsch Departed Newport RI for North Atlantic operations. 4 month cruise.
    1968-oct-19CommissionedUS FF-1050 USS Albert David
    1968-dec-19US FF-1049 USS Koelsch Returned to Newport RI from No. Atlantic
    1972RefitUS FF-1051 USS O'Callahan for LAMPS operations and attained a number of firsts in LAMPS usage
    1975-jun-30US FF-1041 USS Bradley reclassified as FF
    1975-jun-30US FF-1040 USS Garcia Reclassified as FF
    1975-jun-30US FF-1043 USS Edward McDonnell Reclassified as FF
    1975-jun-30US FF-1044 USS Brumby Reclassified as FF
    1975-jun-30US FF-1045 USS Davidson reclassified as FF
    1975-jun-30US FF-1047 USS Voge reclassified as FF
    1975-jun-30US FF-1048 USS Sample reclassified as FF
    1975-jun-30US FF-1049 USS Koelsch reclassified as FF
    1975-jun-30US FF-1050 USS Albert David reclassified as FF
    1975-jun-30US FF-1051 USS O'Callahan reclassifed as FF
    1975-jun-30US FF-1098 USS Glover reclassified as AGFF-1
    1979US FF-1098 USS Glover reclassified as FF-1098
    1984-jul-17AircraftUS FF-1047 USS Voge SH-2F 149744 accident
    1988-sep-23DecommissionedUS FF-1048 USS Sample
    1988-sep-28DecommissionedUS FF-1050 USS Albert David
    1988-sep-30DecommissionedUS FF-1041 USS Bradley
    1988-sep-30DecommissionedUS FF-1043 USS Edward McDonnell
    1988-dec-8DecommissionedUS FF-1045 USS Davidson
    1988-dec-20DecommissionedUS FF-1051 USS O'Callahan
    1989Fate: transferedUS FF-1041 USS Bradley to Brazil as Pernambuco (D 30)
    1989Fate: transferedUS FF-1045 USS Davidson to Brazil as Paraiba (D28)
    1989Fate: transferedUS FF-1048 USS Sample lease to Brazil as Parana (D 29)
    1989Fate: transferedUS FF-1050 USS Albert David to Brazil as Para (D 27)
    1989Fate: transferedUS FF-1051 USS O'Callahan to Pakistan as Aslat (F-265)
    1989-jan-31DecommissionedUS FF-1040 USS Garcia
    1989-jan-31Fate: transferedUS FF-1040 USS Garcia to Pakistan as Siaf (F-264)
    1989-jan-31CommissionedPK F-264 PNS Siaf
    1989-feb-8CommissionedPK F-265 PNS Aslat
    1989-mar-31DecommissionedUS FF-1044 USS Brumby
    1989-apr-15CommissionedBR D29 Parana
    1989-may-31DecommissionedUS FF-1049 USS Koelsch
    1989-may-31Fate: transferedUS FF-1049 USS Koelsch to Pakistan as Siqqat (F-267)
    1989-may-31CommissionedPK F-267 PNS Siqqat
    1989-jul-25CommissionedBR D28 Paraiba
    1989-aug-23DecommissionedUS FF-1047 USS Voge
    1989-sep-18CommissionedBR D27 Para
    1989-sep-25CommissionedBR D30 Pernambuco
    1990-jun-15DecommissionedUS FF-1098 USS Glover
    1992-sep-15StruckUS FF-1043 USS Edward McDonnell
    1992-nov-20StruckUS FF-1098 USS Glover
    1992-dec-15StruckUS FF-1047 USS Voge
    1993-dec-11DecommissionedPK F-265 PNS Aslat
    1994DecommissionedPK F-264 PNS Siaf
    1994Fate: scrappedPK F-265 PNS Aslat Hong Kong
    1994-mar-29Fate: scrappedPK F-264 PNS Siaf
    1994-apr-15Fate: scrappedUS FF-1098 USS Glover at Wilmington, NC
    1994-jul-1StruckUS FF-1044 USS Brumby
    1994-aug-19DecommissionedPK F-267 PNS Siqqat
    1994-sepFate: scrappedPK F-267 PNS Siqqat Hong Kong
    2001-jan-19Fate: scrappedUS FF-1047 USS Voge Philadelphia, Pa
    2002-jul-26DecommissionedBR D28 Paraiba
    2002-aug-21Fate: scrappedUS FF-1043 USS Edward McDonnell
    2004-mar-11DecommissionedBR D30 Pernambuco
    2004-novDecommissionedBR D29 Parana
    2005Fate: sunkBR D28 Paraiba being towed to India to be scrapped
    2005Fate: scrappedBR D29 Parana Arusha Shipping
    2008-nov-12DecommissionedBR D27 Para

    share     facebook     twitter     linkedin
